Fig. 3
From: Laser diagnostic investigation on flame-assisted spray synthesis of NMC811 battery materials

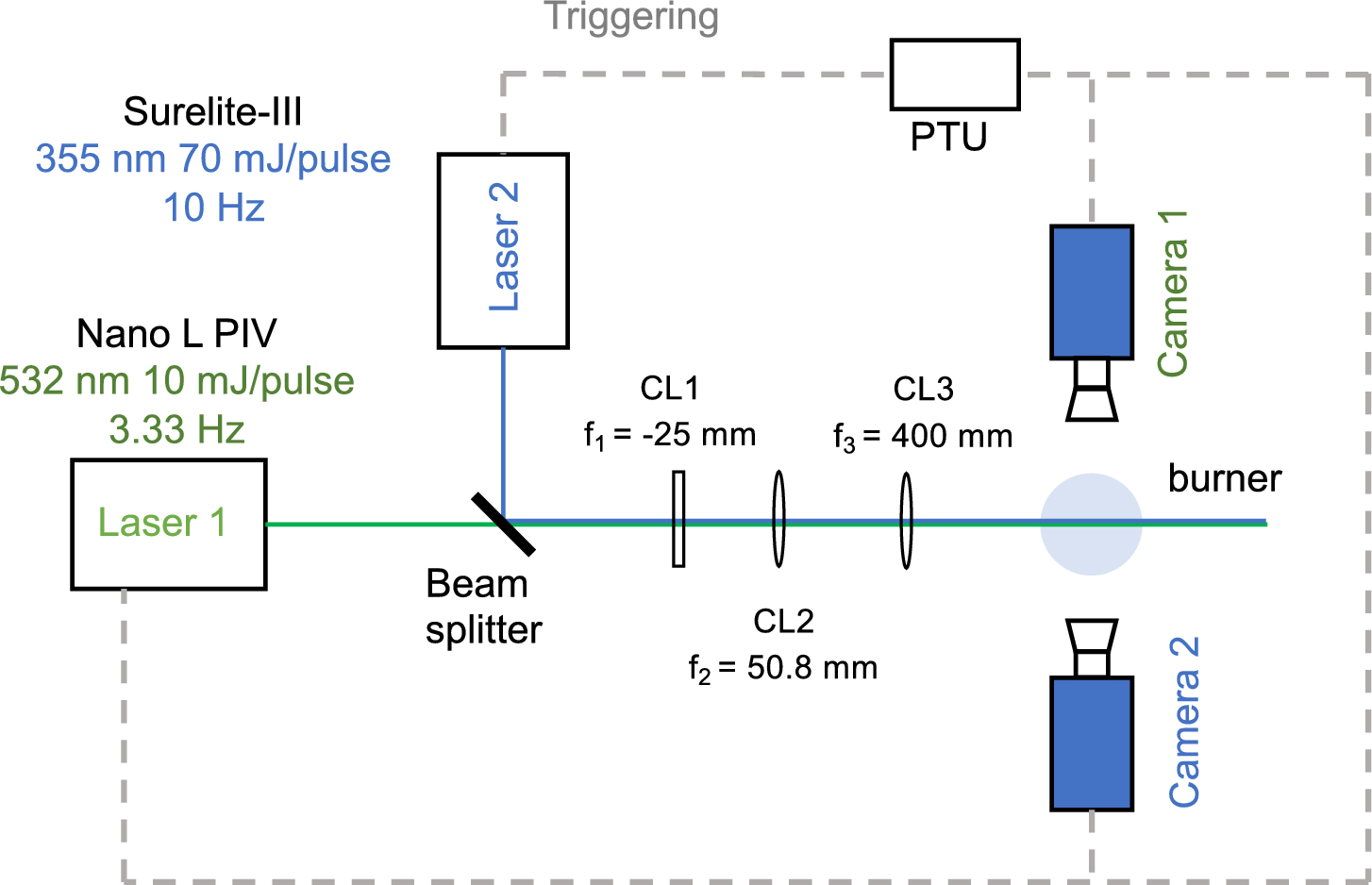

Experimental setup for simultaneous Mie scattering and PS-LIBS signal collection, including triggering scheme for two cameras and Nano L PIV laser, using the clock master from the Surelite laser CL1: concave cylindrical lens; CL2 and 3: convex cylindrical lens. Camera 1: Andor iXon camera for Mie scattering; Camera 2: Nanostar camera for PS-LIBS.
