Fig. 1 | Scientific Reports

Fig. 1

From: Identification of a super enhancer associated gene signature for the prognosis prediction and regulatory mechanism exploration in breast cancer

Fig. 1The alternative text for this image may have been generated using AI.

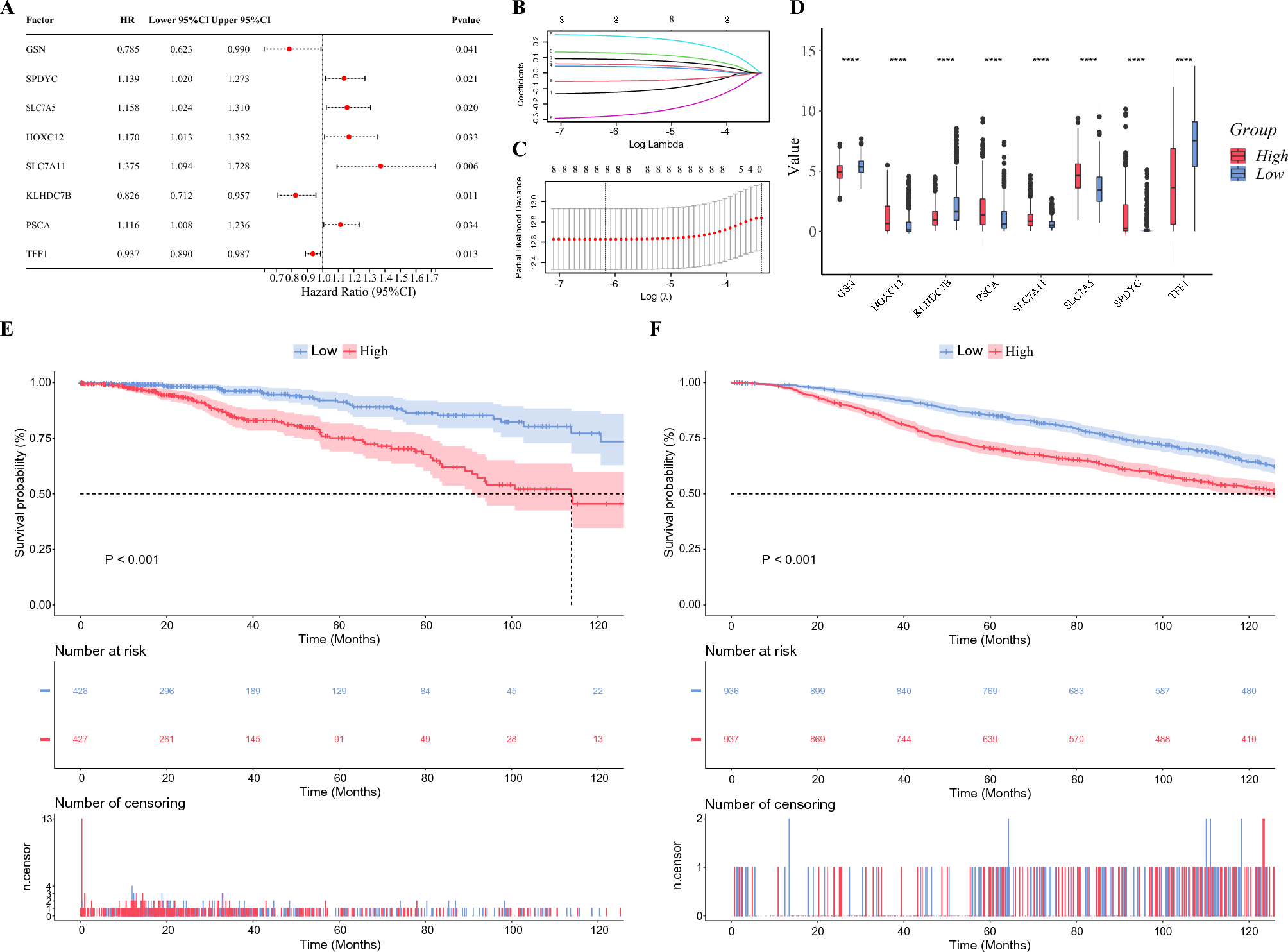

Identification of SE-associated genes in BC. (A) Forest plot of statistically significant genes in the univariate Cox regression analysis; (B) Coefficient profiles of SE-associated genes in the least absolute shrinkage and selection operator (LASSO); (C) Identification of the best parameter (lambda) in LASSO; (D) Violin plot of the expression of SE-associated genes in high and low SERS groups; (E) Kaplan–Meier (KM) analysis based on SERS in the training cohort; (F) KM analysis based on SERS in the validation cohort. HR: hazard ratio; CI: confidence interval; high: high-risk group; low: low-risk group; ****:p < 0.0001.
