Fig. 4

From: Tracking copper-zinc and manganese superoxide dismutase in Avicennia marina reveals time-dependent expression of SOD isoforms in response to salt and lead stress

Fig. 4

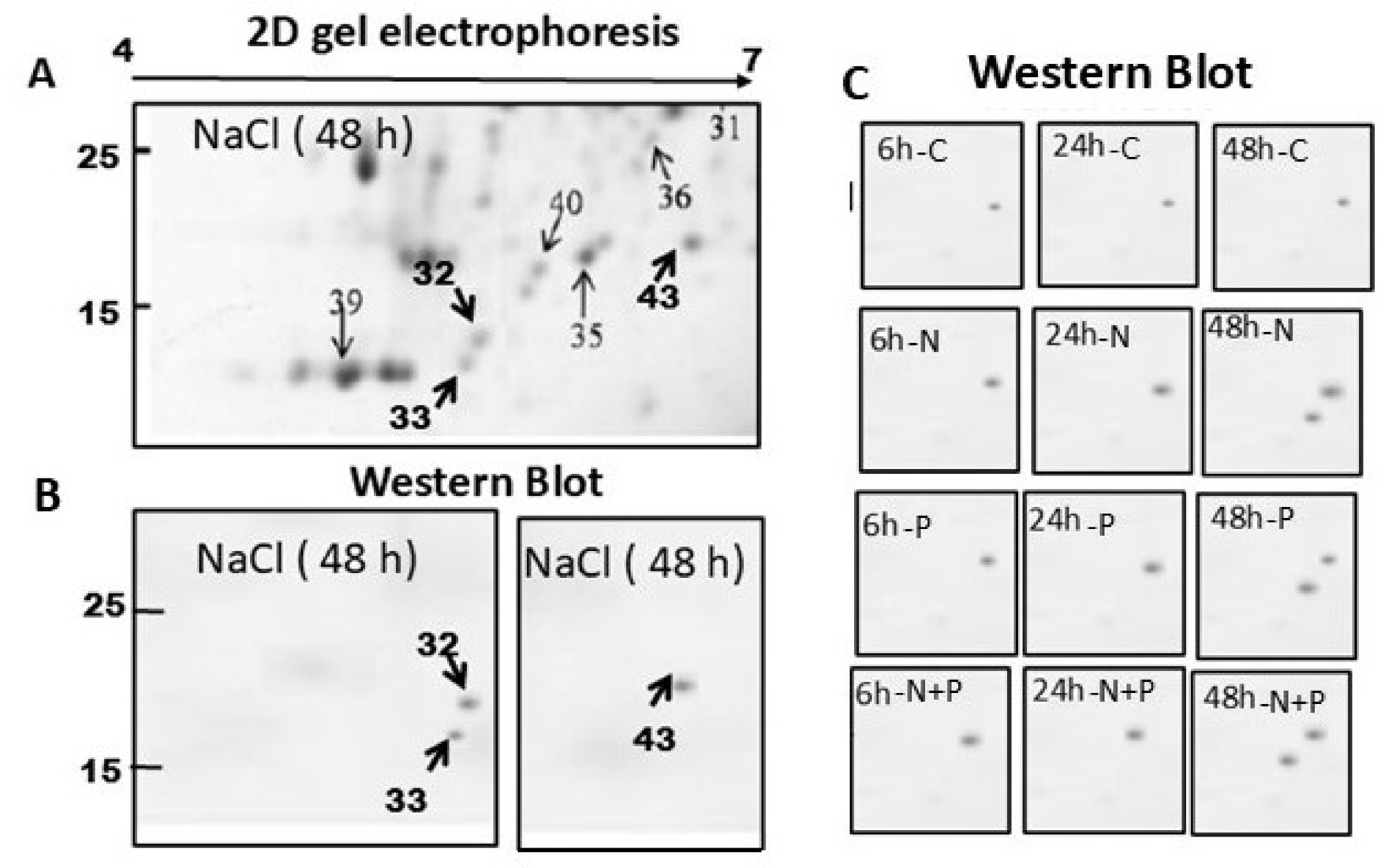

SOD forms in the protein extracted from A. marina seedlings leaves (No treatment) visualized on 2D gels. (A) Sections of 2D gels from 10 to 30 kDa and pI 4–7 are shown. The positions of SOD spots are indicated by arrows. (B) Identification of SOD by Western blotting in the A. marina seedlings treated with NaCL for 48 h. (C) Tracking AmSOD1 forms (HMW- and LMW-spots) on 2D-western blot of control (c) and treated seedlings with NaCL (N), Pb(NO3)2 (P) and NaCl + Pb(NO3)2 (N + P) after 6, 24 and 48 h.
