Fig. 7
From: Soil spring stiffnesses for laterally loaded large diameter rigid caissons

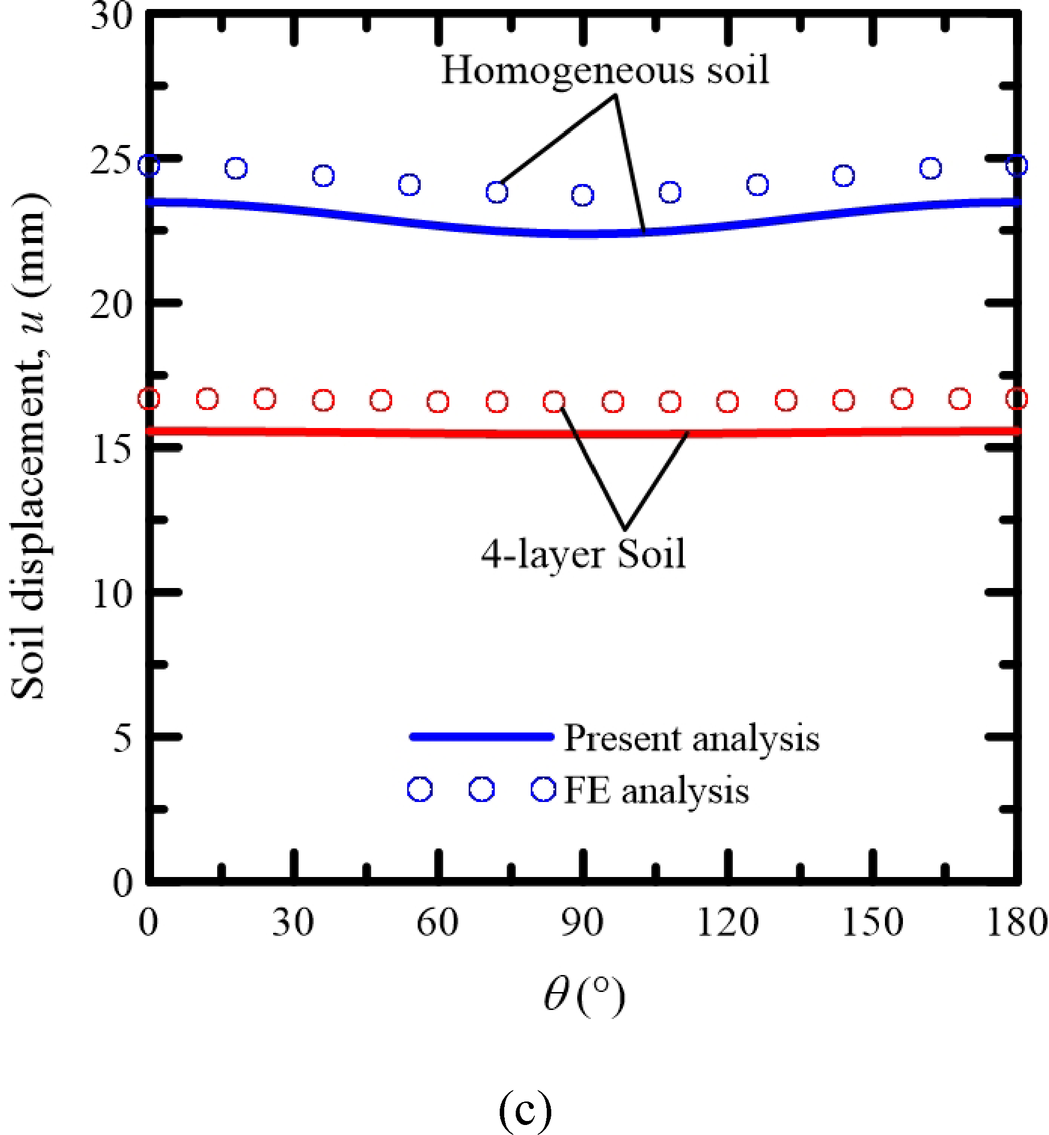

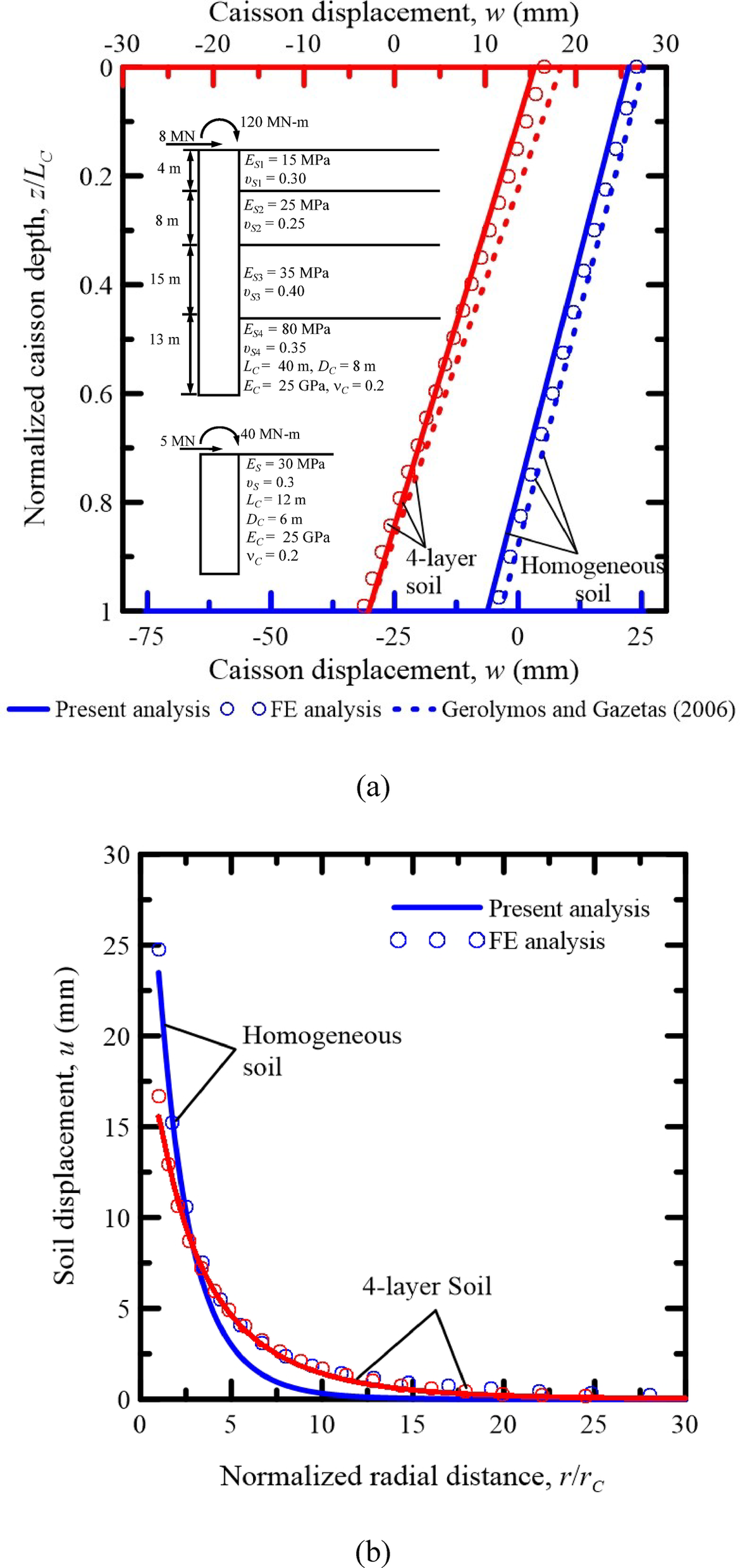

(a) Lateral displacement profiles of caissons in homogeneous (Problem 1) and 4-layer soils (Problem 2), (b) soil displacement at the surface in the direction of applied load, and (c) surface soil displacement at caisson-soil interface along the perimeter of the caisson.
