From: Dysglycaemia and the interaction of chronic and acute glycaemia with mortality post cardiac surgery

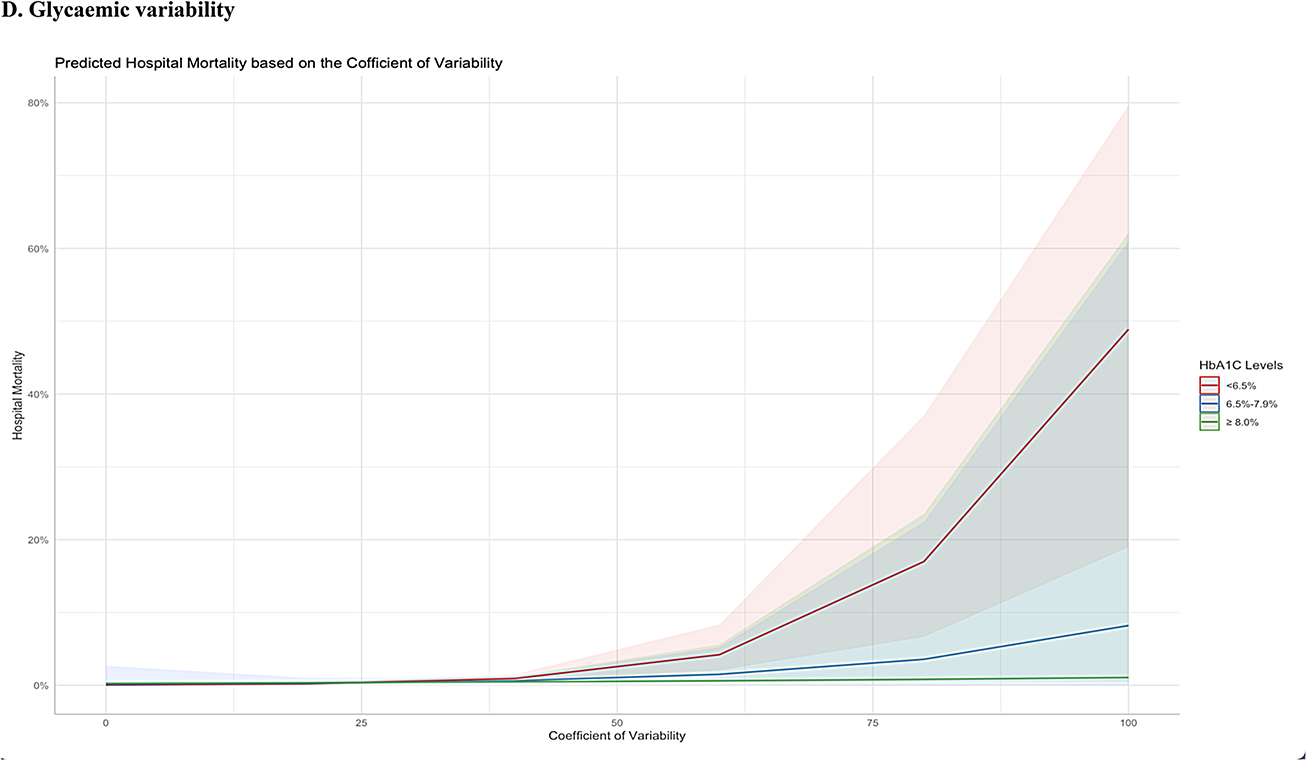

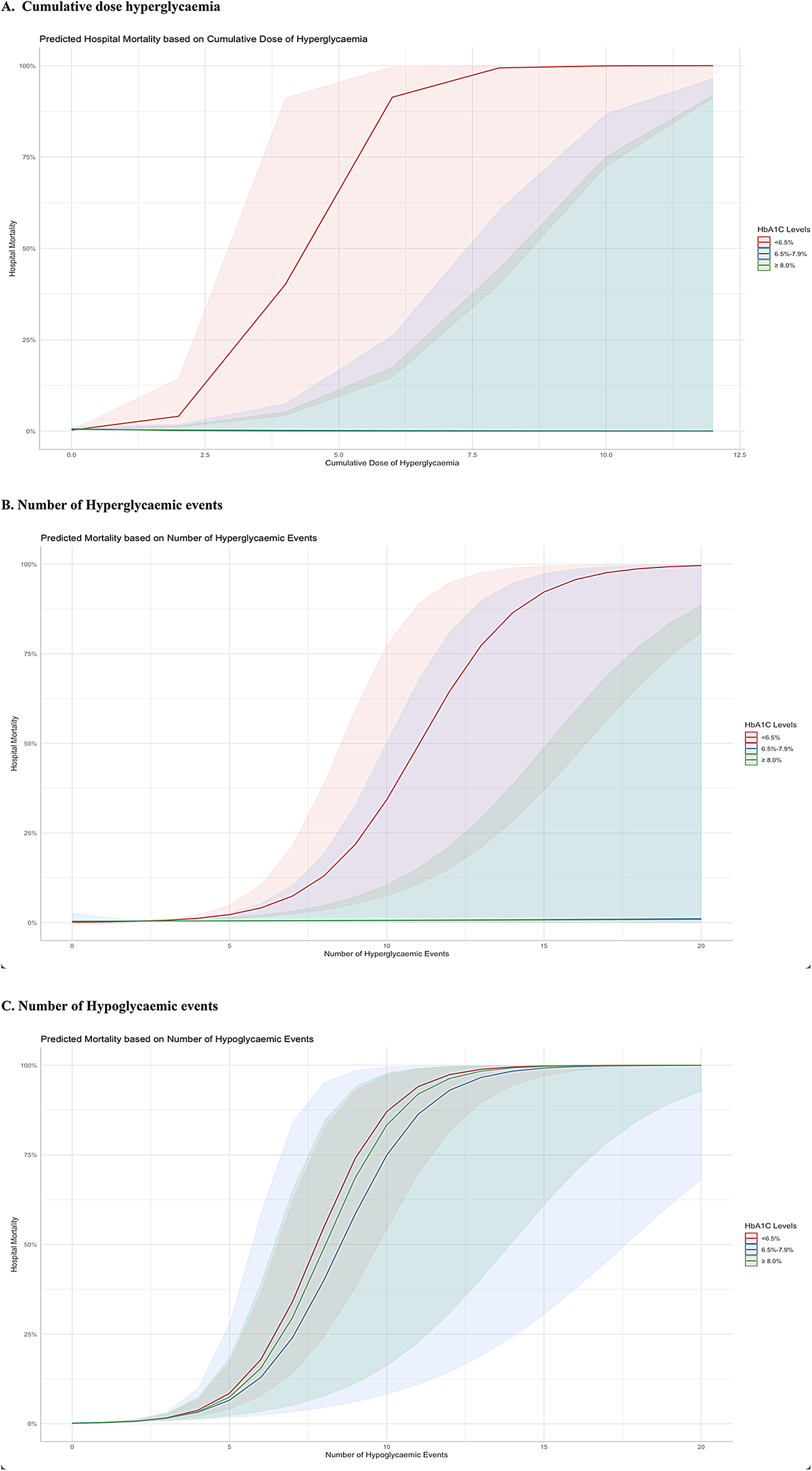

Marginal model predictions (with 95% confidence bands) for in-hospital death for pre-defined chronic glycaemia sub-groups: well controlled (HbA1c <6.5%), adequately controlled (HbA1c 6.5% - 7.9%), and poorly controlled (HbA1c ≥ 8.0%), for (A) Cumulative dose hyperglycaemia (B) Number of Hyperglycaemic events (C) Number of Hypoglycaemic events (D) Glycaemic variability (coefficient of variation).
