From: Dapagliflozin treatment ameliorates oxidative stress, apoptosis and inflammation in tenofovir-induced nephrotoxicity in rats

Fig. 1

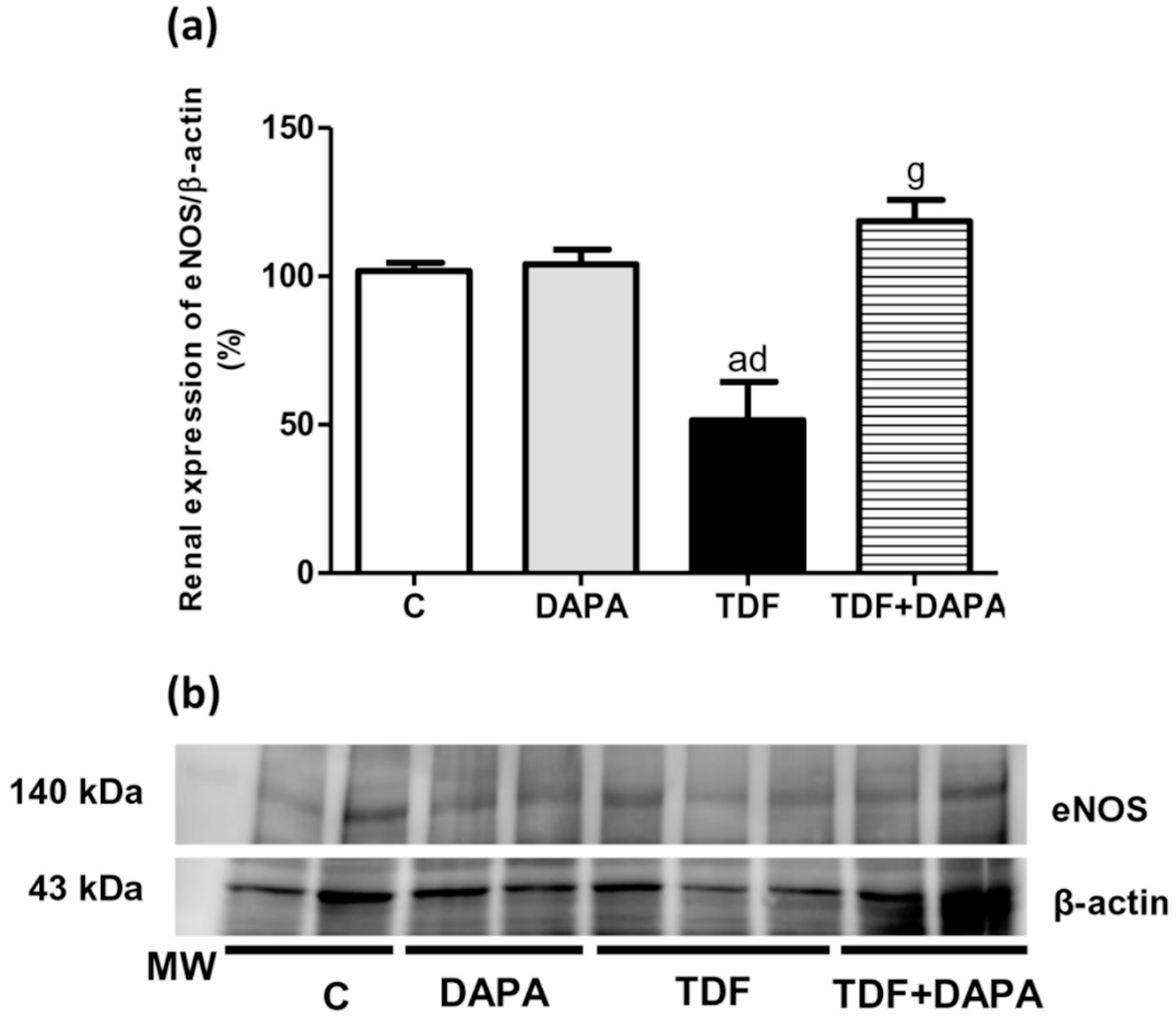

Semiquantitative immunoblotting for eNOS expression in rat kidney tissue. (a) eNOS densitometric analysis of samples from C, DAPA, TDF and TDF + DAPA rats. (b) Representative immunoblots which reacted with anti-eNOS revealing a band of 140 kDa. All Western Blot experiments were performed in biological replicates (n = 6–8 each group) across multiple gels, each with their respective loading controls. Original blots (uncropped images) are presented in the supplementary Fig. 1S in the supplementary files. Values are means ± SEM. ap<0.001 vs. C; dp<0.001 vs. DAPA; gp<0.001 vs. TDF. C, control; DAPA, dapagliflozin; TDF, tenofovir.
