Fig. 7
From: Garden classification of femoral neck fracture using deep-learning algorithm

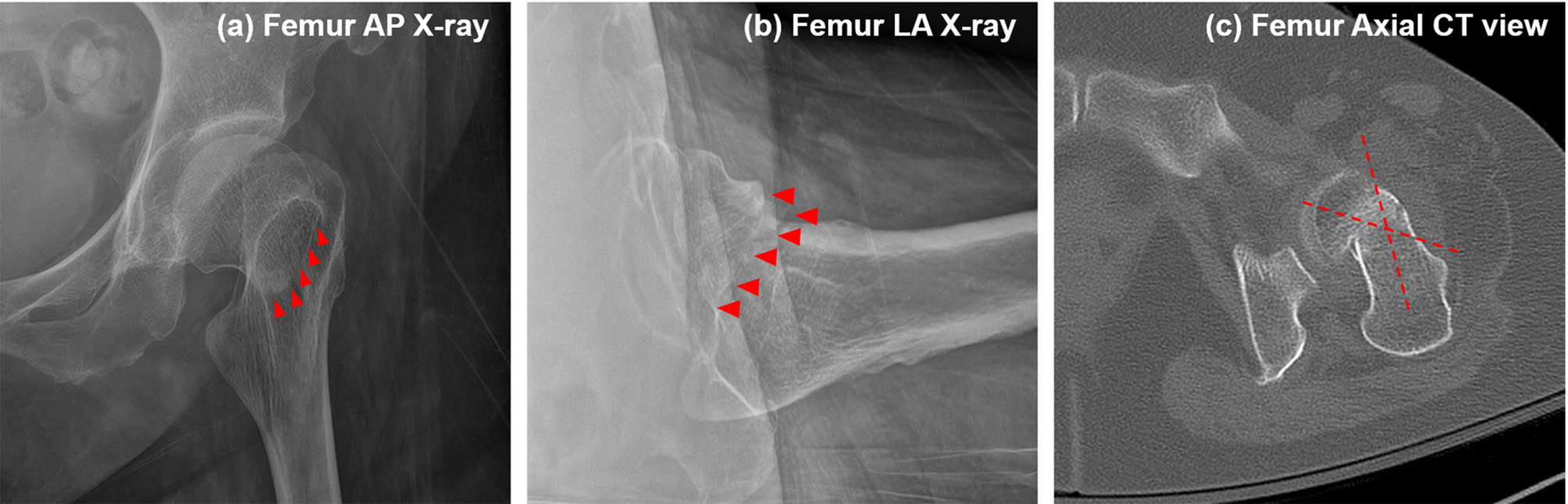

Example for misclassification of femoral neck fractures in X-ray images. Images of a 69-year-old female patient are presented: (a) X-ray anteroposterior (AP) view, (b) X-ray lateral (LA) view, and (c) axial computed tomography (CT) scan. The ensemble model classified the fracture as Garden type IV based on X-ray images of the AP and LA views. However, CT scan evaluation showed the fracture to be Garden type III due to posterior angulation.
