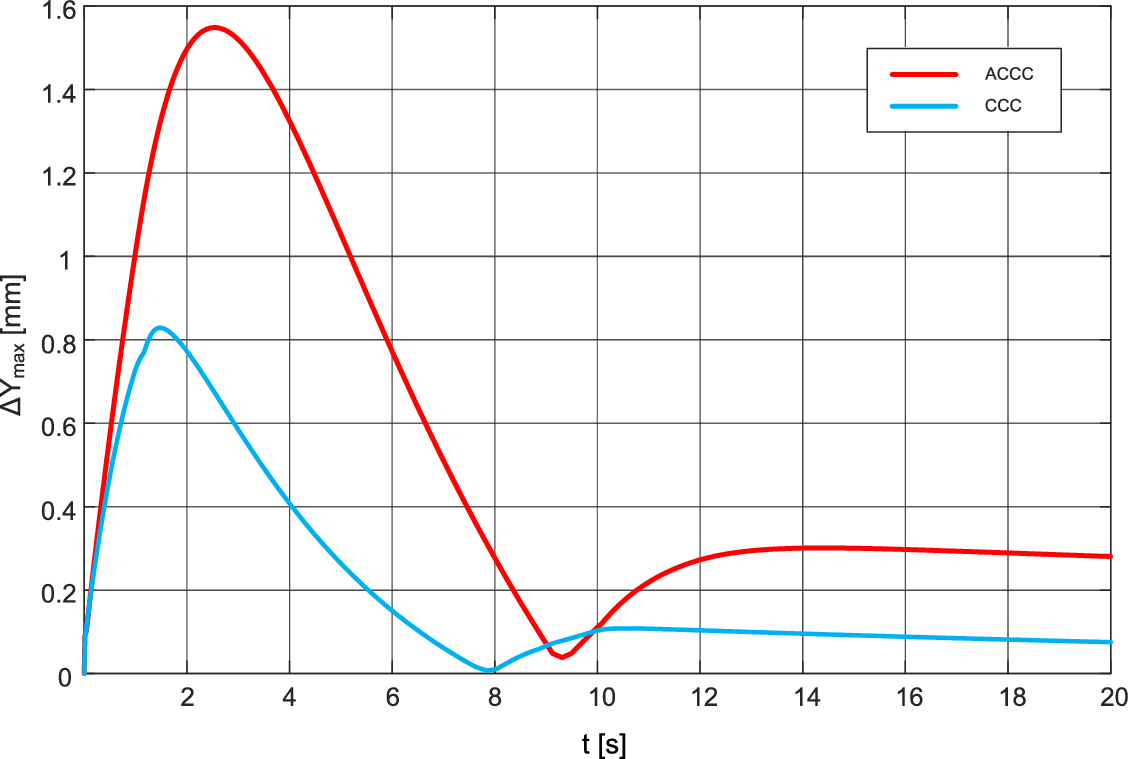

Fig. 8
From: Research on multi-cylinder coordinated coupling synchronous control strategy based on strain energy
Maximum synchronization error comparison. ACCC strategy exhibits a 1.55 mm error, while CCC strategy achieves 0.83 mm error, resulting in a 46.5% error reduction under decaying loads (\(10^5\) to \(10^4\) N over 10 s).
