From: Design of a textile-based UHF RFID sensor for high read range and multilevel diaper moisture sensing

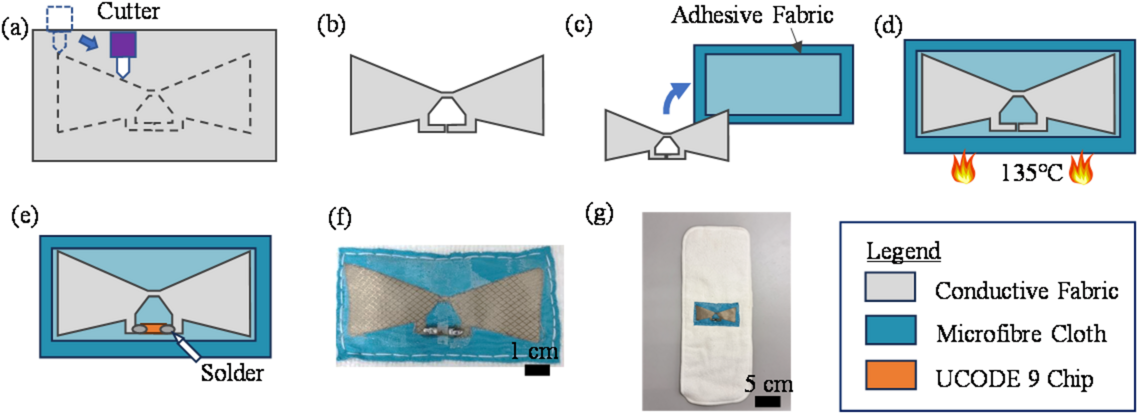

Fabrication processes of the proposed textile antenna: (a) Antenna pattern is cut using Silhouette Portrait. (b) The antenna is obtained. (c) The adhesive fabric is placed on the microfibre cloth. (d) The adhesive fabric is melted using the hot plate to adhere the antenna onto the microfibre cloth. (e) The UCODE 9 chip is soldered onto the textile antenna. (f) Fabricated prototype. (g) The textile antenna is sewn onto the cotton insert.
