From: A novel zinc finger protein gene signature for prognostic prediction, tumor microenvironment characterization, and therapeutic response in uterine corpus endometrial carcinoma

Fig. 2

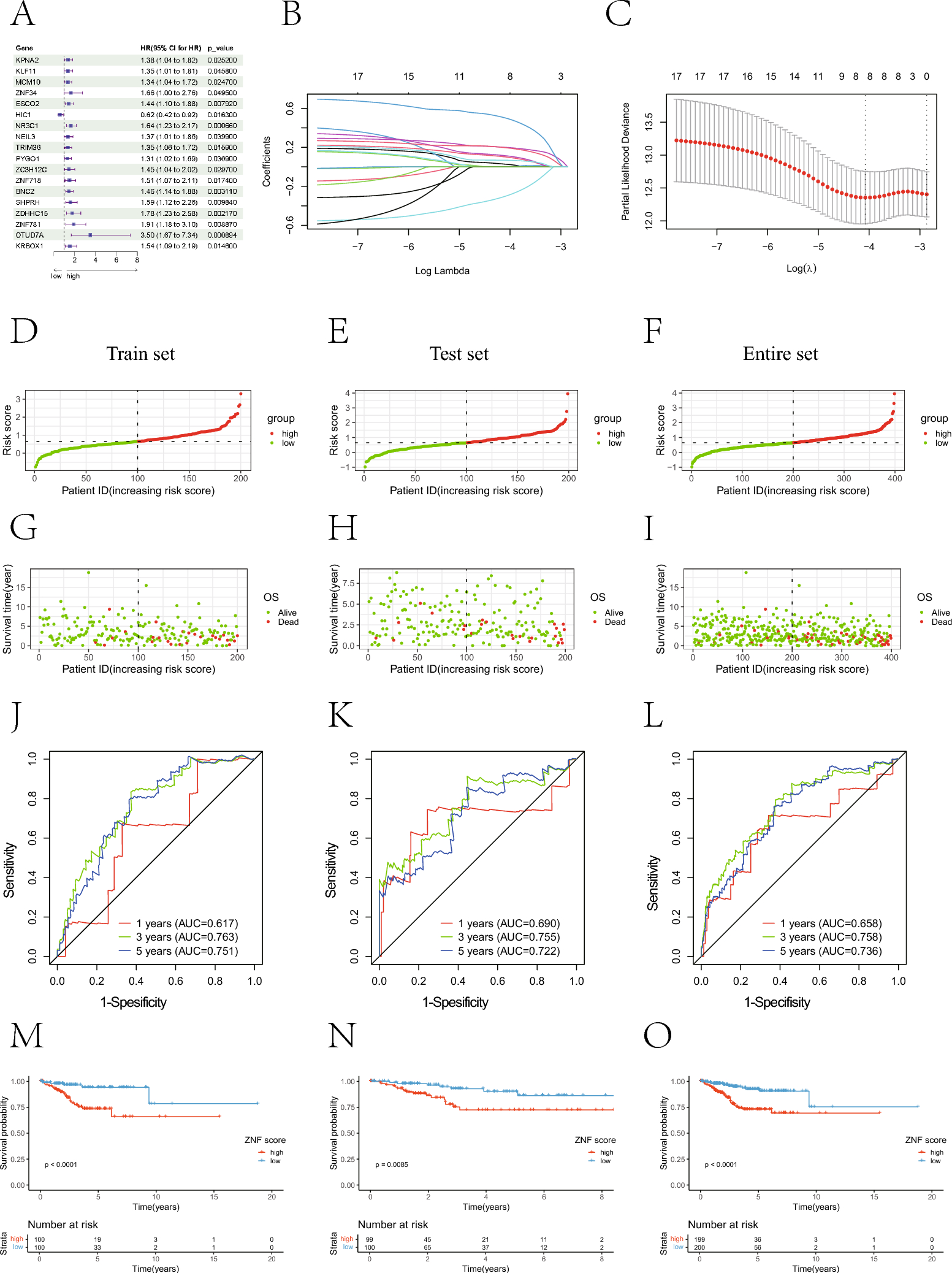

Development of a prognostic signature for UCEC based on 8 ZNF prognostic genes. (A) Risk ratio forest plot shows that eighteen prognosis-related ZNFs, were significantly related to OS of UCEC patients. (B) Figure for LASSO coefficient spectrum of prognostic ZNF family genes. (C) Adjusted parameters of LASSO regression model. (D–F) Exhibition of predictive model based on risk score of the training, test, and entire sets, respectively. (G–I) Survival time and survival status between low-risk and high-risk groups in the training, test, and entire sets, respectively. (J–L) Time-dependent ROC curves of 1-, 3-, and 5-years of UCEC patients in training, test, and entire sets, respectively. (M–O) Kaplan–Meier survival curves of OS between low-risk and high-risk groups in the training, test, and entire sets, respectively.
