Fig. 2
From: SmartERD: a pipeline for referencing subjects to a common peak in the analysis of ERD dynamics

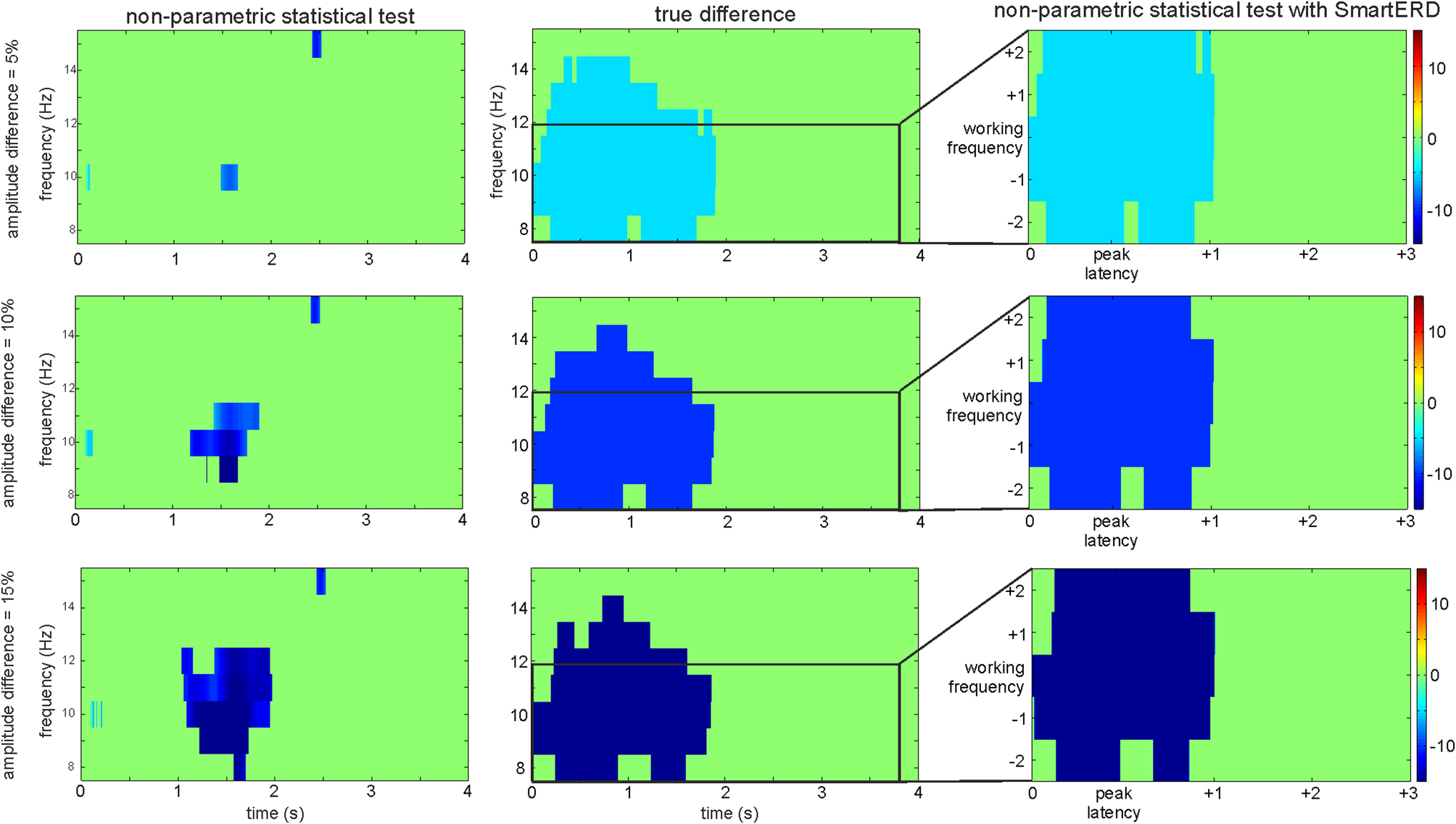

NPCPT results. Significant NPCPT clusters for the original simulated (left panel) and the SmartERD-realigned data (right panel, referring to a 5 Hz frequency band and a 4 s time interval across the individual working frequency and first peak latency, respectively). The central panel shows the real difference for three ERD amplitude differences (5%, 10% and 15%) and noise level 1%.
