Fig. 14
From: The open-source multi-wavelength non-invasive blood glucose sensing system

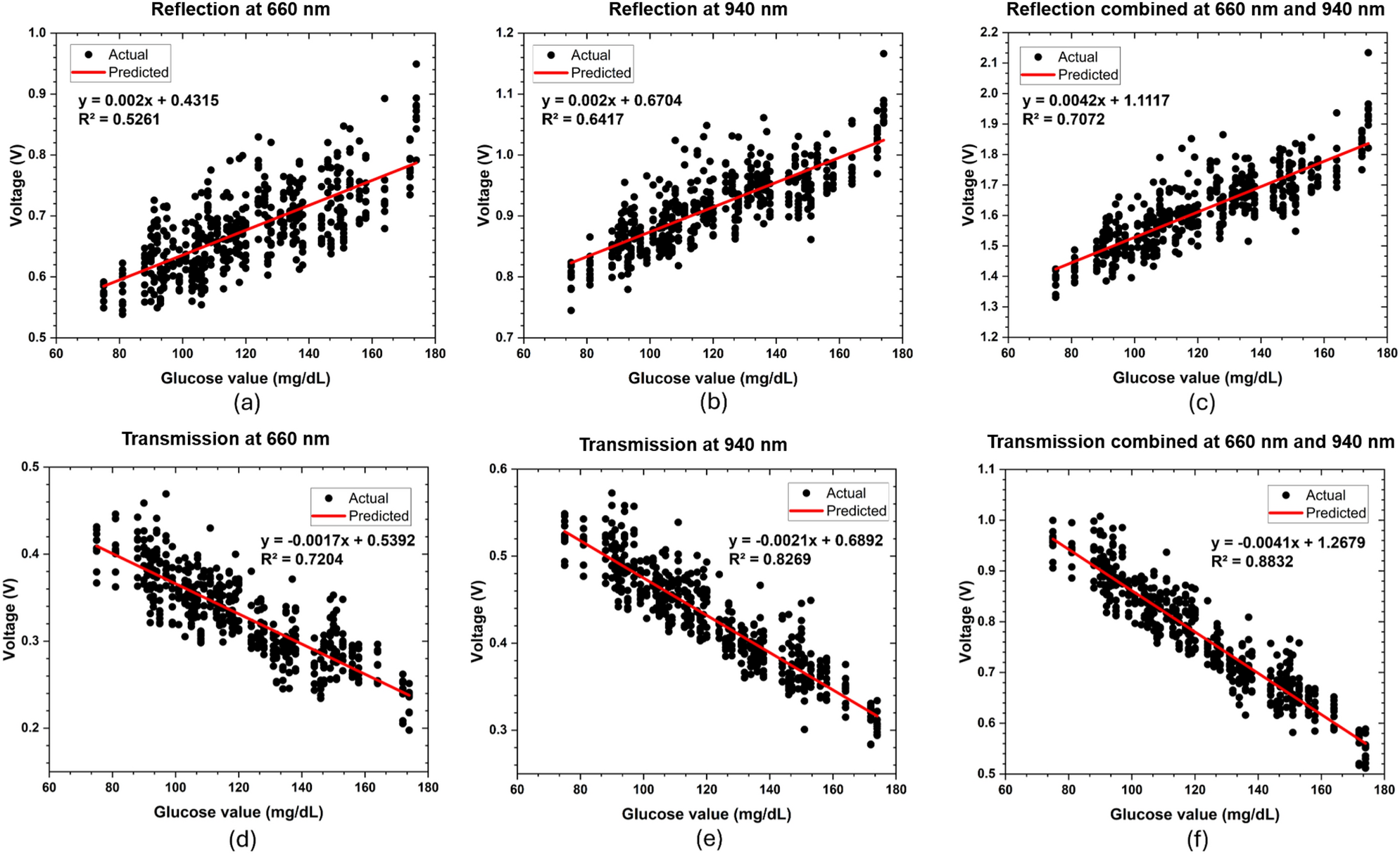

Correlation between blood glucose concentration and signal voltage from the proposed system. The red regression line demonstrates the relationship between invasive glucose reference values and non-invasive voltage signals: (a) from SR1, (b) from SR2, (c) from MR, (d) from ST1, (e) from ST2, and (f) from MT.
