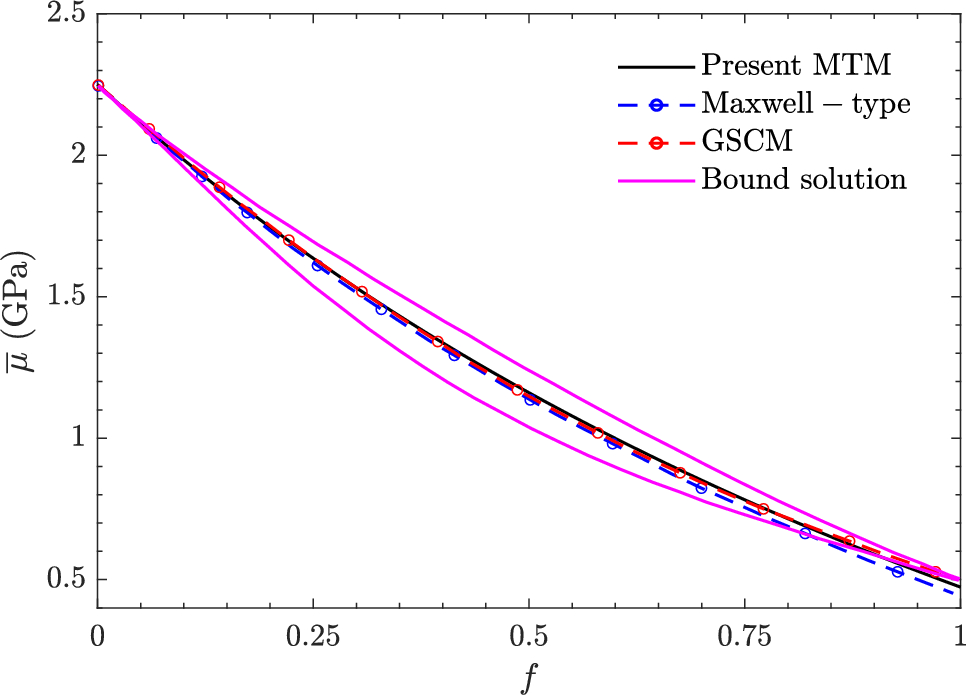

Fig. 8
From: On the macroscopic elastic moduli of nanoporous materials with surface tensile and bending rigidity
Comparison of estimates derived from the bound solution, generalized self-consistent method (GSCM)36, Maxwell-type approximation30, and the present Mori–Tanaka method (MTM). Material and surface parameters: \(\kappa _1=2.60\) GPa, \(\mu _1=0.54\) GPa, \(\kappa _{2}=5.91\) GPa, \(\mu _2=2.25\) GPa, \(\lambda _0=5\) nN/nm, \(\mu _0=-2.5\) nN/nm, \(\xi _0=5\ \mathrm {nN\cdot nm}\), \(\chi _0=-2.5\ \mathrm {nN\cdot nm}\).
