From: Study on dynamic response of open web sandwich plate under near field explosive load

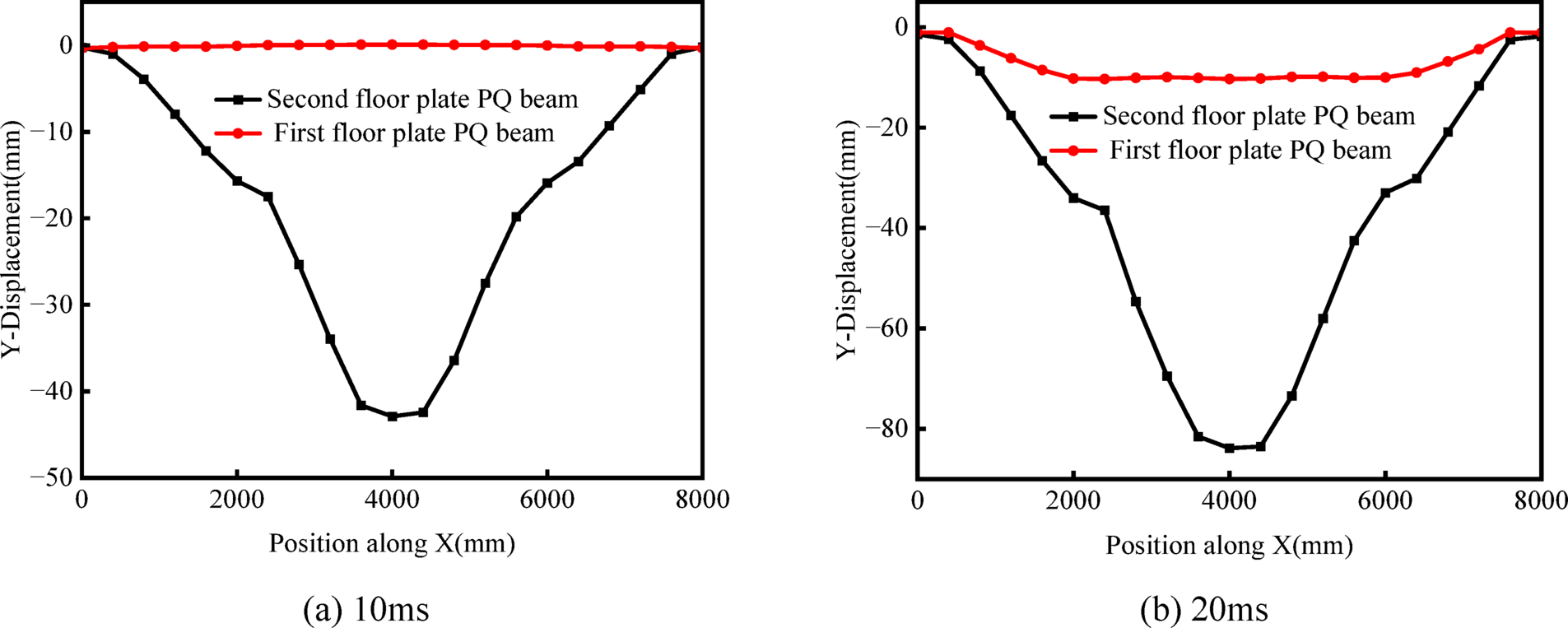

Maximum vertical displacement at various points along the lower center of the open-web girder PQ in a two-layer open-web sandwich plate structure at different time points.
