Fig. 6
From: Study on dynamic response of open web sandwich plate under near field explosive load

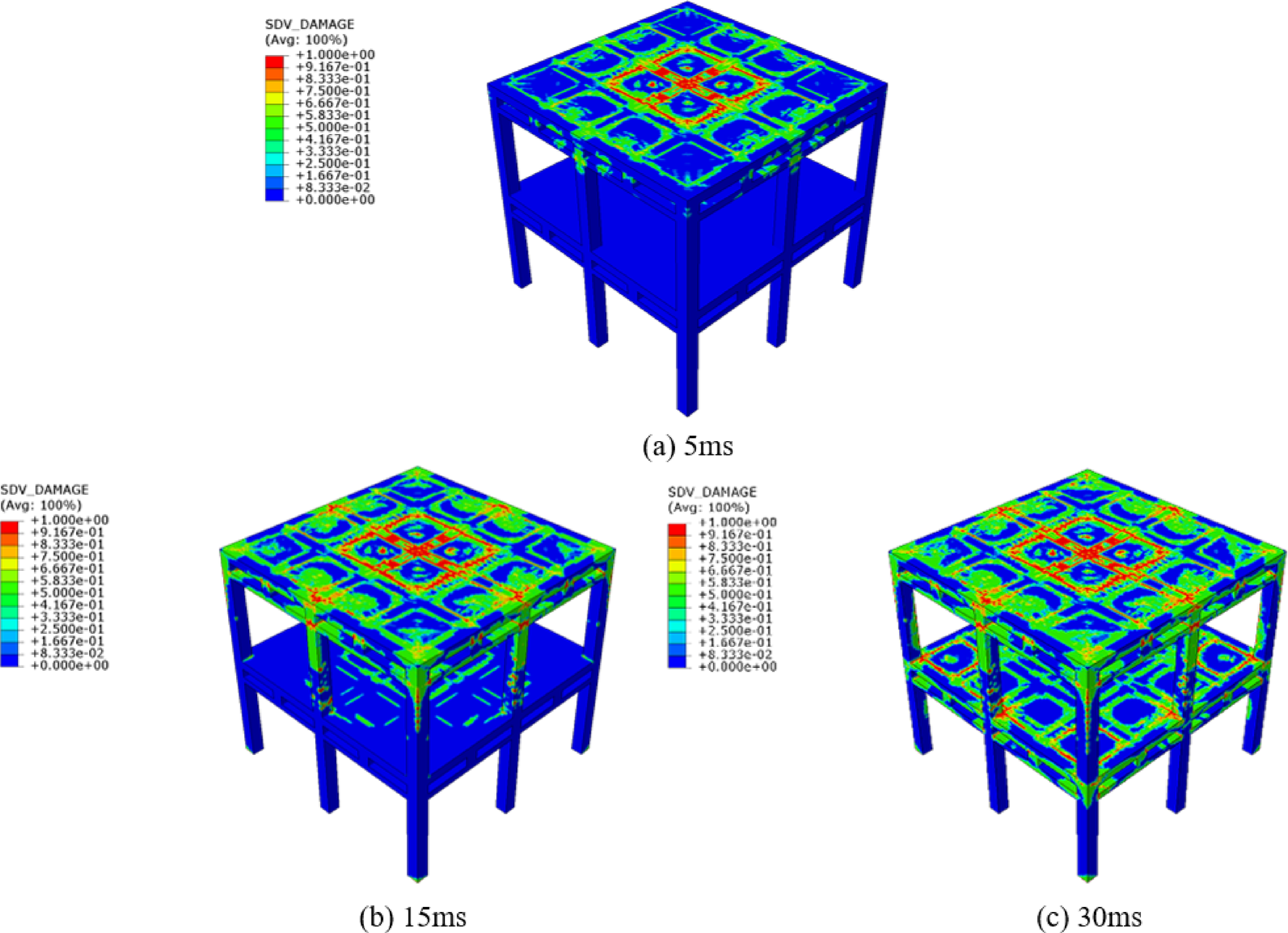

Damage cloud map of the two-layer open-web sandwich plate structure at different times.
