Fig. 2
From: Realistic vulnerabilities of decoy-state quantum key distribution

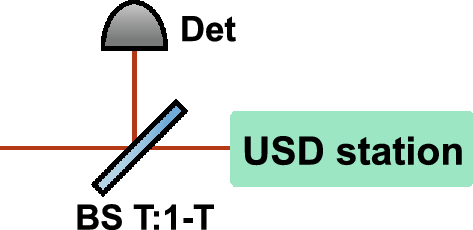

Eve’s setup for the modified USD attack. Det, additional detector for ”odd” photons monitoring; BS T:1-T, asymmetric beam-splitter. The fraction of the input radiation proportional to T goes to the USD station, the remainder goes to Det; if Det fires, Eve forwards nothing to Bob.
