Fig. 4
From: Study on working mechanism and control method of new magnetic suspension gripper

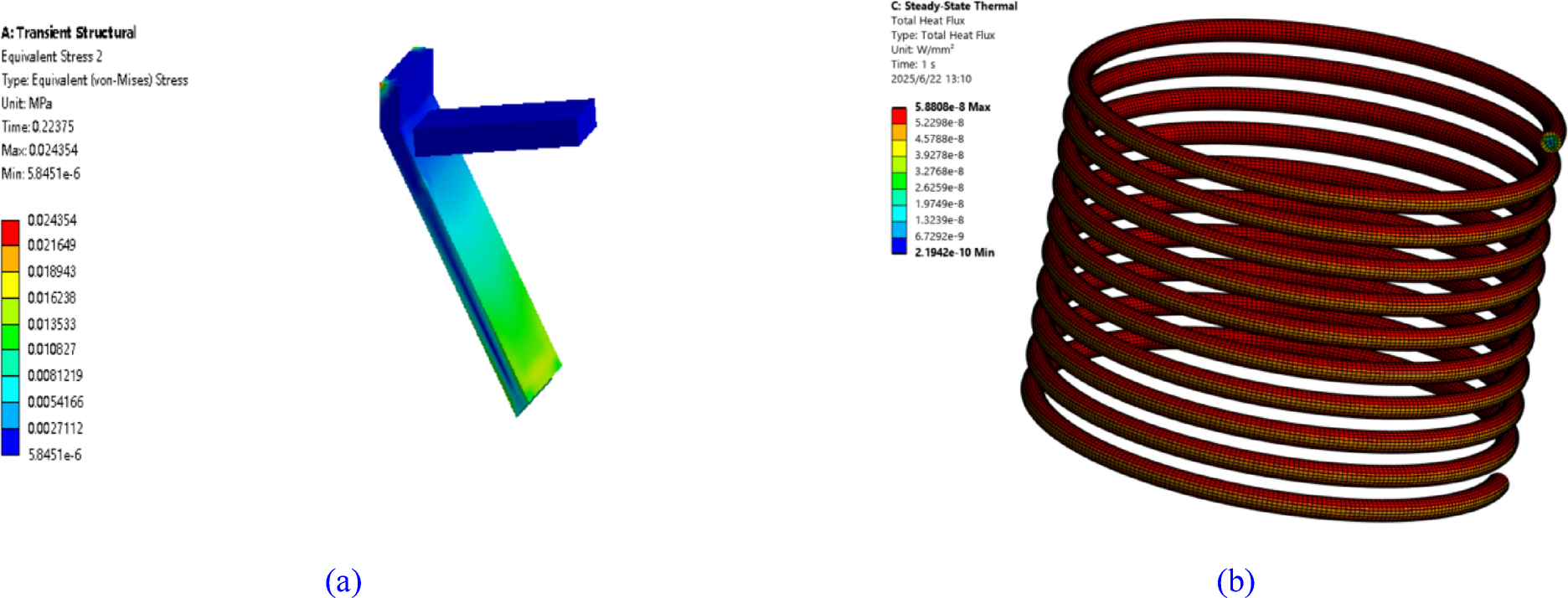

Comparison of the heat loss in the torsion shaft and the electromagnetic coil during a single weft insertion (a) heat loss in the torsion shaft during a single weft insertion in tradition loom. (b) heat loss in the electromagnetic coil during a single weft insertion.
