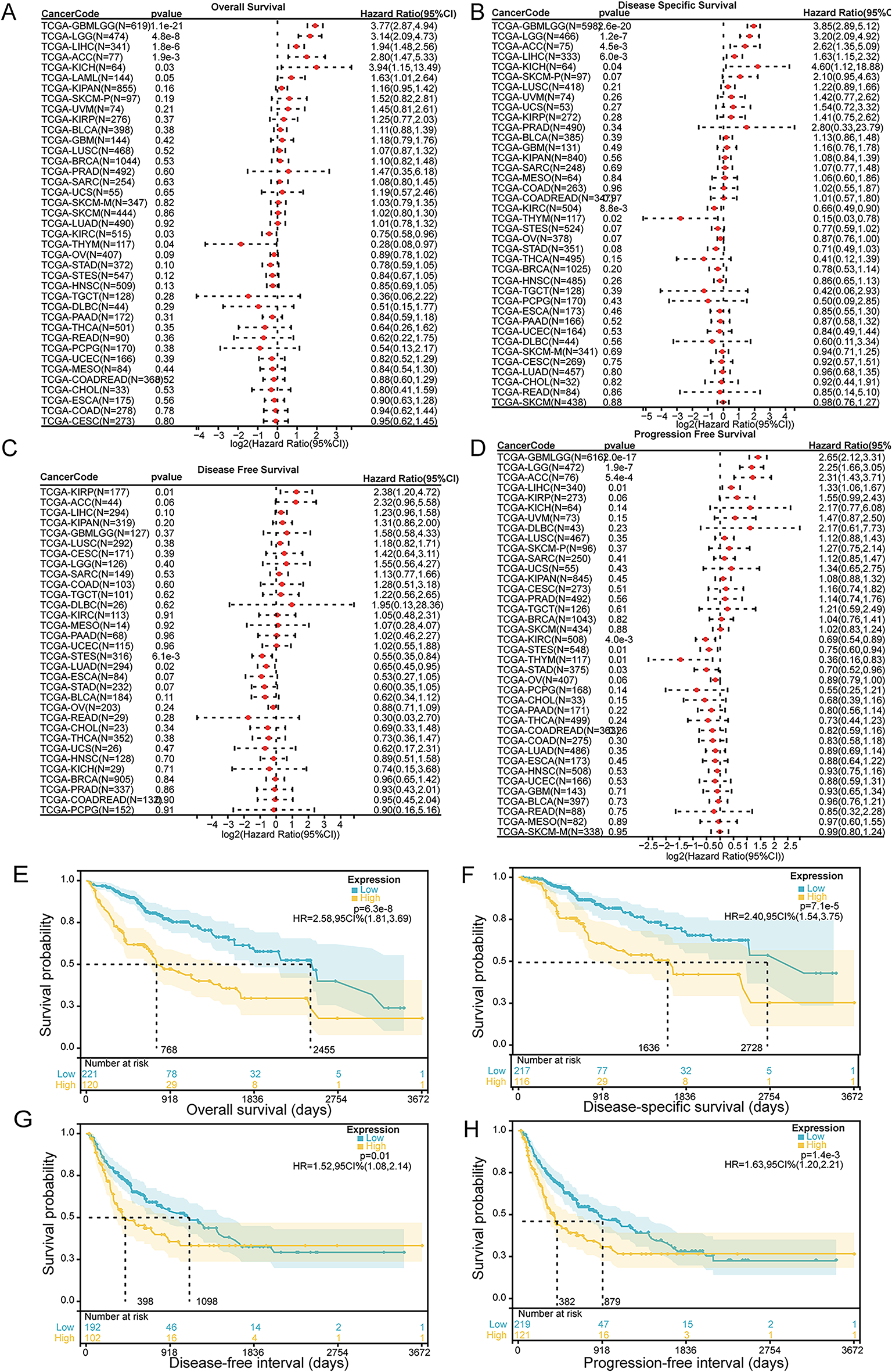

Fig. 3
From: Transcriptomic analysis reveals the potential role of TOE1 in hepatocellular carcinoma
High TOE1 expression correlates with poor clinical outcomes of patients. (A–D) The forest plots shows the relationship of TOE1 expression with patient overall survival, disease-specific survival, disease-free interval, and progression-free interval. (E–H) Kaplan-Meier analysis of correlation between TOE1 expression and overall survival, disease specific survival, disease-free survival and progression free survival in LIHC patients. HR: Hazard ratios.
