Fig. 14

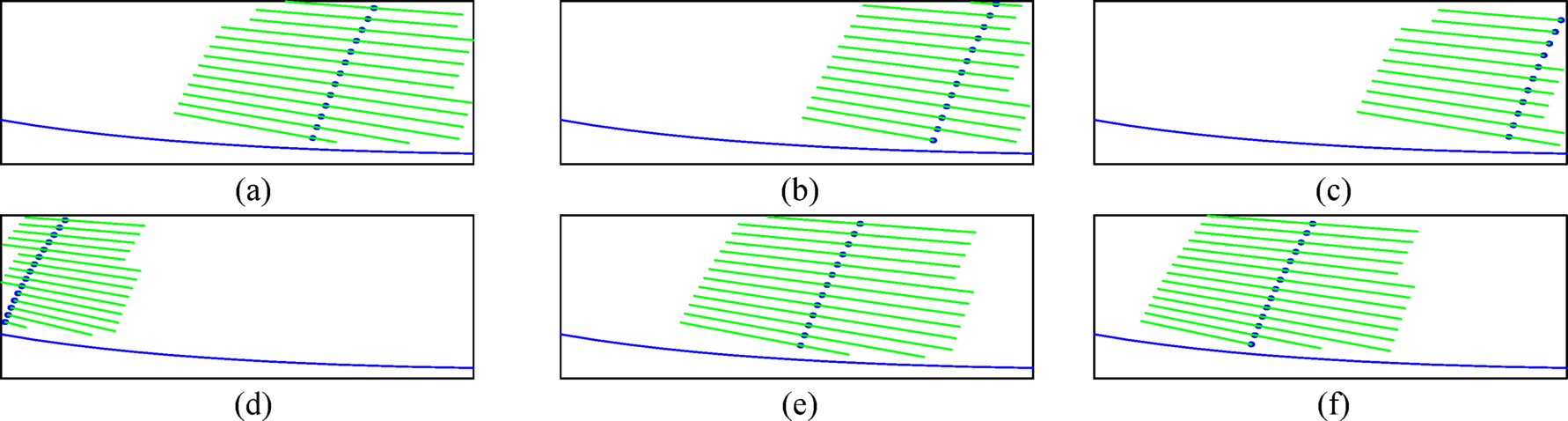

Influence of installation errors on geometric contact pattern (\(\beta =6{\text{ }}^\circ ,x=0.1,E= - 10{\text{ mm}}\)): (a) \(\Delta q=0.1{\text{ mm}}\), (b) \(\Delta E=0.3{\text{ mm}}\), (c) \(\Delta \gamma =0.03{\text{ }}^\circ\), (d) \(\Delta q={\text{-}}0.1{\text{ mm}}\), (e) \(\Delta q=-0.1{\text{ mm}},\Delta \gamma =0.03{\text{ }}^\circ\), (f) No installation errors.
