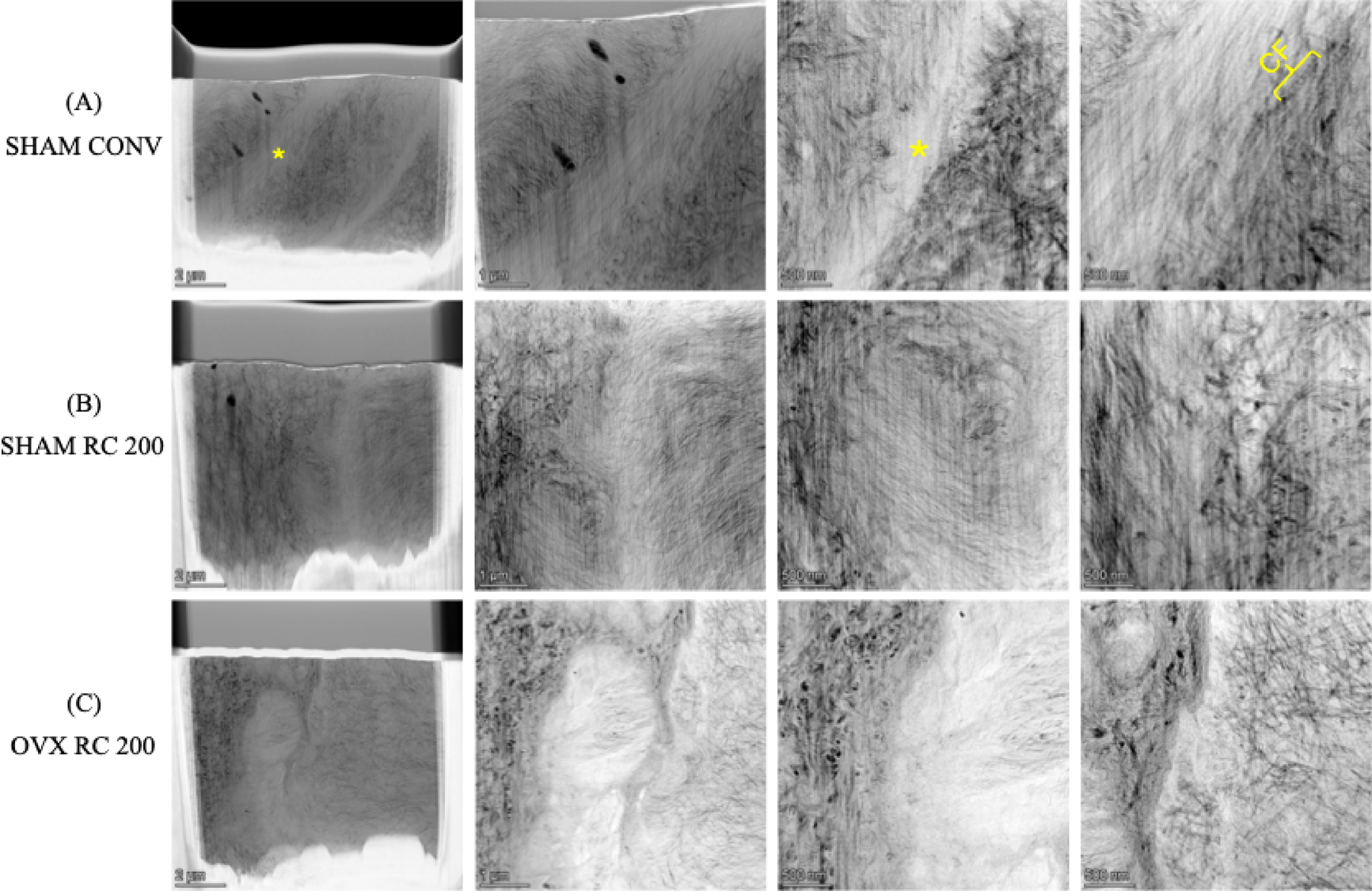

HAADF-STEM images of the interface between new woven bone and pre-existing old bone for SHAM CONV, SHAM RC 200, and OVX RC 200. From left to right: Low magnification to higher magnification. Note that the new bone is located on the left side while the old bone is located at the right side of the images. Note the cement-line-like interface marked by an asterisk. CF = Collagen fibril.
