From: Synthesis and pharmacological profiling of cis-1-amino-2-indanol derivatives as α-glucosidase inhibitors

Fig. 3

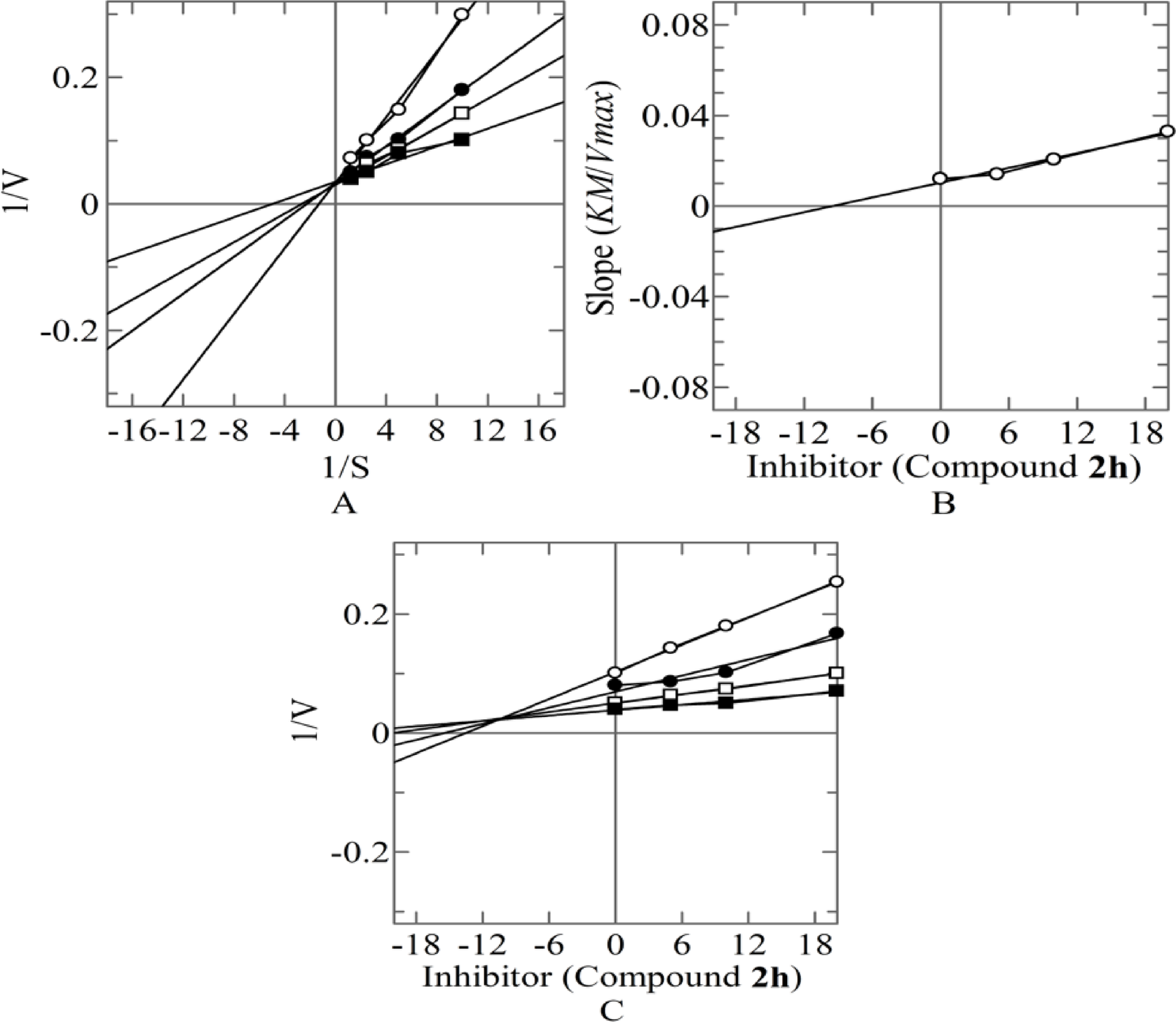

The inhibition of α-glucosidase by compounds 2h (A) Lineweaver-Burk plot presented 1/V (velocities) on their Y-axis, while that of reciprocal of substrate (4-Nitrophenyl α-D glucopyranoside ) on their X-axis. Order of the concentrations of inhibitor include in the absence of compound (■), and in the presence of 20.00 µM (○), 10.00 µM (●), and 5.00 µM (□) of compounds 2h. (B) Secondary replot of Lineweaver-Burk was plotted between the slopes (Km/Vmax) on Y-axis and 1/Inhibitor on X-axis, and (C) Dixon plot presented 1/V on Y-axis, while 1/Inhibitor on X-axis.
