Fig. 1

From: EEG glasses for real-time brain electrical activity monitoring

Fig. 1

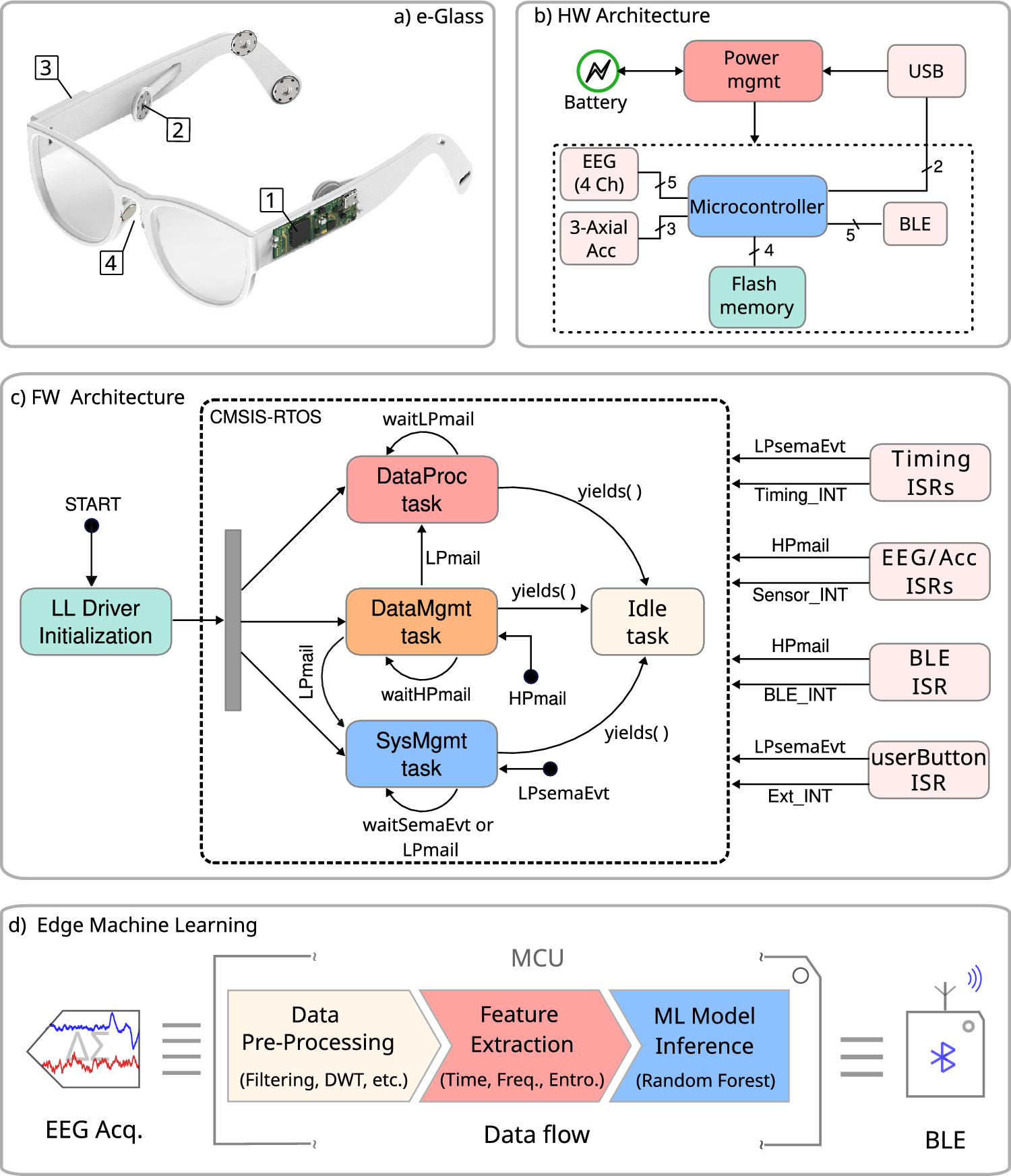

(a) Proposed e-Glass system (parts: 1- main board, 2- Electrode snap connector, 3- battery casing, 4- bias electrodes); (b) hardware block diagram for e-Glass’ main board; (c) firmware state diagram, in which the main state displays four main threads used by e-Glass’ RTOS; (d) edge-ML scheme representing the data flow and processing within e-Glass.
