Fig. 1

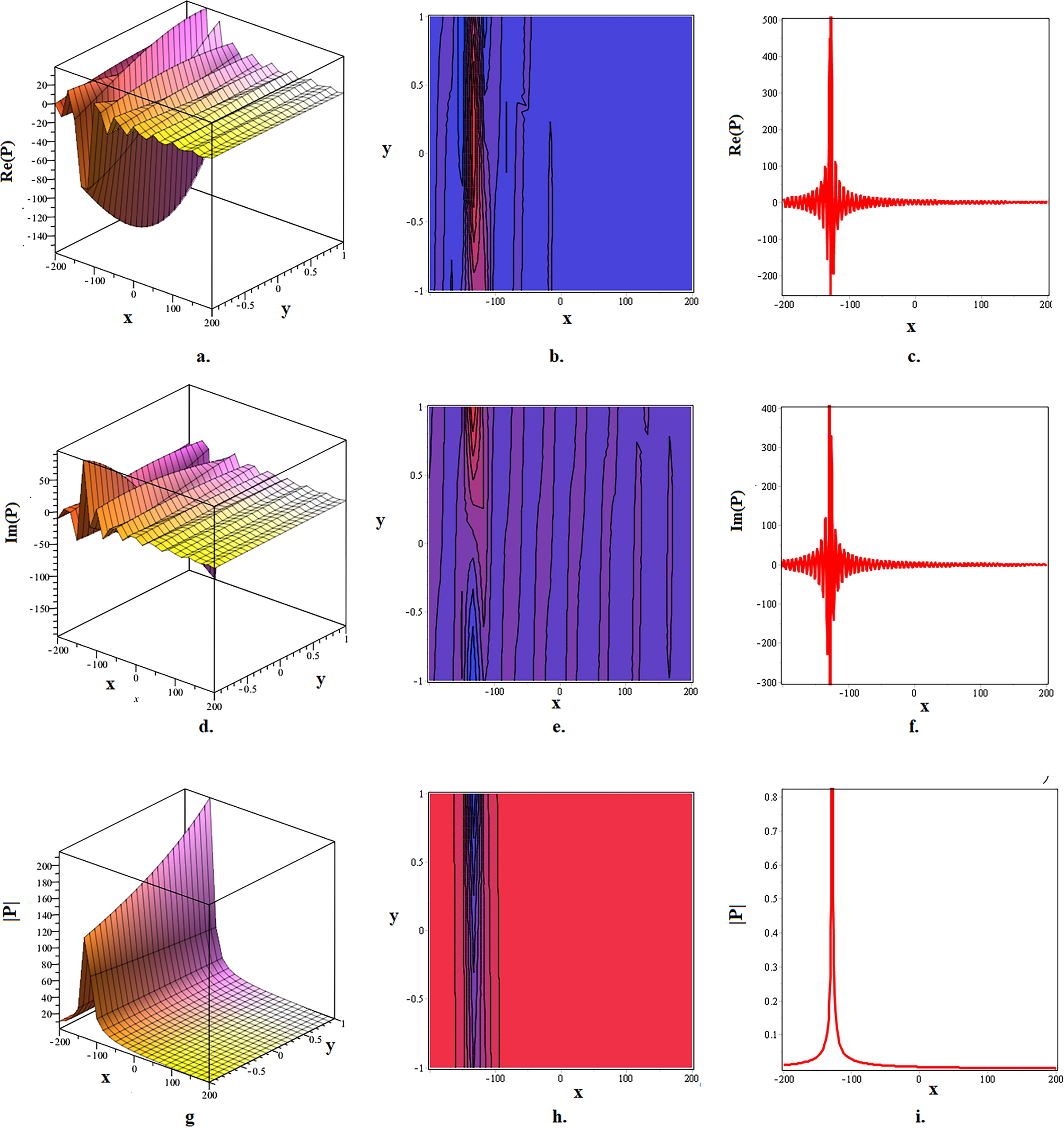

In this figure, a. 3D, b. contour and c. 2D depict the dynamics of \(Re({P}_{1,3}(t,x,y))\), d. 3D, e. contour and f. 2D depict the dynamics of \(Im({P}_{1,3}(t,x,y))\) whereas g. 3D, h. contour and i. 2D depict the bright shaped intensity profiles \(|{P}_{1,3}(t,x,y)|\) of \({P}_{1,3}(t,x,y)\) given in (17) at \(\varpi = 1, \rho = 1, \varrho = 2, \lambda = 0.0025, \mu = 0.0035, p = 0.005, \vartheta = 0.5, t = 1, e_{0} = 1\). Moreover, the 2D plots are shown for \(y=0\).
