Fig. 5 | Scientific Reports

Fig. 5

From: S-allyl cysteine and alliin enhance catalase activity and prevent aggregation to counter oxidative stress in alzheimer’s disease

Fig. 5The alternative text for this image may have been generated using AI.

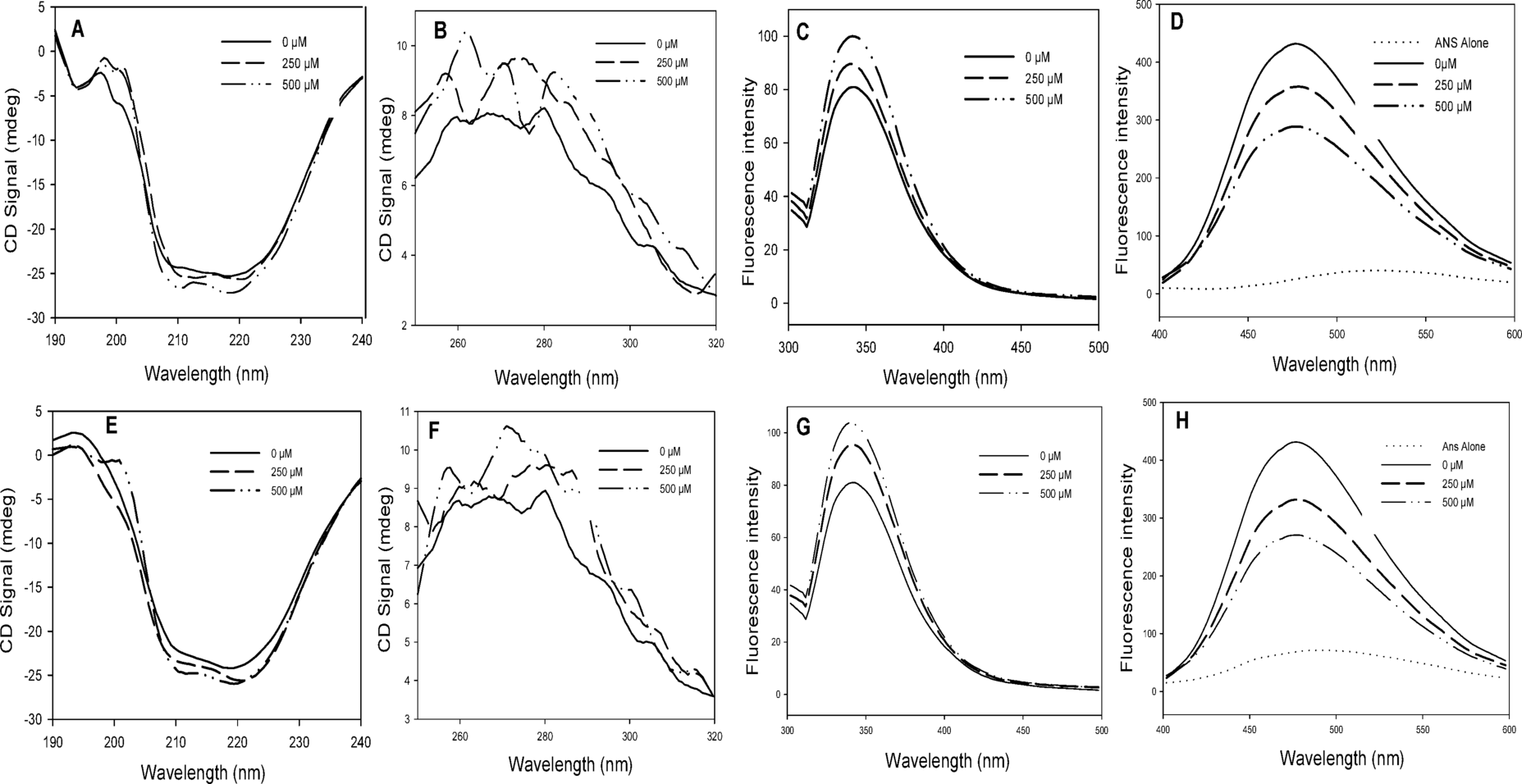

Conformational status of catalase in presence of SAC and Alliin. Far UV CD (A, E), near-UV CD (B, F), tryptophan fluorescence (C, G), ANS binding assay (D, H). Major spectra properties for representing Far UV CD, Near-UV CD, intrinsic and extrinsic florescence. Upper and Lower panel represent spectra for SAC and Alliin respectively. Spectra and results shown are representative of at least three independent measurements.
