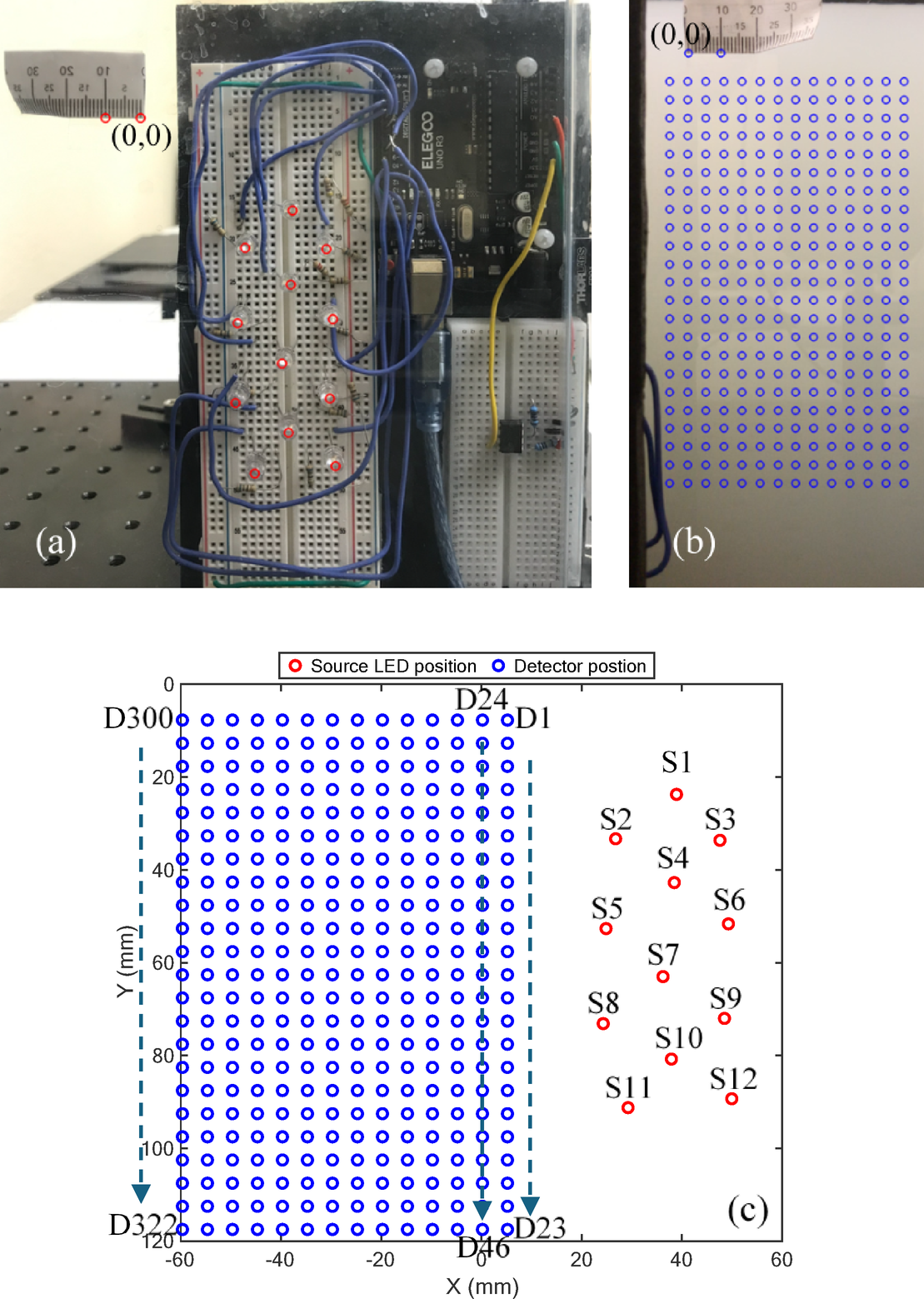

Fig. 2

Photos for showing the paper ruler, the origin (X=0 and Y=0) and the LED X and Y locations on the 1^st (front) photo (a); the origin (X=0 and Y=0) and the detector X and Y locations on the 2^nd (back) photo (b). LEDs and detectors are plotted in the same figure after co-registration (c)
