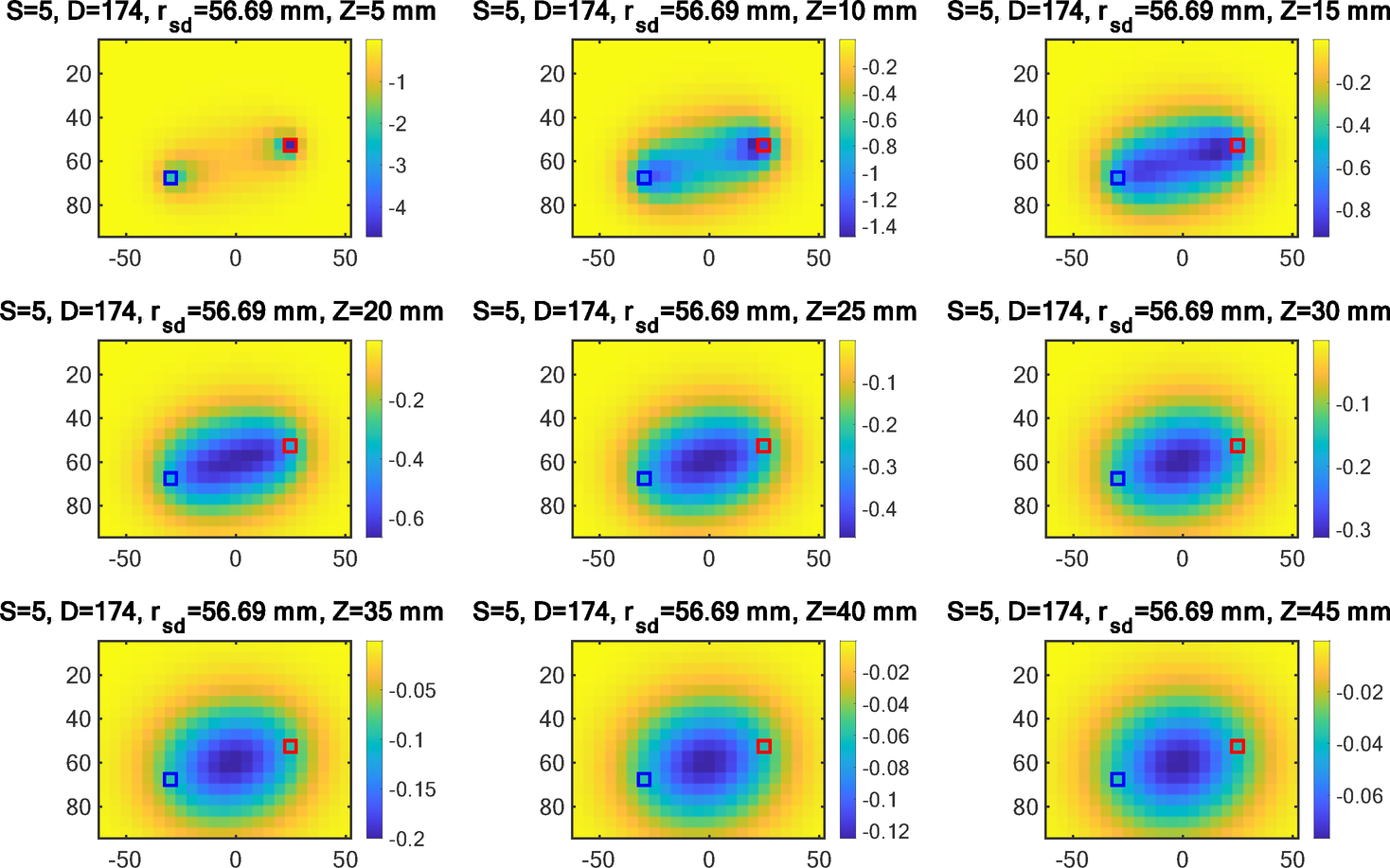

Fig. 6

An example showing the weight distribution in 3D space (XYZ) for the LED 5 (the red square) and the detector 174 (the blue square) with a r_sd=56.69 mm at different depths from 5 to 45 mm. The blue area (negative) indicates higher sensitivity than the surrounding orange yellow areas.
