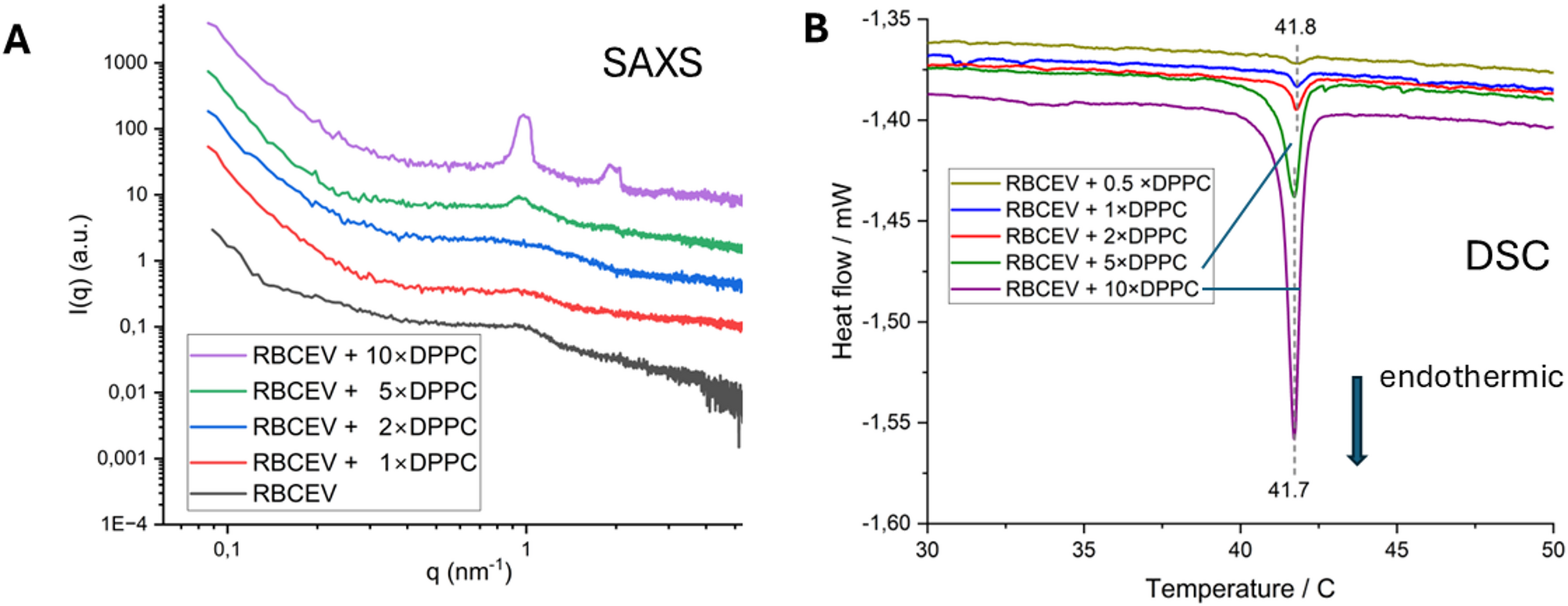

Small angle X-ray patterns of red blood cell derived extracellular vesicles (RBCEV) and their DPPC loaded forms (RBCEV-1×DPPC, RBCEV-2×DPPC, RBCEV-5×DPPC, RBCEV-10×DPPC). For better visualization, the curves of loaded systems are multiplied. (A) DSC curves with chain melting signals of DPPC containing RBCEVs samples. The heat flow values are normalized to the DPPC amounts, clearly showing the significant changes in molar chain melting enthalpy of DPPC (B).
