Fig. 14

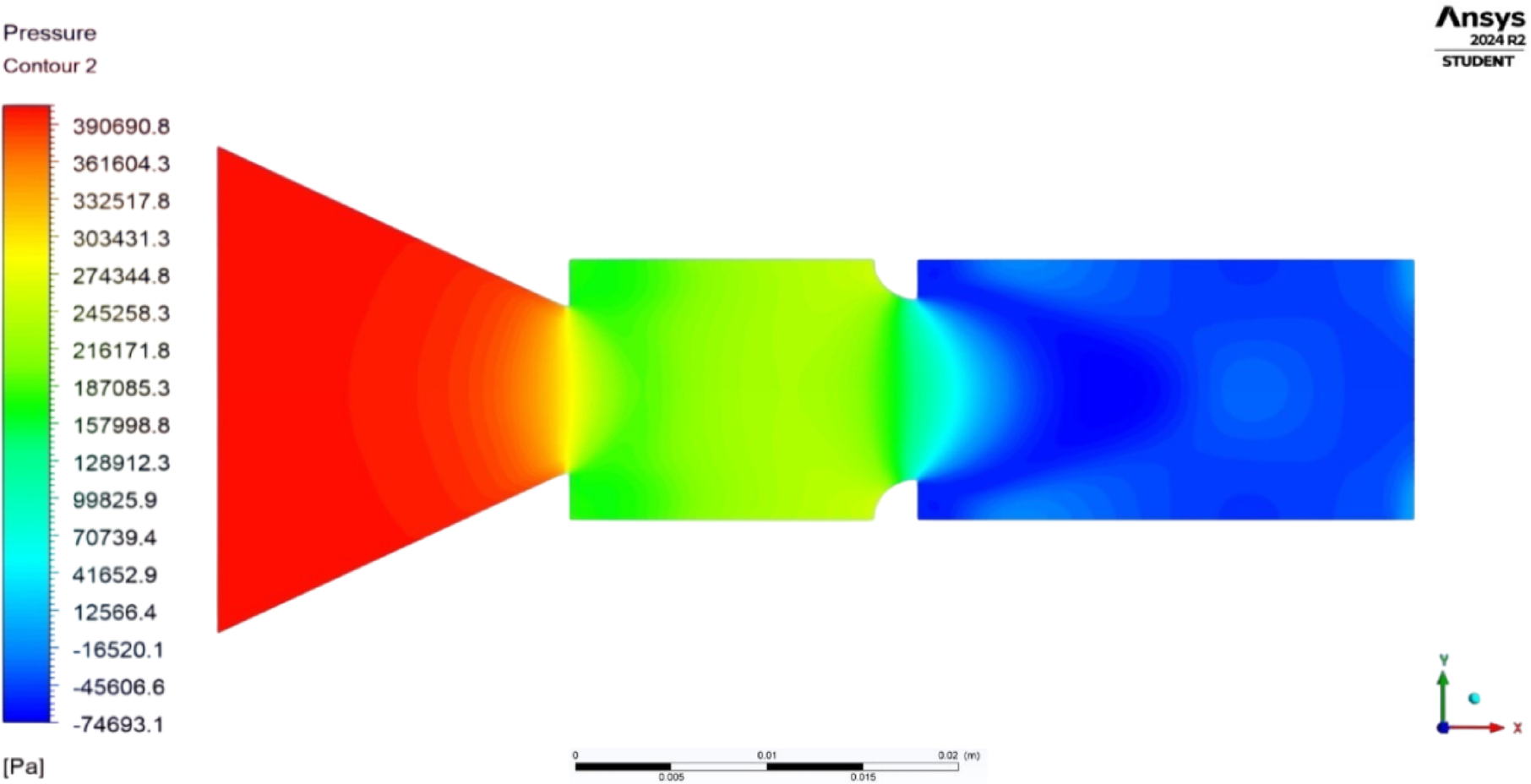

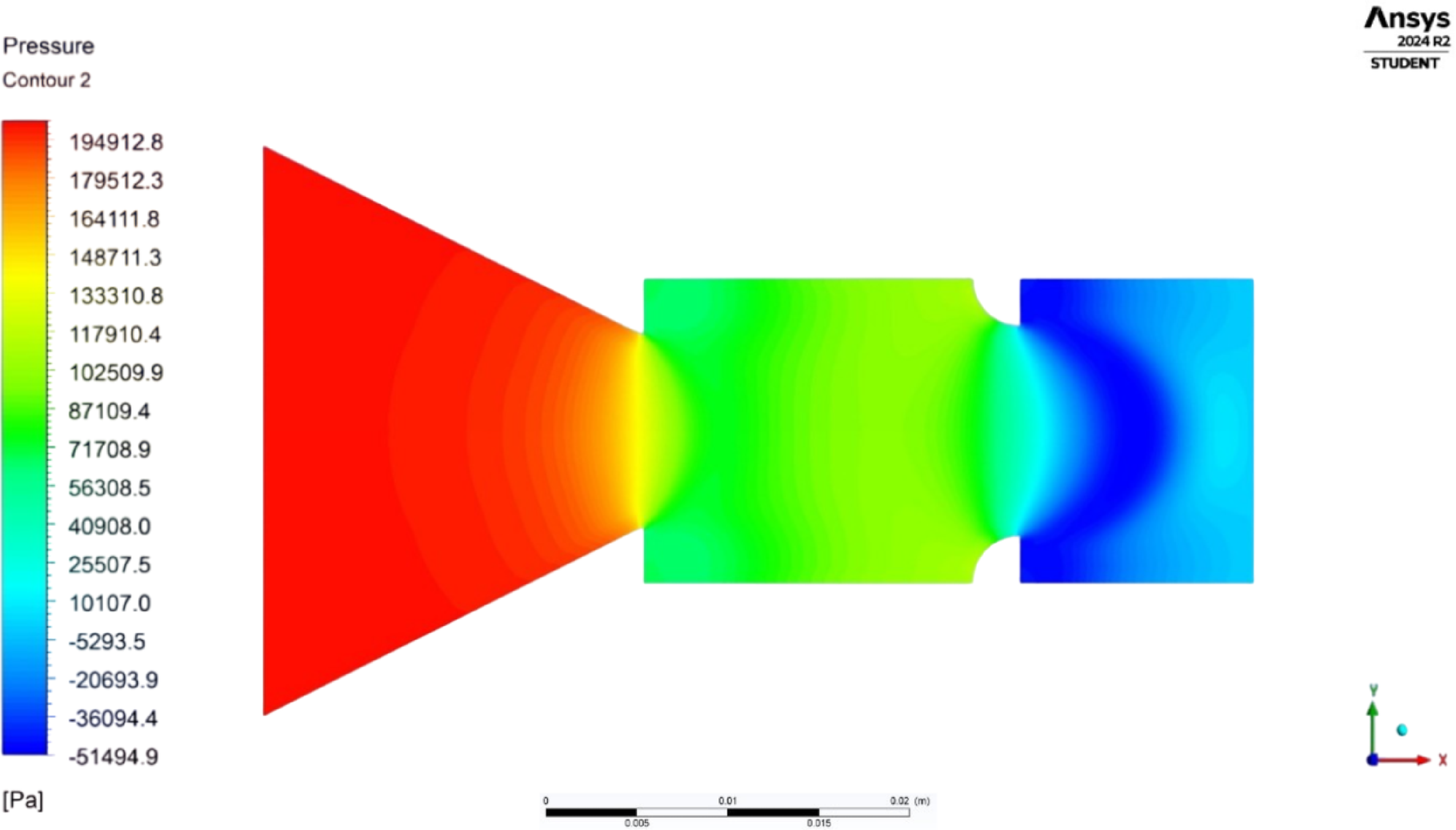

(a) Pressure contour for L/D = 2, 2.5 mm rib, at 1D location and NPR = 3. (b) Pressure contour for L/D = 2, 2.5 mm rib, at 1D location and NPR = 5. (c) Pressure contour for L/D = 3, 2.5 mm rib, at 1D location and NPR = 3. Figure 14.
