Fig. 14
From: Nonlinear flow characteristics of cement grout in fractures with varying geometries

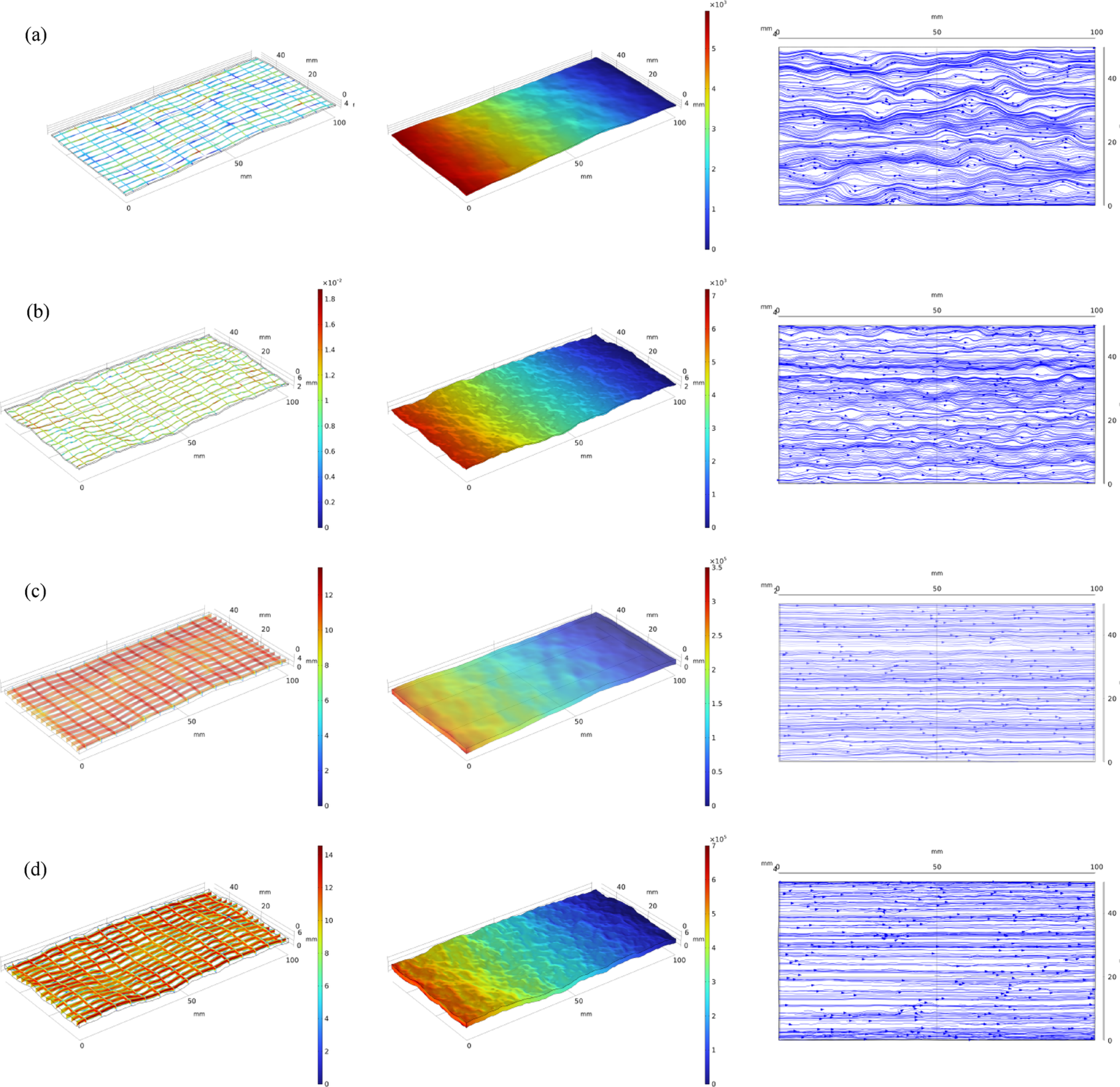

Shear fracture velocity, pressure, and streamlines. (a) e = 0.5 mm, v = 0.01 m/s, D = 2.1; (b) e = 0.5 mm, v = 0.01 m/s, D = 2.5; (c) e = 2 mm, v = 0.01 m/s, D = 2.1; (d) e = 2 mm, v = 10 m/s, D = 2.5
