Fig. 5 | Scientific Reports

Fig. 5

From: Overexpression of JMJD6 drives immune evasion via the BRD4–IRF1–PD-L1 axis and promotes malignancy in gastric cancer

Fig. 5

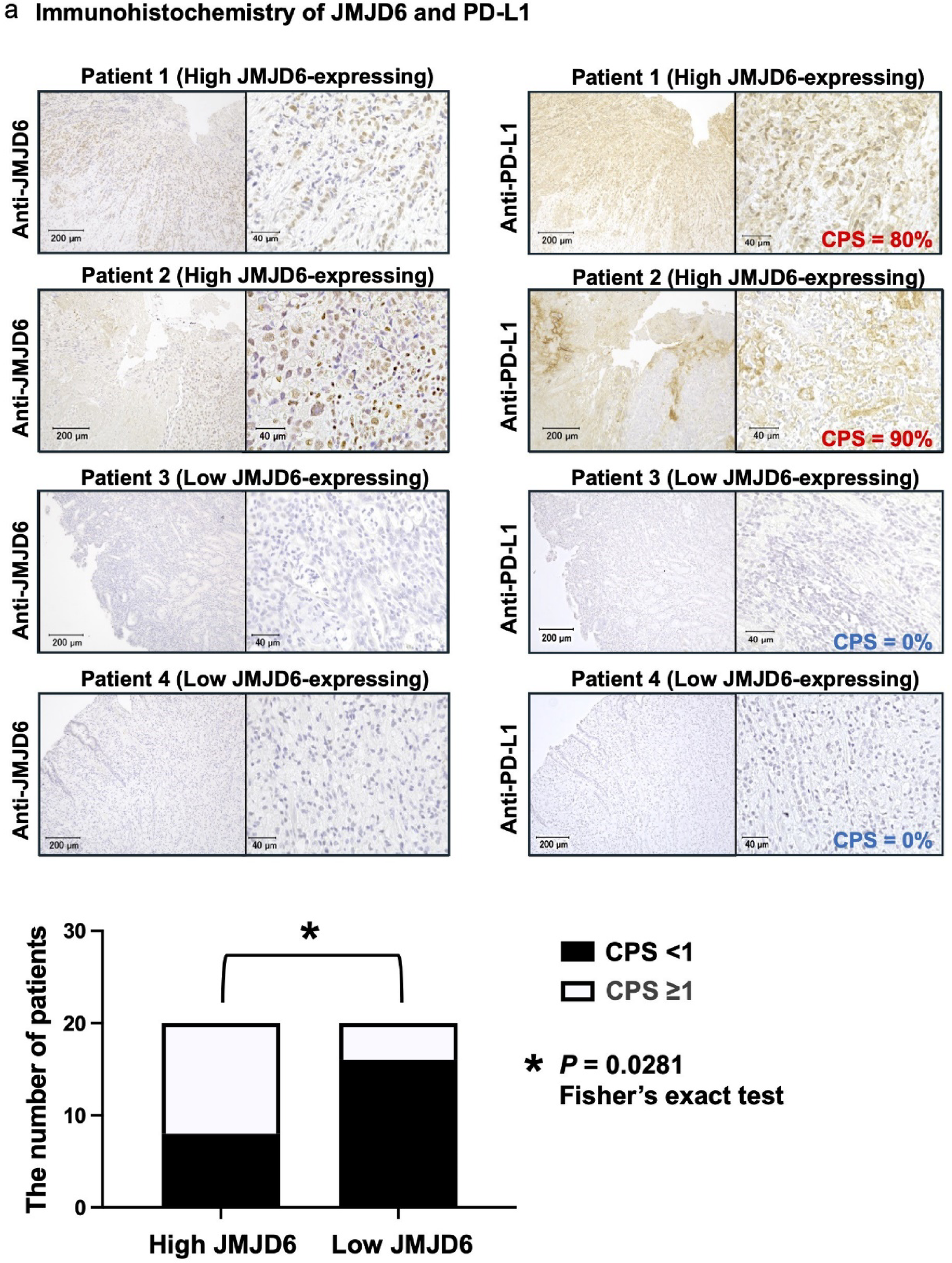

JMJD6 expression is positively correlated with PD-L1 in GC tissues. Immunohistochemical staining of JMJD6 and PD-L1 was performed on GC tissues from 174 patients. Twenty high JMJD6-expressing cases and twenty low JMJD6-expressing cases were selected for PD-L1 staining and CPS evaluation. Representative images from four cases are shown. High JMJD6 expression was significantly associated with CPS ≥ 1 (P = 0.0281, Fisher’s exact test).
