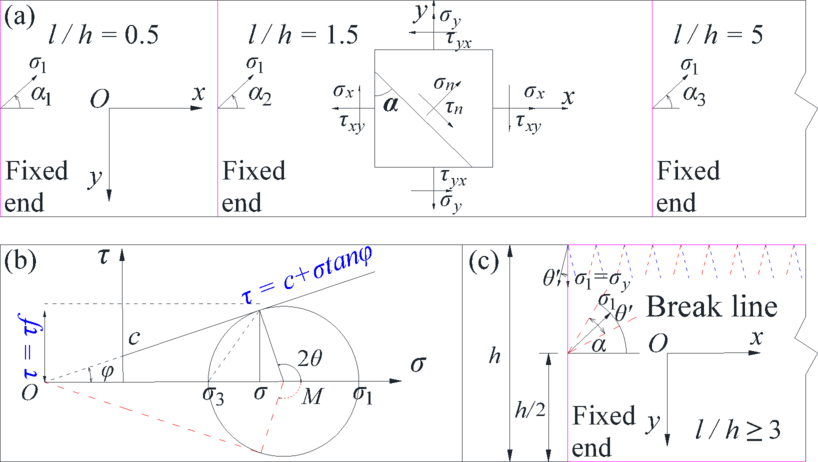

(a) Stress state and maximum principal stress direction of the unit within the rock beam; (b) Mohr Coulomb failure criterion for rock mass; (c) Distribution characteristics of broken lines.
