Fig. 5 | Scientific Reports

Fig. 5

From: Epibrassinolide seed priming alleviates alkaline stress by enhancing antioxidant defense in dragonhead plants

Fig. 5

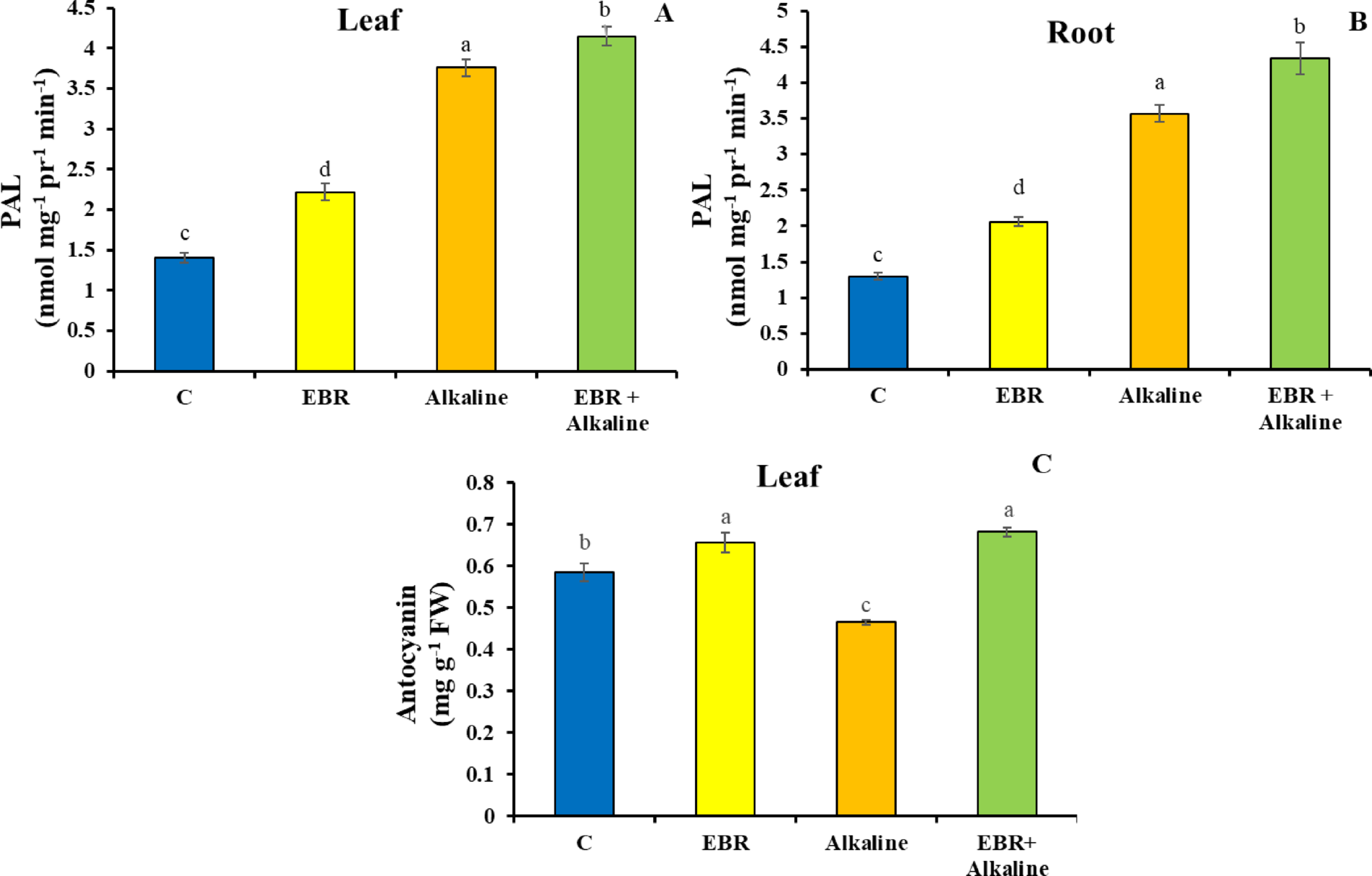

Effect of seed priming with 24-EBR (10− 8M) on PAL enzymatic activity (leaves and roots) and anthocyanin content (leaves) of Lallemantia iberica plants under 48 h of alkaline stress. Different letters indicate significance among treatments with Duncan’s test at a 5% probability level. C (control), EBR (10− 8 M 24-epibrassinolide), Alkaline (15 mM Na2CO3), and EBR + Alkaline (10− 8M 24-epibrassinolide + 15 mM Na2CO3).
