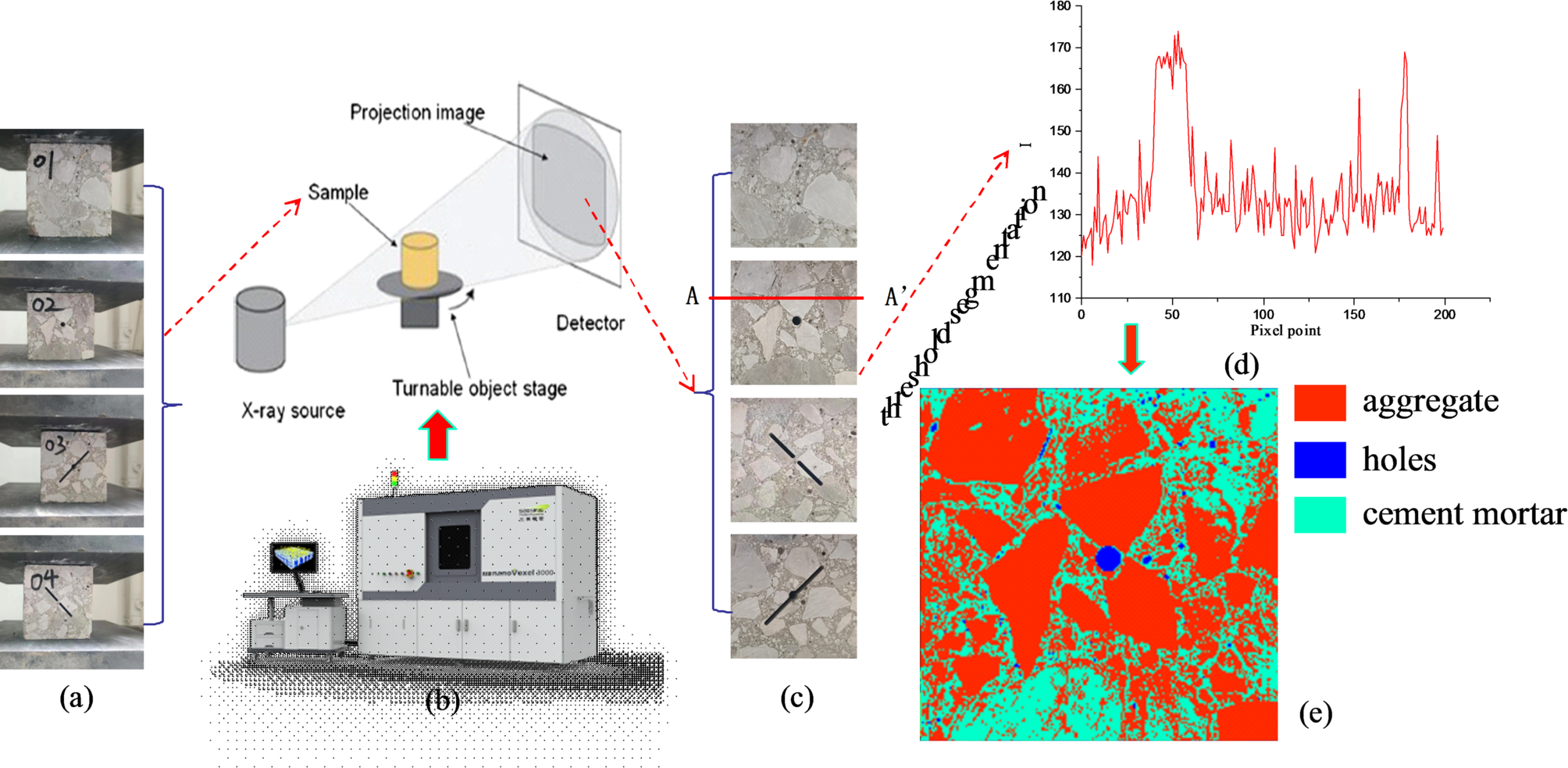

Fig. 2
From: Study on the mesoscopic failure and fractal characteristics of concrete with holes and cracks
The process of concrete digital image characterization: (a) concrete samples; (b) CT equipment; (c) CT slice in two dimensions; (d) I value fluctuation along scan line AA’; and (e) concrete characterization image with threshold segmentation.
