From: A quantitative characterization of antibiotic resistance and its influencing factors in hospital wastewaters across Lebanon

Fig. 3

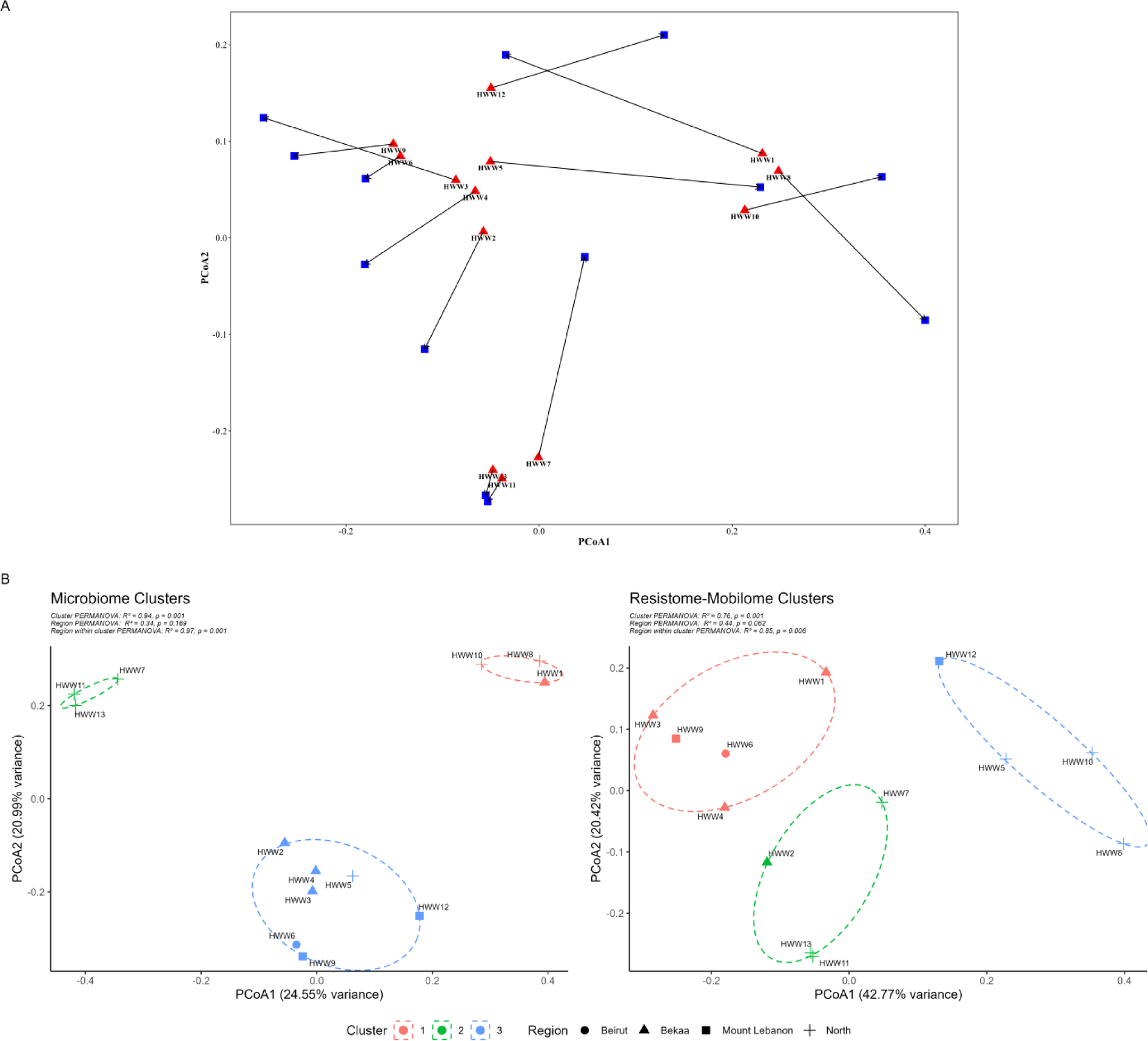

(A) Procrustes analysis of correlations between the microbiome and the resistome-mobilome. Arrows are shown between microbiome and resistome-mobilome coordinates for each HWW sample. Red triangles represent microbiome and blue squares represent resistome-mobilome. (B) Principal Coordinates Analysis (PCoA) of microbiome and resistome-mobilome composition based on Bray-Curtis dissimilarity matrices. Points represent samples, colored by statistically significant k-means clusters (k = 3) and shaped by geographic region, with dashed ellipses indicating 95% confidence intervals (for cluster with ≥ 3 samples). R² values and P-values from PERMANOVA are shown on respective plots. Axis labels indicate the percentage of variance.
