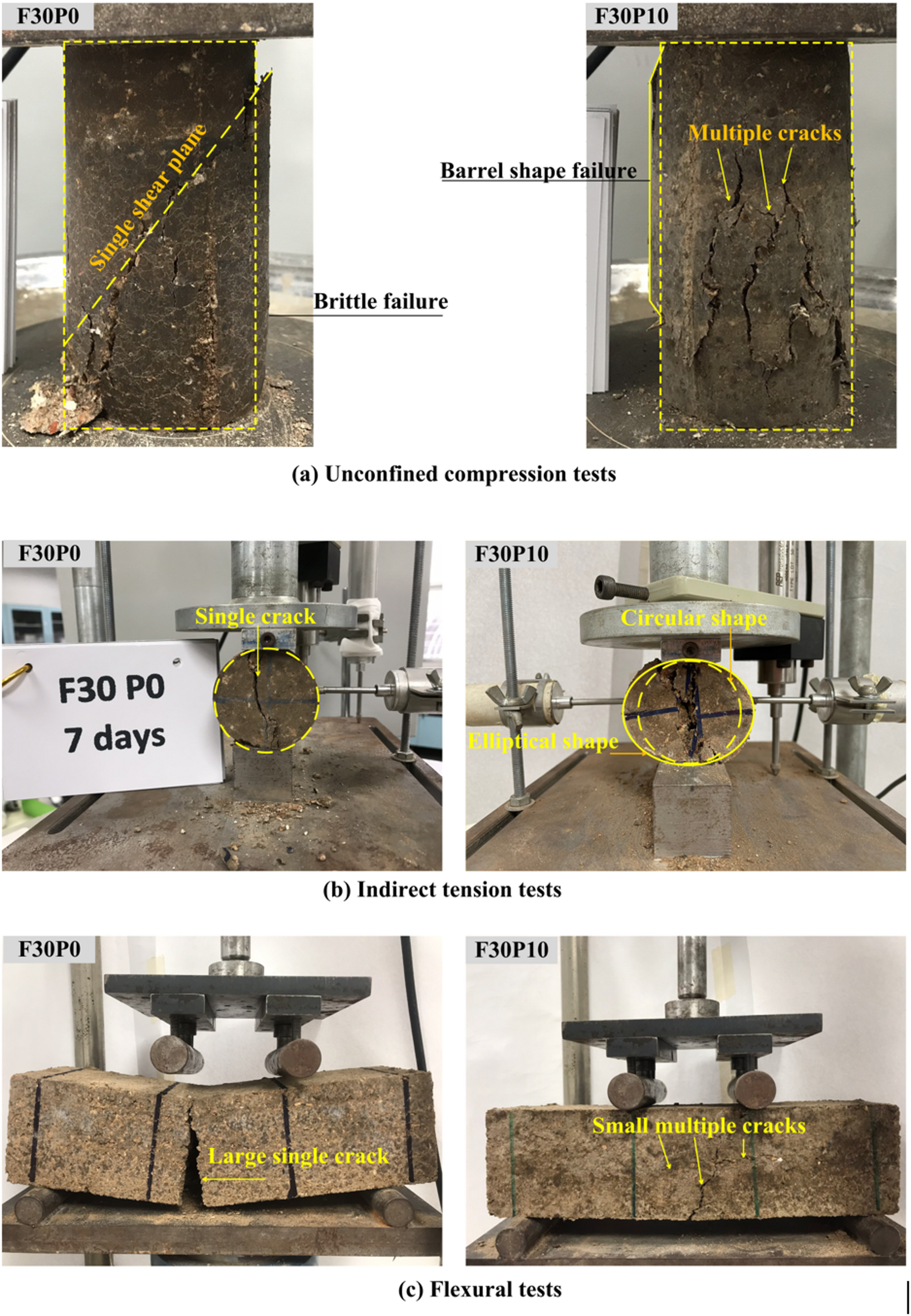

Fig. 10

Failure patterns of stabilized laterites with and without 10% MNRL in different tests after 7 days: UC shows transition from brittle shear to barrel-shaped failure; IT shows crack spreading from single to circular-elliptical; FT tests reveal a shift from single large cracks to smaller distributed ones.
