Introduction

Marine organisms are a rich source of bioactive secondary metabolites that have inspired the development of successful drugs based on their natural scaffolds, with a total of 15 compounds approved, and 31 others in various stages of clinical evaluation1,2,3. Three of the approved drugs derived from marine sources were initially identified from tunicates, highlighting the importance of the continue exploration of this subphylum for drug discovery4. Didemnum is a genus of marine tunicates widely distributed across tropical and subtropical coastal regions of Asia, Oceania, Africa, Europe, and the Americas. Their broad geographical distribution is mirrored by a large chemodiversity of secondary metabolites with over 200 natural products reported, including alkaloids5, peptides6, polyketides7, lipids8, steroids9 and nucleosides9,10. Many of these compounds possess significant biological activity with potential pharmacological applications, such as the antiproliferative lamellarins11, the cycle checkpoint inhibitory granulatimides5, the HIV protease inhibitory didemnaketals12, and the antimalarial and antitrypanosomal lepadins13. The enediynes namenamicin and shishijimicins14 are potent cytotoxic compounds that closely resemble the microbial natural product calicheamicin, a compound used as an antibody–drug conjugate for treating acute myeloid (Mylotarg®) and lymphocytic leukemias (Besponsa®)10,15. Overall, although the chemical diversity of tunicates has been extensively studied, there remains significant potential for new discoveries.

Recently, a large antimicrobial high-throughput screen (HTS) was reported by the National Cancer Institute (NCI) and the National Institute of Allergy and Infectious Diseases (NIAID)16. The project involved screening 326,000 natural product fractions against four microbial targets: Staphylococcus aureus, Escherichia coli (including two strains—wild type and tolC efflux mutant), and Candida albicans and identified over 3,000 fractions with potent antimicrobial activity. From this, 75 active fractions identified during the discovery campaign were selected for further HPLC fractionation and their chemotypes identified using 1 mg of material according to previously published automated methods17. HPLC-subfractions from D. granulatum showed activity against all four microbial strains (Fig. S1), and using NMR fingerprints, the major chemical components of those fractions were assigned as lipopeptides, although no complete structure was proposed16. Herein, we report additional studies on the antimicrobial fractions from D. granulatum, describing the isolation and biological evaluation of minalemines G (1) and H (2), together with an application of neutral loss graph as a tool to explore minor metabolites in the adjacent chemical space.

Results

Rapid identification of compounds in bioactive subfractions

Despite the potential utility of compounds derived from tunicates, identifying new chemical entities with pharmacological potential in these organisms can be a laborious process, often complicated by the rediscovery of known metabolites18. To address this challenge, LC–MS and taxonomic data have been employed in modern dereplication workflows, utilizing analytical datasets and comprehensive databases for metabolite profiling19. As the starting point of this study, we performed a mass spectrometry-based annotation of the constituents in the active subfractions from D. granulatum. Initially, the accurate mass of m/z features present in the active subfractions of D. granulatum were searched against a dataset of 182 compounds from the genus Didemnum assembled from the Dictionary of Natural Products database20. Then, a comparison between the MS2 spectra of annotated features and literature reports was used to support dereplication. This approach led us to identify the m/z feature at 459 (RT = 4.71 min, subfraction 8) as rodriguesine A (Fig. 1)21, supported by comparison with the previously reported fragmentation profile (Fig. S2, Table S1)22.

Fig. 1
Fig. 1
Full size image

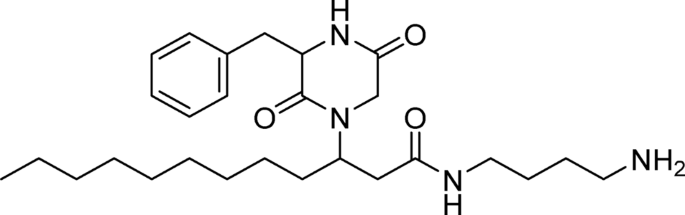

Structure of rodriguesine A. The compound was identified from D. granulatum based on an LC–MS dereplication workflow.

The strategy successfully used in the annotation of rodriguesine A, which was found exclusively in one of the active subfractions, suggesting that other constituents were responsible for the observed activity. LC–MS traces of the active subfractions revealed that the samples were mixtures of multiple components. Subsequent isolation efforts with additional material from the organic extract of D. granulatum led to the purification of two new compounds, minalemines G (1) and H (2) (Fig. 2).

Fig. 2
Fig. 2
Full size image

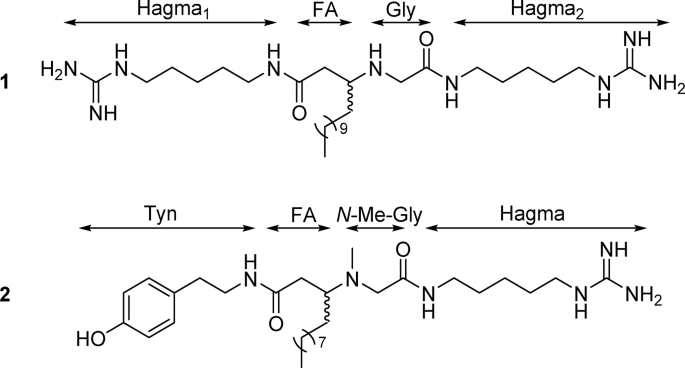

Structures of minalemines G (1) and H (2). Compound 1 is composed of two homoagmatine (Hagma) subunits, along with fatty acid (FA) and glycine (Gly), while 2 is composed of tyramine (Tyn), FA, N-Me-Gly and Hagma.

Structure elucidation of minalemines G (1) and H (2)

Minalemine G (1) showed a [M + H]+ at m/z 554.4873 by HRESIMS, corresponding to the molecular formula C28H60N9O2+. The 1H NMR of 1 (Table 1) showed one sp3 methine at δH 3.52, multiple methylenes ranging between δH 3.88–1.29, and one terminal methyl at δH 0.90. A spin system formed by five methylenes (Hagma1-H1–5) was revealed by 1H–1H COSY correlations (Fig. 3). Analysis of 1H–15N and 1H–13C HMBC showed correlations from Hagma1-H5 (δH 3.17) to a terminal guanidine (δN 82.9 and δC 158.6), forming the first homoagmatine subunit (Hagma1). The methylene at Hagma1-H1(δH 3.22) showed correlations to Hagma1-N1 (δN 122.7) and to the fatty acid portion (FA) through the carbonyl at FA-C1 (δC 172.4). The second homoagmatine subunit (Hagma2) exhibited a similar spin system containing five methylenes with overlapped 1H, 13C and 15N chemical shifts to Hagma1, differing at CH2-1 (δH 3.27, δC 40.4) and N1 (δN 116.0). Hagma2 was connected to the C-terminal of a glycine (Gly) residue by a 1H–13C HMBC correlation from Hagma2-H1 (δH 3.27) to Gly-C2 (δC 166.5). The final planar structure was formed by linking the Gly residue to FA subunit through correlations from Gly-H1 (δH 3.82/3.88) to FA-C3 (δC 57.5), confirmed by the correlation from FA-H2 (δH 2.57/2.70) to Gly-N1 (δN 45.8). With the planar structure established, a competing enantioselective conversion method (CEC)23 was applied to determine the absolute configuration of C-1 in 1, but the kinetics of the reactions using R- and S-homobenzotetramisole (HBTM) showed no differentiation, suggesting an enantiomeric mixture (Fig. S3). A weak specific rotation \({\left[\alpha \right]}_{\text{D}}^{24}\) of − 2.97 suggested 1 to be a scalemic mixture, which was confirmed by chiral chromatography analysis which showed a 6:4 ratio of the two enantiomers (Fig. S4). Compound 1 was determined to be a new natural product and was named minalemine G.

Table 1 NMR data for minalemines G (1) and H (2) in MeOH-d4.
Full size table
Fig. 3
Fig. 3
Full size image

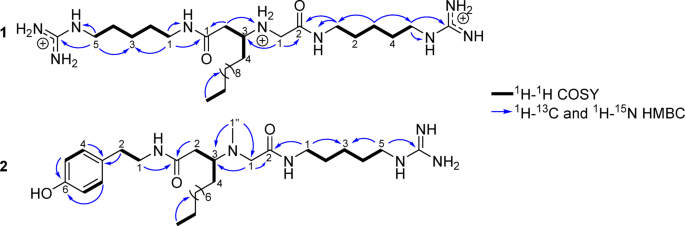

Key 1H–1H COSY, 1H–13C and 1H–15N HMBC correlations of minalemine G (1) of the free-base form of minalemine H (2).

Minalemine H (2) showed a [M + H]+ at m/z 533.4172 by HRESIMS, corresponding to the molecular formula C29H53N6O3+. Analysis of 1D and 2D NMR of the TFA salt form of 2 showed broad signals for the methine and methylene protons of FA and N-Me-Gly, resulting in a lack of key correlations for these subunits. Consequently, compound 2 was converted to a free base form by eluting its methanolic solution through an amino SPE cartridge. Figure 4 shows the comparison between the NMR spectra of the TFA salt and free base forms of 2, highlighting the FA-(N-Me-Gly) region. The 1D and 2D NMR data of the free base form of 2 showed clearer signals, multiplicities, and correlations, supporting the structure elucidation outlined below.

Fig. 4
Fig. 4
Full size image

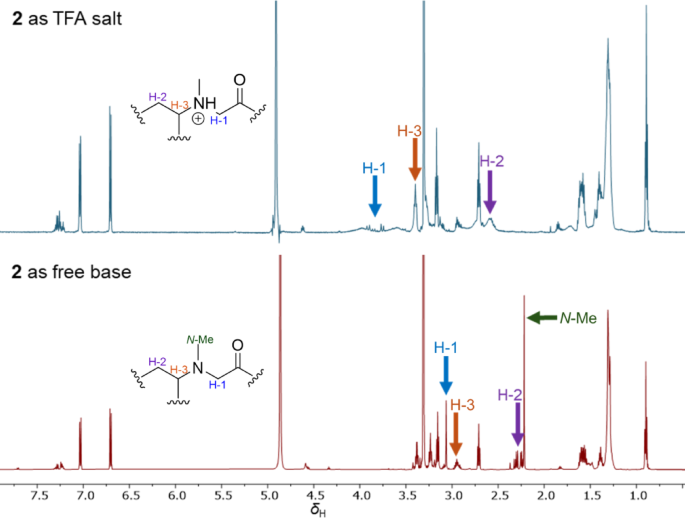

Comparison of signals on 1H NMR spectra between TFA salt and free base forms of compound 2 in MeOH-d4.

NMR data revealed structural resemblance between compounds 1 and 2 by sharing one Hagma and FA subunits. Additionally, the 1H NMR spectrum of 2 showed two singlets at δH 3.06 and δH 2.21, with reciprocal 1H–13C HMBC correlations, forming an N-Me-Gly moiety. An 1,4-disubstituted aromatic containing two doublet of doublets at δH 6.70 (Tyn-H5/H7) and δH 7.03 (Tyn-H4/H8) with coupling constants of 2.2 and 8.5 Hz, was connected to two methylenes at Tyn-C2 (δC 35.6) and Tyn-C1 (δC 42.3) through HMBC correlation, establishing a tyramine (Tyn) subunit. The Tyn and FA substructures were connected through correlations between Tyn-H1 (δH 3.37) and FA-H2 (δH 2.24/2.31) to the carbonyl at FA-C1 (δC 175.0). The FA moiety showed HMBC correlations from FA-H3 (δH 2.94) to the methyl and methylene of the N-Me-Gly subunit. Additionally, N-Me-Gly was attached to Hagma, as shown by correlations from N-Me-Gly-H1 (δH 3.06) and Hagma-H1 (δH 3.23) to the carbonyl group at N-Me-Gly-C2 (δC 174.2). As observed for 1, compound 2 also showed a low specific rotation value, \({\left[\alpha \right]}_{\text{D}}^{24}\) of − 4.44. Chiral chromatographic analysis indicated a 7:3 enantiomeric ratio, revealing it as a scalemic mixture. Compound 2 was identified as a new natural product, and named minalemine H.

Exploring minor metabolites using neutral loss graph method

Due to challenges during isolation and limited availability of organic extract material, only compounds 1 and 2 were isolated in sufficient quantities for complete structural characterization by NMR. However, LC–MS analysis of the fractions revealed several additional peaks with similar ionization profiles, suggesting the presence of analogues of 1 and 2. To explore the chemodiversity of these minor metabolites, we developed the neutral loss graph (NLG), a mass spectrometry-based approach that uses a combinatorial neutral loss analysis to explore structural similarities of closely related compounds. The NLG uses LC-MS2 experimental data to generate a list of all existing neutral losses within each m/z feature. Then, key neutral losses from the target compounds serve as probes for pair-wise similarity analysis, with the output displayed as a network graph (Fig. 5).

Fig. 5
Fig. 5
Full size image

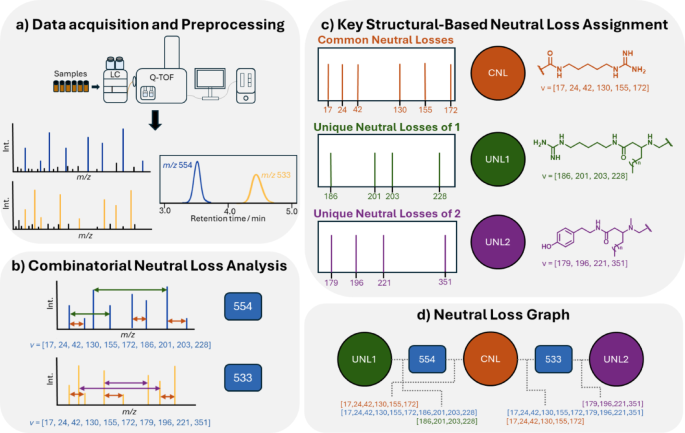

The concept of neutral loss graph (NLG). a LC–MS/MS data acquisition and preprocessing combining feature detection and alignment. b Combinatorial analysis of experimental neutral losses between all ions in a m/z feature. c Determination of key structural neutral losses for each core. d Calculation of similarity vectors and network construction results in an NLG.

To explore the chemodiversity of D. granulatum using NLG method, fractions 1–7, generated from the SPE fractionation, were analyzed by LC-MS2 in a data-dependent acquisition mode (DDA). The raw data (.d) was converted to an open-source format (mzML) and preprocessed on MZmine 3.4.27, where the aligned feature list was exported as a mgf file. This file was then used for a combinatorial neutral loss analysis, calculating all-to-all mass differences, from the precursor ion to its fragments, and between fragments within the same m/z feature, generating a new mgf file. Parallel to that, three sets of target neutral losses were established: common neutral losses (CNL), unique neutral losses of 1 (UNL1), and 2 (UNL2). The CNL contained six neutral losses (Table S2) related to the Hagma unit found in compounds 1 and 2, consisting of small mass losses such as NH3 and CHN, and medium mass losses, such as C7H16N4O. The UNL1 encompassed four larger neutral losses related to Hagma-FA-Gly, substructures of 1, while UNL2 was comprised of four large neutral losses related to Tyn-FA-N-Me-Gly substructures of 2. The neutral loss graph was then built by creating a pair-wise similarity matrix, comparing the combinatorial neutral loss of each m/z feature and the sets of CNL, UNL1 and UNL2. Figure 6 shows the cluster containing minalemines present in the NLG displayed on Cytoscape, where all features not directly connected to the CNL, and UNL1, or UNL2 were excluded. This cluster showed a total of fourteen m/z features with edges connecting them to the CNL and UNL1 or UNL2 (Fig. 6).

Fig. 6
Fig. 6
Full size image

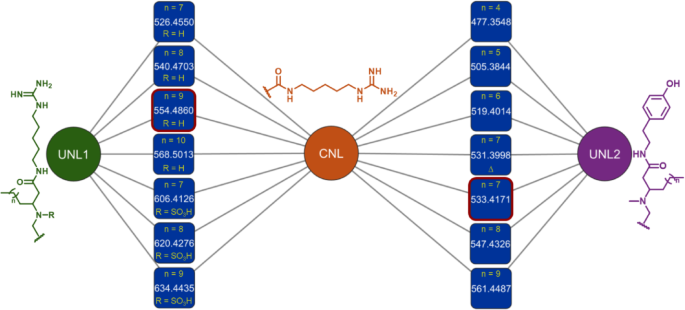

Minalemine’s cluster on the neutral loss graph (NLG). The common neutral loss (CNL) represents the shared subunit of Hagma. The unique neutral loss 1 (UNL1) corresponds to the unique subunits of Hagma-FA-Gly from minalemine G (1, node m/z 554.4860). While the unique neutral loss 2 (UNL2) is composed by Tyn-FA-N-Me-Gly, specific subunits of minalemine H (2, node m/z 533.4171).

Minalemine G (1, m/z 554) clustered with six other m/z features (Fig. 6, Table S3) showing edges to the groups of neutral losses CNL and UNL1, indicating related substructures among them. Analysis of MS1 spectra for features m/z 526, 540, and 568 showed differences of -28, -14, and + 14 Da, respectively, compared to the monoprotonated molecule [M + H]+ of 1. Characteristic fragments such as [M + H–C7H16N4O]+, [M + H—C8H18N4O]+, [M + H–C8H19N5O]+ and [M + H–C9H20N6O]+, suggested these features to be part of a homologous series of 1, differing only in FA chain length. The MS2 data of features m/z 606, 620, and 634 showed an additional neutral loss of SO3H (79.956 Da), comprising fragment ions at m/z 526, 540 and 554 respectively, suggesting their structures to be sulfamic acid-containing compounds, analogous to previously reported minalemines D-F containing sulfamic acid group at Gly-N124.

Minalemine H (2, m/z 533) shared connection with CNL and UNL2, as well as six other m/z features (Fig. 6, Table S3). Analysis of MS1 spectrum of features m/z 477, 505, 519, 547 and 561 showed differences of -56, -28, -14, + 14, and + 28 Da compared to the monoprotonated molecule [M + H]+ of 2. MS2 spectra of these features displayed the same fragmentation pattern as 2, with characteristic fragment ions such as [M + H–C10H13NO2]+, [M + H–C10H16N2O2]+, [M + H–C11H5N3O2]+ and [M + H—C17H29N5O3]+, indicating that these m/z features form a homologue series of 2. Inspection of MS1 spectrum of feature m/z 531 implied an additional unsaturation compared to 2. MS2 analysis revealed a -2 Da difference for most fragment ions, except for m/z 216 [M + H–C20H29NO2]+ and m/z 199 [M + H–C20H32N2O2]+, which are fragments without the FA chain, strongly suggesting the position of the unsaturation to be at that subunit.

Antimicrobial activity

The minimum inhibitory concentration (MIC) of minalemines G (1) and H (2) were established for various bacterial and fungal strains (Table 2, Fig. S5), which included E. coli wild-type (BW25113) and E. coli tolC efflux-deficient (JW5503-1), P. aeruginosa efflux-mutant (PAM 1626), S. aureus wild-type (ATCC 29213), E. faecalis wild-type (ATCC29212), vancomycin-resistant E. faecium (VRE, ATCC 700221), C. albicans (ATCC90028), and A. fumigatus (ATCC MYA-3626). Levofloxacin served as positive control for bacterial strains, while amphotericin B was used for the fungal strains. Minalemines G (1) and H (2) did not show antifungal activity against C. albicans or A. fumigatus, but both compounds showed activity against S. aureus, with MIC values of 0.62 µg/mL for 1 and 2.50 µg/mL for 2. Furthermore, the Gram-negative E. coli tolC efflux-deficient strain was more susceptible to both compounds than the E. coli wild type, suggesting these compounds could be substrates of the tolC efflux pumps. Minalemine G (1) also exhibited a MIC value of 5.00 µg/mL against the efflux mutant strain of P. aeruginosa.

Table 2 Minimum inhibitory concentration (µg/mL) of minalemines G (1) and H (2) against selected bacterial and fungal strains.
Full size table

Discussion

Antimicrobial activity guided-isolation of the active principles from the organic extract of the tunicate D. granulatum resulted in the purification of two new guanidine alkaloids, named minalemines G (1) and H (2). Compounds 1 and 2 are new representatives of the minalemine class, previously composed of six compounds, minalemines A-F, isolated from a D. rodriguesi collected in New Caledonia24. The minalemines G (1) and H (2) described here differ from those previously reported by the absence of a leucine residue, along with the substitution of the agmatine subunit with homoagmatine in compound 1, and with tyramine in 2.

The chemical structure of a compound is directly reflected in fragment ions displayed in its MS2 spectrum. Even analogues with subtle structural modifications can exhibit fragments with distinctive m/z values25. Visualization tools, such as feature-based networks, can explore similarities in MS/MS fragmentation between known and unknown compounds, expanding the annotation and assisting in the dereplication efforts, leading to new discoveries26,27. These innovative approaches have facilitated the identification of new compounds at a faster pace, ushering natural products research into a new era19,26,28. However, analogues tend to show similar fragmentation pathways, which are disclosed by their neutral losses. Neutral loss has been used for spectral similarity analysis and metabolite annotation29, and to enhance molecular similarity analysis in METLIN25. Additionally, the use of neutral loss has been shown to outperform the cosine similarity for numerous small molecules30. Even though traditional molecular networking approaches combine fragment ions and neutral loss matches using a modified cosine score, it still relies on overlapped fragment ions in order to cluster two compounds together30. The minalemines presented no fragment overlap in the MS/MS (Fig. S6), failing to cluster both compounds together. This observation led us to develop the neutral loss graph method, a modified approach that relies on neutral loss analysis to propagate the annotation of target compounds. When applied to D. granulatum at the fraction level, NLG resulted in the annotation of twelve additional analogues of compounds 1 and 2. Six analogues of 2 form a homologous series, differing only in the length of the FA moiety. Moreover, m/z features annotated as analogues of 1 include a homologue series of minalemine G, and their respective sulfamic acid derivatives. The NLG demonstrates the applicability of neutral loss analysis as an alternative method for exploring a chemical space, leading to the annotation of minor metabolites and providing insights into their structures. Our results demonstrate that integrating LC–MS/MS data into the dereplication workflow is a reliable strategy to reveal minor compounds of interest, opening possibilities for further research to better explore chemical, biological, and pharmacological space.

Minalemines G (1) and H (2) demonstrated antibacterial activity, with compound 1 showing notable activity against the Gram-positive S. aureus. The more potent activity of 1 suggests that the addition of charged sites in its structure enhances its potency. The amphiphilic nature of the minalemines could lead to cell membrane disruption. However, their lower MIC against specific strains makes it reasonable to suggest that these compounds may possess a different mechanism of action31. Maccari and collaborators synthesized linear and cyclic di-guanidine compounds that exhibit potent antibacterial activity. Their structure–activity relationship (SAR) findings showed that modifications to the linker, altering the distance between the guanidine groups, along with derivatization by different substituents, significantly change the activity31. One of their synthetic compounds comprising two guanidine subunits linked by a chain of two series of eight methylenes with a secondary amine in the center, and a 1-methylenecyclopropyl group on one guanidine moiety (Fig. S7), showed MIC value below 0.125 µg/mL against a strain of Gram-positive bacteria Streptococcus pyogenes31. These results indicate that SAR studies could enhance the minalemine class as antibacterial leads for further development.

Methods

General procedures

Optical rotations were measured on a Rudolph Research Analytical AUTOPOL IV automatic polarimeter with a 0.25 dm path length cell in methanol at 25 °C. UV spectra were recorded as methanol solutions on a Varian Cary 50-Bio UV/Vis spectrophotometer. FTIR spectra were recorded as thin films on a Bruker Alpha II spectrometer. NMR spectra were recorded at 25 °C on either a Bruker Avance III HD spectrometer, equipped with a 5 mm TCI Cryo-Probe Prodigy or a Bruker Avance III spectrometer equipped with a 3 mm TCI cryogenic probe, both operating at a frequency of 600 MHz for the 1H nucleus, 151 MHz for the 13C nucleus, and 60 MHz for the 15N nucleus. For the 3 mm TCI cryogenic probe, all 2D NMR experiments were acquired with non-uniform sampling (NUS) set to 25% using the standard Bruker pulse sequences. For the 5 mm TCI cryogenic probe, all 2D NMR experiments were acquired with non-uniform sampling (NUS) set to 40% for 1H‒1H detected experiments or 35% for 1H‒13C detected experiments using the standard Bruker pulse sequences. Spectra were calibrated to residual solvent signals at δH 3.31 and δC 49.0 for MeOH-d4 or δH 2.50 and δC 39.5 for DMSO-d6. The δN values were not calibrated to an external standard but were referenced to neat NH3 (δN 0.00) using the standard Bruker parameters. NMR FID processing and data interpretation was done using MestReNova software, version 15.0. Semi-preparative scale HPLC purification was performed with a Gilson HPLC purification system equipped with a GX-281 liquid handler, a 322-binary pump, and a 172-photodiode array detector. All solvents used for chromatography and UV were HPLC grade, and H2O was Millipore Milli-Q PF filtered.

High-resolution mass spectra were recorded on an Agilent 1260 Infinity II UHPLC system coupled to an Agilent 6545 QToF equipped with a dual AJS ESI source. A Kinetex C18 column (50.0 × 2.1 mm, 1.7 μm, 100 Å Phenomenex) was used. The mobile phase consisted of H2O + 0.1% formic acid (A) and MeCN + 0.1% formic acid (B) at a flow rate of 0.7 mL/min. The gradient used was maintained at 95:5 (A:B) for 0.5 min, from 95:5 to 0:100 (A:B) for 8.0 min, maintained at 0:100 (A:B) for 0.5 min, from 0:100 to 95:5 (A:B) for 0.5 min and then equilibrated in a post-run at 95:5 (A:B) during 1.0 min. The positive mode ESI conditions were 3 kV of capillary voltage, 1 kV of nozzle voltage, gas temperature at 300 ˚C and gas flow of 10 L/min. The data dependent acquisition (DDA) mode was used, under the following parameters: positive ionization; acquisition time from 0.5 to 9 min; m/z range 100–3200; scan time of 0.5 s; isolation width ~ 4 amu; precursor selection of 105 absolute intensity; 3 MS/MS per MS survey; mass exclusion real time for 0.15 min; and ramp of collision energy for MS/MS 20–30 eV for the lowest mass (m/z 200), 40 eV for m/z 800, 50–70 eV for m/z 1500, and 50–70 eV for the highest mass (m/z 3000).

Collection, extraction, and isolation

The tunicate D. granulatum was collected in a depth range of 8–13 m in Northern Australia in September 2002 by the Museum & Art Gallery of the Northern Territory under contract to the Natural Products Branch, Developmental Therapeutics Program, Division of Cancer Treatment and Diagnosis, NCI. The specimen was taxonomically identified by Dr. Patricia Kott Mather, and a voucher (0M9H2221) was deposited at the Smithsonian Institution. The ascidian (wet weight 1110 g) was extracted in water, followed by a MeOH/DCM overnight soak according to the Natural Products Branch’s standard marine extraction procedure32, to provide 6.17 g of the organic extract (NSC #C23983). A portion of the organic extract C23983 (3.5 g) was prefractionated on a C8 SPE column (20 g), generating seven fractions33: 95:5 H2O:MeOH (C23983_1), 80:20 H2O:MeOH (C23983_2), 60:40 H2O:MeOH (C23983_3), 40:60 H2O:MeOH (C23983_4), 20:80 H2O:MeOH (C23983_5), 0:100 H2O:MeOH (C23983_6), 50:50 MeCN:MeOH (C23983_7).

Fractions C23983_3–7 were combined (1.7 g, named C23983_3) and subjected to five HPLC separations using mobile phase of H2O + 0.5% TFA (solvent A) and MeCN + 0.5% TFA (solvent B). (I) HPLC separation using a Kinetex C8 column (150 × 21.2 mm, 5 μm, 100 Å, Phenomenex) on a gradient of 95:5 to 0:100 (A:B) for 23 min at 9.0 mL/min, and fraction collection was performed in 0.33 min increments. HPLC fractions 30–49 (159 mg, named C23983_3_30) were combined and subjected to (II) separation using Luna C4(2) column (250 × 10 mm, 5 μm, 100 Å, Phenomenex) on a gradient of 68:32 to 50:50 (A:B) for 34 min at 3.8 mL/min, and fraction collection was performed in 0.50 min increments. HPLC fractions 25 – 50 (53 mg, named C23983_3_30_25) were combined and subjected to (III) separation using Luna C4(2) column (250 × 10 mm, 5 μm, 100 Å, Phenomenex) on a gradient of 67:33 to 55:45 (A:B) for 32 min at 3.8 mL/min, and fraction collection was performed in 0.33 min increments. HPLC fractions 45–49 (5.5 mg, named C23983_3_30_25_45) were combined and subjected to (IV) separation using Luna C4(2) column (250 × 10 mm, 5 μm, 100 Å, Phenomenex) on a gradient of 65:35 to 62:38 (A:B) for 31 min at 3.8 mL/min, and fraction collection was performed in 0.33 min increments yielding minalemine G (3.4 mg, 0.10% of organic extract yield; 1). HPLC fractions from separation (III) 55–59 (4.6 mg, named C23983_3_30_25_55) were combined and subjected to (V) separation using Luna C4(2) column (250 × 10 mm, 5 μm, 100 Å, Phenomenex) on a gradient of 65:35 to 60:40 (A:B) for 29 min at 3.8 mL/min, and fraction collection was performed in 0.33 min increments yielding minalemine H (3.9 mg, 0.11% of organic extract yield; 2).

Minalemine G (1): colorless oil, \({\left[\alpha \right]}_{\text{D}}^{24}\) − 2.97 (c 0.31, MeOH); UV (MeOH) λmax (log ε) 220 (5.67) nm; IR (film) νmax 3268, 3182, 2926, 2857, 1648, 1549, 1524, 1454, 1368, 1235, 1191, 828, 709 cm-1 (Fig. S8); 1H and 13C data in MeOH-d4 and DMSO-d6 are in Tables 1 and S4 and in Figs. S9–S28; HRESIMS m/z 554.4873 [M + H]+ (calcd. for C28H60N9O2+ m/z 554.4865, Δ = 1.44 ppm, Figs. S29–S30).

Minalemine H (2): colorless oil, \({\left[\alpha \right]}_{\text{D}}^{24}\) − 4.44 (c 0.45, MeOH); UV (MeOH) λmax (log ε) 220 (5.87), 278 (5.12) nm; IR (film) νmax 3339, 3292, 3193, 3112, 2928, 2857, 1669, 1576, 1435, 1202, 1184, 1136, 839, 802, 723 cm-1 (Fig. S31); 1H and 13C data in MeOH-d4 and DMSO-d6 are Tables 1 and S4 and in Figs. S32–S47; HRESIMS m/z 533.4172 [M + H]+ (calcd. for C29H53N6O3+ m/z 533.4174, Δ = − 0.37 ppm, Figs. S48–S49).

Compound identification of active subfraction using LC–MS/MS data

The UHPLC-MS/MS data from active subfractions C23983_4_1 to 9 was acquired using the method described above in the general procedures section. The raw data files (.d) were converted to mzML files by MSConvert 3.0.22 (ProteoWizard), with binary encoding precision 64-bit, write index and applied filter of peak picking MS levels 1–2. The mzML files were uploaded to MZmine 3.4.2734. Mass detection for MS1 and MS2 was performed using the mass detector centroid and noise level of 1.0E2. Chromatograms were reconstructed using the function ADAP Chromatogram Builder with retention time between 1.0 and 8.5 min, MS level 1, min group size in # of scans 2, group highest intensity 1.0E5, minimum height 1.0E5 and m/z tolerance of 0.005 m/z or 20.0 ppm. Deconvolution was performed using the function “group MS2 scans with features” with MS1 to MS2 precursor tolerance of 0.005 m/z or 20.0 ppm and retention time filter of 0.50 min. The isotopic peak grouper function was applied with m/z tolerance of 0.005 m/z or 20.0 ppm, retention time tolerance of 0.50 min, maximum charge of 3, and most intense peak as the representative isotope. Data were aligned using the function join aligner, with m/z tolerance of 0.005 m/z or 20.0 ppm, weight for m/z of 75, RT tolerance of 0.5 min and weight for RT of 25. The feature list generated after the described steps was exported using the function Export/Submit to GNPS, generating one mgf and one csv file.

The generated csv file was used to search against an in-silico library comprising 182 compounds from the genus Didemnum assembled from the Dictionary of Natural Products database. First, the accurate mass of m/z features present in the active subfractions of D. granulatum was searched against an in-silico library comprising protonated molecules and sodium adducts with exact mass (± 20 ppm). A comparison between the MS2 spectrum of annotated features and literature reports was then used to support the annotation.

Competing enantioselective conversion (CEC)

The CEC reaction followed by LC–MS analysis was based on a previously described procedure23,35. Compound 1 (0.20 mg, 0.36 μmol) was transferred to two different vials, and dimethylformamide (90 μL) was added as an organic solvent. The catalysts S- and R-HBTM (5.0 μL, 4.3 μmol) were added to their respective vials, along with N,N-diisopropylethylamine (0.7 μL, 4.3 μmol). Propionic anhydride (0.5 μL, 4.3 μmol) was added to initiate the reaction. Aliquots of 2 μL were taken every 5 min and quenched with 100 μL of MeOH prior to LC–MS analysis, for a total reaction time of 60 min.

Aliquots (5 μL) of the samples collected at different time intervals were injected on an Agilent 1260 Infinity II HPLC system coupled to an Agilent 6230 ToF equipped with a dual AJS ESI source. A Kinetex C18 column (50.0 × 2.1 mm, 5 μm, Phenomenex) was used for the analysis. The mobile phase consisted of H2O + 0.1% formic acid (A) and MeCN + 0.1% formic acid (B) at a flow rate of 1 mL/min. The gradient used was maintained at 95:5 (A:B) for 1.0 min, from 95:5 to 0:100 (A:B) for 8.0 min, maintained at 0:100 (A:B) for 1.0 min, from 0:100 to 95:5 (A:B) for 0.5 min and then equilibrated in a post-run at 95:5 (A:B) during 1.5 min. The positive mode ESI conditions were 3.5 kV of capillary voltage, 1.5 kV of nozzle voltage, gas temperature at 325 °C and gas flow of 10 L/min. MS spectra were acquired using positive mode, mass range of m/z 100‒3000, and scan rate of 1 spectra/s. The reaction rates were determined by measuring the peak areas of the fully acylated derivative of compound 1, using the extracted ion chromatogram (EIC) for the sodiated molecule [M + Na]+ at m/z 722.5651 (± 20 ppm) on MassHunter Qualitative Analysis 10.0 software.

Chiral chromatography

The chiral chromatography analysis were performed on a Shimadzu system equipped with a CBM-40 controller, an SPD-M40 PDA detector, and two LC-20AR pumps. A Lux amylose-3 column (250.0 × 4.6 mm, 5 μm, Phenomenex) was used for the analysis. The mobile phase consisted of H2O + 0.1% TFA (A) and MeCN + 0.1% TFA (B) using an isocratic mode at 80% of B at a flow rate of 1 mL/min. The injection volume was 5 µL.

LC–MS/MS analysis and data processing for creating the neutral loss graph

UHPLC-MS/MS data on the scale-up fractions after C8 SPE (C23983_1–7) was acquired, converted to mzML, and processed using MZmine using the same parameters as described in the compound identification section. The mgf file was used for a combinatorial neutral loss analysis within each MS2 spectrum, where the mass difference was calculated for the precursor ion and its fragments, and between fragments within the same feature. The combinatorial analysis generated a mgf file containing neutral losses for each m/z feature.

Three sets of target neutral losses were established, namely common neutral losses (CNL), and unique neutral losses of 1 (UNL1) and 2 (UNL2). The CNL contained six neutral losses from the Hagma unit in compounds 1 and 2 (Table S2). The UNL1 is constituted by four larger neutral losses from Hagma-FA-Gly, substructures of 1 (Table S2), while UNL2 is composed of four neutral losses from Tyn-FA-N-Me-Gly, substructures of 2 (Table S2).

Neutral loss graph package

A simplified version of the molecular networking algorithm36 was used to generate a neutral loss graph. The similarity of two features was based on the intersection of their respective neutral loss vectors. Neutral losses for a given feature were derived from the all-to-all differences of the MS2 peak. Given two features with neutral loss vectors v1 and v2, the similarity between features was calculated as:

$$0 \le {\text{max}}\left( {\frac{{\sum_{{x \in \left( {v_{1} \cap v_{2} } \right)}}^{x} }}{{\sum_{{x \in v_{1} }}^{x} }}, \frac{{\left| {v_{1} \cap v_{2} } \right|}}{{\left| {v_{1} } \right|}}} \right) \le 1$$

A pair wise matrix of all similarities (1 representing a complete or proper subset) was used as input for generating an undirected adjacency graph. The resultant graph object was exported as a graphml file to be imported and visualized using Cytoscape 3.9.137 (Fig. S50). The algorithm implementation was written using the R statistical computing software (version 4.3.0)38. The MSnbase package39,40 was used to process mgf files and the igraph package41 to build the network and generate the graphml file. Code is available on GitHub at https://github.com/NCI-DCTD/neutralLossGraph.

Antimicrobial assay

Microbes, growth, and testing conditions were identical to those reported previously for the primary screen16.
