Fig. 2 | Scientific Reports

Fig. 2

From: The transcriptomic response of Staphylococcus equorum KS1030 to Lincomycin stress reveals transporters associated with horizontal gene transfer

Fig. 2

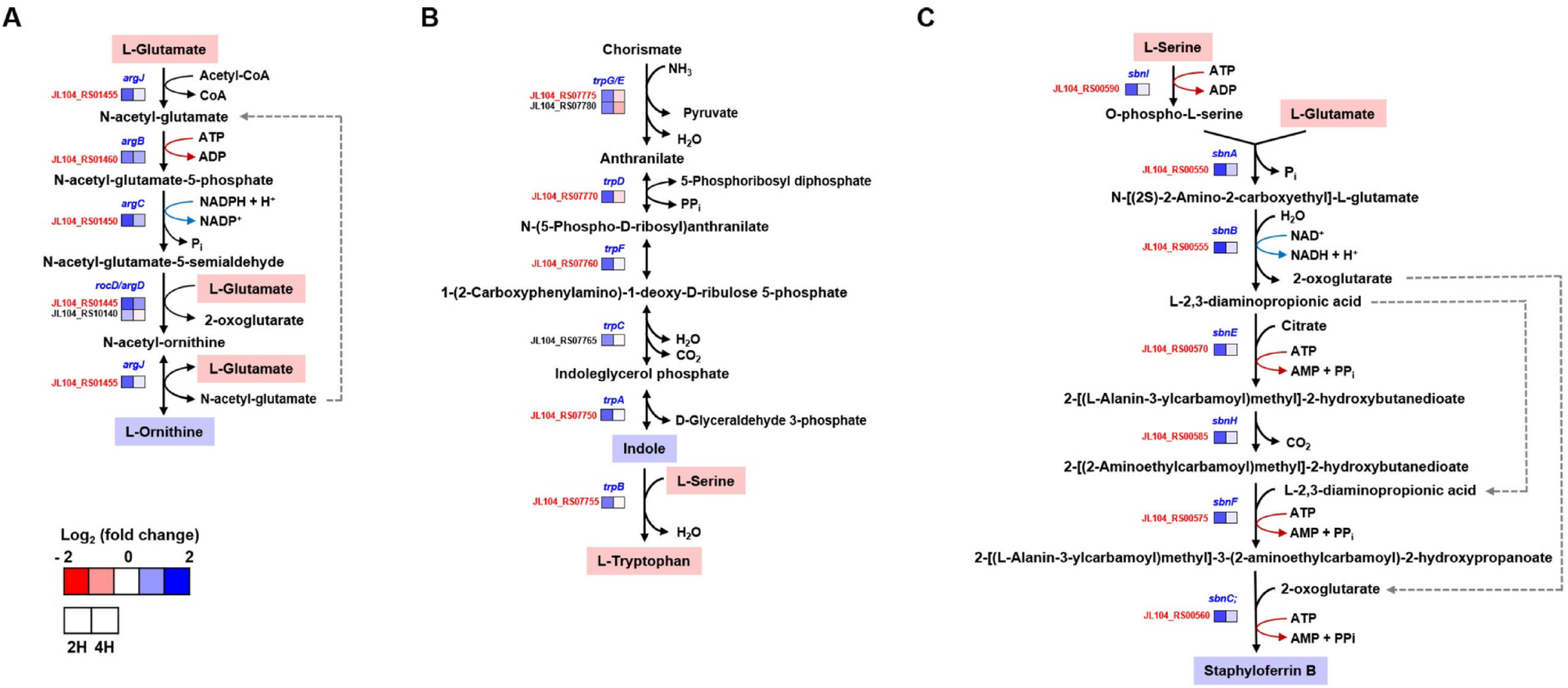

Metabolic pathways associated with DEGs of S. equorum KS1030 under lincomycin exposure. (A) Ornithine biosynthesis, (B) tryptophan biosynthesis, and (C) staphyloferrin B biosynthesis pathways are shown. Gene names are labeled in blue, and DEG locus tags are highlighted in red. Biosynthetic compounds are represented in light purple boxes, and related amino acids are shown in light pink boxes. Expression levels at 2 h and 4 h after lincomycin exposure are indicated adjacent to each locus tag on log₂ fold-change values.
