Fig. 5
From: Development of a portable avian influenza virus characterisation system: bringing the inside-out

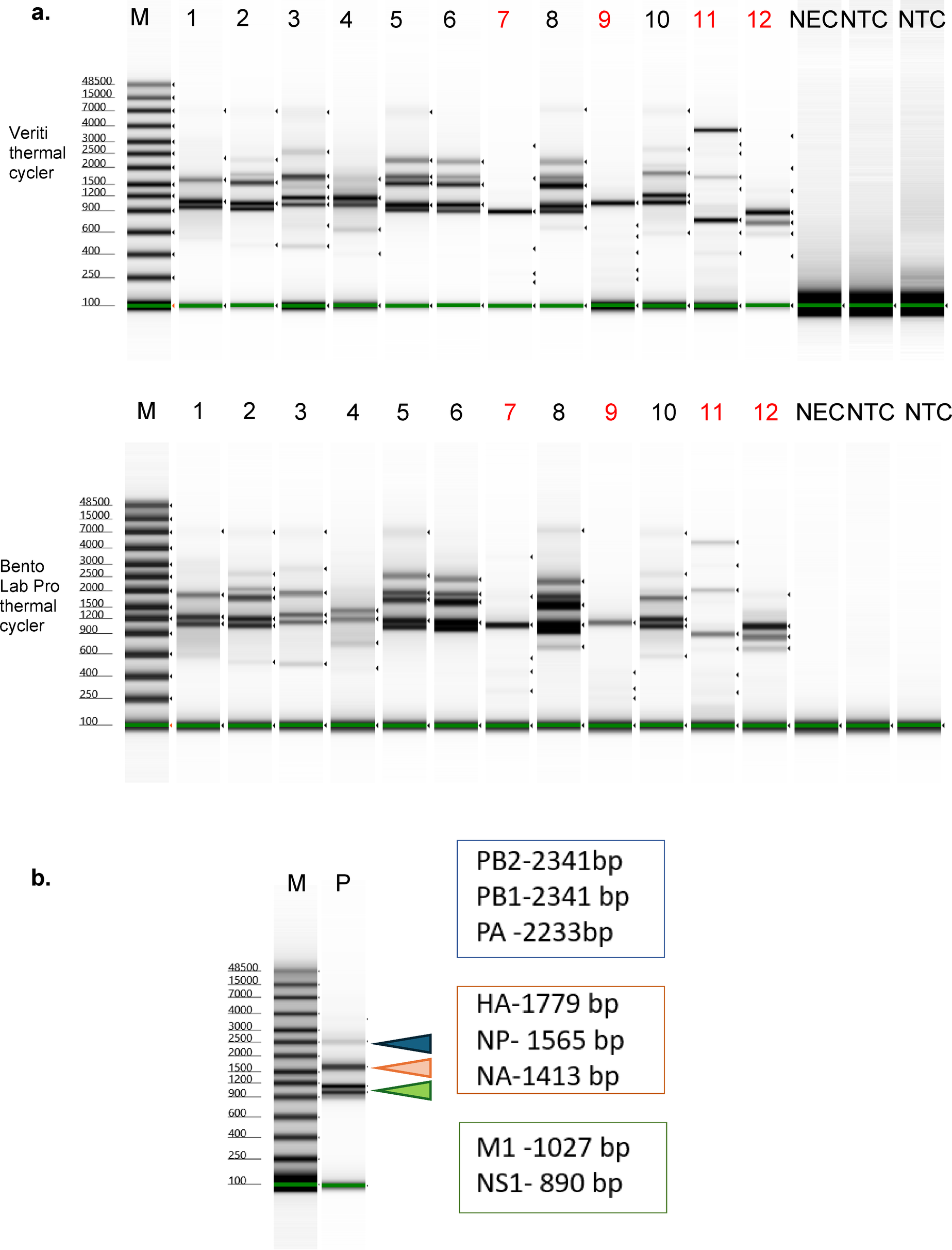

AIV-specific amplicons profile on TapeStation 4200 gel images using the gDNA ScreenTape assay. a AIV isolates from sample set 1 that have undergone AIV multi-segment RT-PCR whole-genome amplification on Bento Lab Pro thermal cycler (portable system) and the Veriti thermal cycler (laboratory-based system). Sample numbers in black are AIV-positive samples showing AIV-specific amplicon profile. Sample numbers in red are AIV-negative samples with non-specific amplification. b AIV-specific amplicon profile for AIV-positive sample. Lane M, molecular standards. Lane P, amplicons from an AIV-positive sample. The image was cropped to show one example of a positive sample. Full image shown in Supplementary Fig. 4.
