Introduction

To promote a more environmentally sustainable approach to reservoir development and carbon dioxide storage, it is essential to adopt innovative methods. Currently, significant challenges related to environmental degradation and the depletion of finite energy resources, particularly fossil fuels, have emerged1,2. In response, the European Union has prioritized carbon capture and sequestration and carbon capture and utilization in its Strategic Energy Technologies plan, as outlined in various research and innovation roadmaps3,4. Properly managing the storage of carbon dioxide in deep geological formations can significantly mitigate the risk of environmental contamination5,6. Under certain conditions, carbon dioxide can extract lighter components from oil, altering its properties. This extraction leads to a decrease in the solubility of heavier components, such as asphaltenes, which can subsequently precipitate out of the oil7,8,9. In this regard, asphaltene deposition is a severe flow assurance issue to oil and gas production that costs the industry a remarkable loss. Generally, asphaltene is not soluble in paraffinic solvents with low molecular weight, including n-heptane and n-pentane10,11,12,13,14,15. At first, asphaltene is stable in the crude oil and if any disturbance to this stability occurs, such as pressure depletion because of production drawdown, asphaltene begins to precipitate16,17,18,19,20,21,22,23. According to the classical colloidal model24, the asphaltene is in the micelle core surrounded by resin molecules25. The colloidal stability of crude oil during the oil production process is fragile and easily impacted by solution gas release and changes in pressure and temperature26,27,28,29,30. Generally, the stability of the crude oils colloidal system is highly sensitive to these factors, which can trigger a sequence of asphaltene aggregation, beginning with accumulation, progressing to flocculation, and culminating in precipitation31. These deposition phenomena pose significant flow assurance challenges, ultimately reducing injectivity and elevating operational costs32,33,34,35. It is worth noting, chemical inhibition is a primary strategy to manage asphaltene precipitation in production systems. Common classes of inhibitors act as dispersants by adsorbing onto asphaltene nanoaggregates and preventing their flocculation through steric repulsion36,37,38,39. Generally, water injection is a widely adopted oil recovery method, with low-salinity water flooding emerging as an improved technique for enhancing recovery efficiency40,41,42,43,44,45,46,47,48. A common consequence of this practice, however, is high water production, which presents a major operational challenge. Interestingly, the resulting produced water offers a potential opportunity; the injection wells and disposal aquifers used for this water can be repurposed for carbon sequestration near oil fields49,50,51. In this regard, a critical complication arises because this disposed water often contains a microemulsion of residual oil droplets. The introduction of CO2 into this environment can destabilize these droplets, creating a significant risk for asphaltene precipitation and jeopardizing the sequestration process52,53,54. Mokhtari et al. (2019) examined the effect of injected brine salinity on asphaltene instability. They indicated that in low salinity, the existence of the polarity of the oil-brine interface is effective in the adsorption of asphaltenes55. Shahsavani et al. (2021) investigated how an emulsified aqueous phase in synthetic oils influences asphaltene precipitation. They analyzed the impact of ions on the interaction between asphaltenes and the oil/water interface through interfacial rheology and droplet size measurements. Their findings revealed that higher valence ions, such as Fe3+, significantly reduced the size of water droplets in the emulsion and led to an increased retention of asphaltenes56. Tajikmansori et al. (2023)57 examined how the physicochemical characteristics of asphaltenes and resins, along with the concentration and type of dissolved ions (such as MgCl2, CaCl2, and Na2SO4) in the aqueous phase, influence interfacial interactions. In this regard, they evaluated the properties of asphaltene molecules using zeta potential measurements. Their findings indicated that resin molecules quickly occupy the interface due to their smaller relative molecular mass and size. Additionally, they found that the negative polar sites on the structures of asphaltenes and resins exhibited greater activity compared to the positive sites. In the past, the EOR performed by immiscible CO2 injections is especially proposed for its effective sweep efficiency, oil-viscosity reduction, oil-swelling effect, low-pressure requirements, and significant reduction of greenhouse gas emissions58,59. Peysson et al. (2014)60 investigated gas injection into wells during carbon dioxide storage operations in saline aquifers. They stated that the injection of gas in the saline aquifers may lead to salt precipitation and drying near the wellbore. Wang et al. (2018)61 investigated the likelihood of asphaltene depositions under carbon dioxide injections at different reservoir conditions. Their observations indicated that carbon dioxide concentration is the main factor to consider in asphaltenes deposition. Indeed, the thermodynamic conditions and gas injection fraction at which the carbon dioxide flooding is performed which is very important in the investigation of asphaltene deposition. Cho et al. (2019)62 investigated the impacts of formation damage caused by asphaltene deposition on three-phase hysteretic models for the prediction of coupled carbon dioxide EOR and storage performance. The results showed that formation damage by asphaltene deposition caused a 9% decrease in oil recovery and a 14% increase in water production compared to the model without asphaltene deposition. Hajiabadi et al. (2021)63 investigated the main factors affecting carbon dioxide injection in deep saline aquifers to identify gaps. They also examined the available analytical and numerical mathematical models to estimate the maximum stable injection pressure and pressure build-up. On the other hand, they noted that the primary debates concerning analytical models revolve around the overall configuration of the CO2–brine interface, which arises from either overlooking or making assumptions about CO2 compressibility, the mutual solubility of CO2 and water, and drying effects. Conversely, their study’s findings indicated that models designed to forecast waterflooding processes are unable to accurately assess CO2 injectivity because of the distinct characteristics of CO2. In another study, Yusof et al. (2022)64 investigated the quantification of the change in carbon dioxide injection caused by the solubility between the formation water and carbon dioxide on a laboratory scale through the coreflooding test. The salinity of injected brine was in the range (6000 ppm-100000 ppm). The results showed that there is a direct correlation between the intensity of injection changes caused by salt precipitation and salinity. They showed that as the salinity of the brine increases, the interference with carbon dioxide injection increases (from 6% to 26.7%). As delineated in Table 1, conventional technologies for determining asphaltene deposition are predominantly tailored for the analysis of dead oils with solvents or stable crude oil systems. A significant and persistent gap in the literature is the lack of a methodology for the direct and quantitative measurement of asphaltene precipitation within dynamic, high-turbidity oil-in-water emulsions under reservoir-relevant conditions. This specific scenario is critically important for accurately assessing flow assurance risks in water-disposal zones and water-flooded reservoirs, where residual oil exists as dispersed droplets. The present study directly addresses this technological gap. The innovation of our apparatus is not a mere incremental improvement but a targeted solution engineered for a previously unquantifiable problem. In this regard, while established tools such as Visual Cells and Quartz Crystal Microbalances (QCM)65 are designed for bulk crude oil or surface deposition studies, our apparatus is specifically engineered to investigate oil-in-water emulsions. This is crucial for simulating the environment of water-flooded reservoirs, where the interaction between injected fluids (e.g., CO2) and the residual oil occurs at the droplet interface—a complex scenario where traditional methods are inadequate. Also, the LUMiSizer66 is indeed a tool for analyzing emulsion stability, typically by measuring phase separation kinetics under centrifugal force. However, its standard operational range is often limited to near-ambient pressures and does not typically accommodate the simultaneous injection of high-pressure gases like CO2, which is the core of our investigated process.

Table 1 Comparison of asphaltene deposition measurement methods, perspectives, and limitations.
Full size table

Generally, the safe and efficient implementation of CO2 storage in water disposal zones is critically dependent on accurately forecasting and mitigating asphaltene deposition, a primary risk that can impair injectivity and storage integrity. However, conventional methods for assessing asphaltene behavior are often ill-suited for this specific environment. They typically require large sample volumes and involve complex, time-consuming procedures that do not adequately replicate the oil-in-water emulsion conditions prevalent near disposal wells. This gap underscores a persistent industry need for compact, efficient laboratory equipment capable of evaluating the phase behavior of crude oil in the presence of CO2 within emulsion systems. To address this necessity, the present study introduces an innovative technique and laboratory protocol centered on a miniature pressure-volume-temperature (PVT) cell coupled with in-situ NIR spectroscopy. This apparatus is specifically designed to monitor potential asphaltene precipitation in real-time, tracing any instability within aqueous phases containing oil droplets during CO2 injection. By providing a rapid and precise method to de-risk this storage strategy, this research delivers a valuable contribution to flow assurance.

Experimental section

Materials

The fluids used in this study consist of brine solutions (Table 2) and crude oil (Table 3). In this study, oil in water EMs were prepared using FW-crude oil, SW-crude oil, 2DSW-crude oil and 10DSW-crude oil. The high-salinity waters used in this study were synthetically prepared in the laboratory. The base SW was synthesized by dissolving a specific blend of salts into one liter of distilled water. To investigate the effect of increased salinity, two further solutions were prepared using an identical salt composition but at higher concentrations: one with 2DSW and another with 10DSW. The synthesis waters were designed to mimic the ionic composition of Persian Gulf Sea water. Additionally, a synthetic formation water, designed to mimic the ionic composition of formation water, was prepared. In all cases, after the salts were completely dissolved by stirring, the resulting brine was filtered through filter paper to remove any potential undissolved impurities. The filtrate collected after this filtration step was used as the final synthetic water for the experiments. In this study, the colloidal instability index (CII) was used to assess the stability of the crude oil. This index represents the ratio of the sum of asphaltenes and saturates to the sum of resins and aromatics. A CII value greater than 0.9 indicates an unstable crude oil73. Based on SARA data, the reservoir oil CII value of 2.57 suggests a high potential for asphaltene precipitation.

Table 2 The detailed analysis of the FW, SW, 2dSW, and 10dSW.
Full size table
Table 3 The physical properties of crude oil from an Iranian oil reservoir.
Full size table

Experimental setup

The precise identification of asphaltene precipitation conditions in oil reservoirs remains a significant challenge. This study employs a near-infrared (NIR) technique to investigate asphaltene deposition in EM phases contacted with CO2. In this study, a novel miniature high-pressure PVT cell with an integrated in-situ NIR system was designed (Fig. 1) to directly monitor asphaltene instability in opaque oil-in-water emulsions under reservoir conditions. It should be noted that the technology of this innovative device was designed and manufactured at Sharif University of Technology in Iran. The apparatus features a small-volume cell (2 cc, 2 mm thickness) that enables rapid analysis of minimal sample volumes. Asphaltene precipitation is detected in real-time by a decrease in NIR light transmission, caused by particle scattering and absorption. This signal is sent to a data acquisition system which quantifies the amount of precipitated asphaltene. The system minimal dead volume ensures high analytical accuracy, while rigorous calibration underpins the reliability of the data. It is worth noting, the experimental protocol was designed with a strong emphasis on quantification and repeatability. The core measurement of asphaltene precipitation was achieved through repeated in-situ NIR light transmission. The reproducibility of the precipitation onset point and the relative change in transmission intensity was found to be within ± 5% across triplicate runs for key experimental conditions, providing high confidence in the reported trends of decreasing precipitation with temperature and higher CO2 injection rates. Furthermore, the operational parameters were tightly controlled; system pressure was maintained with a transducer accuracy of ± 0.1% of the full scale, and the oven temperature was controlled to within ± 1 °C of the set point. For the IFT measurements, which are crucial for explaining the behavior with 2DSW, each reported value is the average of at least five separate measurements, with a standard deviation consistently less than ± 0.2 mN/m. Generally, the flow chart of the test method is shown in Fig. 2. This integrated apparatus and methodology represent a significant technical advancement, providing a precise and efficient means of screening for asphaltene-related risks in CO2 storage projects.

Fig. 1
figure 1

System designed for EM and asphaltene deposition/precipitation measurement.

Full size image

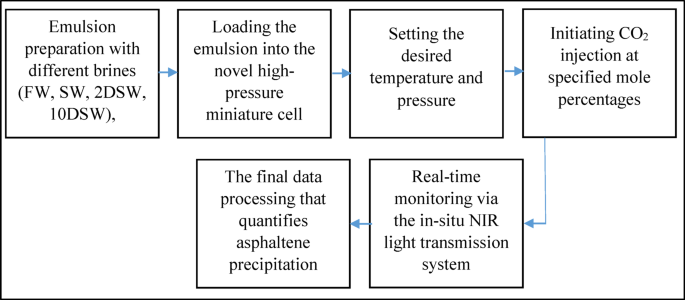

Fig. 2
figure 2

Experimental procedure flow chart.

Full size image

Carbon dioxide

A commercial high-purity CO2 source (≥ 99.99%) was used for all injection experiments. The gas was supplied from a cylinder equipped with a dip tube and delivered using a high-precision syringe pump (ISCO 260D). The pump maintained a constant CO2 supply pressure of 500 psig and was programmed to inject a precise volume, calculated via Eqs. (1–4), to achieve the target mole fraction in the PVT cell. The entire delivery line was thermally jacketed within the oven to maintain isothermal conditions and ensure consistent CO2 density during injection.

Experimental procedure

Near-Infrared (NIR) spectroscopy is a powerful analytical technique used to study the properties of materials, including the characterization of asphaltenes and their precipitation behaviors in crude oil. NIR spectroscopy involves the interaction of NIR light (typically in the wavelength range of 700 to 2500 nm) with a sample. Molecules absorb NIR light due to overtones and combination vibrations of molecular bonds (primarily C-H, N-H, O-H). The instrument measures the intensity of transmitted or reflected light at various wavelengths. The absorbed light causes transitions in molecular vibrations, leading to a spectrum that provides information about the molecular structure and concentration of specific components. On the other hand, NIR spectroscopy allows for rapid, non-destructive analysis, making it suitable for real-time monitoring of asphaltene precipitation in production environments. Continuous monitoring can help operators adjust conditions proactively to minimize precipitation issues. In this study, the asphaltene deposition is simultaneously examined by a newly developed, fast, and reliable NIR spectroscopy technique. In the novel Procedure, only less than 2 ml of sample is required for each test. Thus, in this regard, in the first stage, the EM phase consists of crude oil sample-low salinity water, namely seawater (SW), two times diluted seawater (2DSW), ten times diluted seawater (10DSW) and formation water (FW) was prepared. Therefore, a certain amount of crude oil sample was poured into a container containing FW and mixed using a mixer. Oil/Water EM (oil-in-water) phases were prepared with a ratio of 20:80. The same steps were performed for other low salinity waters (SW, 2DSW and 10DSW) with crude oil. The samples were stirred, corresponding to fluid dynamics at the wellbore region. After preparing the solutions, the oil-in-water EM solution was injected into the cell. In this regard, at first, by opening both valves connected to the tube (numbers 5 and 6) (Fig. 1), the flow lines and the tube were vacuumed. Then, the prepared EM was injected into the tube when the EM sample passed through valve 2 (number 6). In this regard, the outlet valve (number 6) was closed. Thus, the pressure of the system was increased to 20 bar using a syringe pump. Next, the inlet valve (number 2) was closed. Generally, the temperature was adjusted using the controller installed on the apparatus. At first, the light transmission was monitored without a CO2 injection scenario. At the end of the measurement, the asphaltene deposition of the EM was reported using the LED detector. The same procedure was performed for all emulsions ((Crude Oil/SW), (Crude Oil/2DSW), (Crude Oil/10DSW), (Crude Oil/FW)). Generally, the tests were carried out at various temperatures (30, 40, 60, 80, 100, and 120 °C). Also, in this set of tests, the light transmission for various EM samples as the CO2 was injected into the solution through a piston − cylinder apparatus at various mole% was measured. In general, using different temperatures and pressures of the gas cylinder available in the laboratory, the value of the z-factor was calculated using PVTsim software. On the other hand, Eqs. (1–4) was used to calculate the injected gas volume.

$$\:{\text{Mw}}_{\text{dead\:oil}}\text{=\:}\sum\:{\text{Z}}_{\text{i}}\text{}{\text{Mw}}_{\text{i}\text{}}$$
(1)
$$\:\text{2}{cc\times\:\rho}\left(\frac{\text{gr}}{\text{cc}}\right){\times}{\text{}\text{Mw}}_{\text{dead\:oil}}={\rm n_{t}}$$
(2)
$$\:\frac{{\text{X}}_{\text{C}{\text{O}}_{2}}}{{\text{X}}_{\text{C}{\text{O}}_{2}\text{\:+\:}{n}_{\text{t}}}}\text{=}\text{X}\text{}\text{}\text{}\text{}\text{}\text{}$$
(3)
$$\:{\text{P}}_{\text{cylinder}}{\:\times\:\text{V}}_{\text{C}{\text{O}}_{\text{2}}}\text{=}\text{}\text{Z}\text{}{times\text{X}}_{\text{C}{\text{O}}_{\text{2}}}{\times}\text{R}\times\text{T}$$
(4)

Here, in Eq. (1), Mwdeadoil, Zi, and Mwi represent the molecular weight of the dead oil, the percent composition, and the molar mass of each component, respectively. In Eqs. (2), 2 cc, ρ, and nt represent the designed cell volume, density, and total number of moles. In Eq. (3), \(\:{\text{X}}_{\text{C}{\text{O}}_{2}}\), nt, and X represent the mole fraction of CO2, the total number of moles, and the injection amount for 20, 30, 35, 40, 45, 50% mole of CO2, respectively. Also, in Eq. (4), Pcylinder,Z, \(\:{\text{X}}_{\text{C}{\text{O}}_{\text{2}}}\), R, and T represent the CO2 cylinder pressure (psi), compressibility factor (calculated using PVTsim software), the mole fraction of CO2, the universal gas constant (10.731 (ft3.psi).(R.Ib.mol)−1), and temperature (°R), respectively. Therefore, by performing the calculations in Eq. (4), the \(\:{\text{V}}_{\text{C}{\text{O}}_{\text{2}}}\) is calculated.

Interfacial tension measurement

To investigate the fluid-fluid interactions between oil and brine, the pendant drop technique was employed to measure interfacial tension. The pendant drop method is a well-established technique for measuring interfacial tension under environmental conditions. To perform the measurement, a U-shaped syringe is utilized to position an oil droplet at its tip. Initially, a chamber that allows for light exposure is filled with low-salinity water. Once the low-salinity water is prepared, the syringe tip, containing the oil droplet, is placed above the chamber. A camera is then used to capture an image of the droplet. Subsequently, the software analyzes the recorded image to determine the interfacial tension. Generally, the bulk densities of the oil phase and the gas phase (pure CO2 or thickened CO2) required for the IFT calculations using the pendant drop technique were determined through direct measurement and established software, respectively. For the oil phase, the density was measured directly at reservoir conditions using DMA HPM Anton Paar apparatus74. For the gas phase, the density of pure CO2 was obtained using the PPDS software, which is a recognized database for fluid properties. The PPDS software is used for measuring the density of pure CO2, which retains a database for fluid properties developed by the National Engineering Laboratory in the UK75,76,77.

Test design

Identification of effective parameters

Considering the shallow water disposal formation at the mentioned oil field, the pressure was maintained constant at 20 bar. Since the temperature of the injected water is affected by seasons, a wide range of temperatures was considered for the test design. Besides, the amount of injected gas would be critical to any interaction between the EM samples and the injected CO2. Therefore, the second parameter was set to be the CO2 mole%. The effect of water salinity on the EM phase was also investigated here. In the first step, 20 cc of oil was slowly poured into a beaker containing 80 cc of brine with specific salinity ranging from FW to 10DSW. The samples were stirred by a Vortex Mixer at 6000 rpm for 45 min. After 45 min of the emulsification (oil in water) process, several small samples were collected to evaluate CO2 storage in oil reservoir water disposal zones and asphaltene deposition monitoring. The tests to find the temperature effect on asphaltene precipitation were designed to cover the range of temperatures from 30 to 120 °C. After the EM samples (oil in water) were prepared, the process of injecting those samples into the cell in the apparatus was performed. Besides, different mole% of injecting CO2 was tested, as the results are presented in the next section.

Test procedure

As it was explained earlier, two main parameters, namely temperature and CO2 mole%, were set to be tested in this experimental work. Thus, after the EM (oil in water) preparation process (According to Sect. "Identification of effective parameters"), the process of injecting salinity types and formation water into the cell in the apparatus was done (at different CO2 (mol%), pressure (20 bar) and temperature (30°, 40°, 60°, 80°, 100°, 120 °C). Generally, all tests were performed under pressure (20 bar) and at different temperatures and different gas injection rates. Each test was repeated at least three times to ensure reproducibility of results. The test design followed in this experimental work is comprehensively reported in Table 4. The tests are performed based on the salinity and the type of ions dissolved in water, system temperature, pressure and CO2 rate (mol%).

Table 4 Experiment design to conduct experiments using the newly developed innovative device.
Full size table

Results and discussion

The impact of CO2 injection into water disposal wells from the oil reservoirs under enhanced oil recovery operation, using low salinity water injection, which contains EM phase, was studied. Asphaltene precipitation was measured by preparing 168 samples (42 categories) of EM phases without the presence of carbon dioxide and in the presence of carbon dioxide for different carbon dioxide mol% at a pressure of 20 bar and various temperatures (20, 40, 60, 80, 100, and 120 °C).

The effects of different temperature scenarios on the amount of asphaltene in the emulsion

In this section, 24 types (categories 1–6 in Table 4) of EM samples were prepared using 20 volume% crude oil and 80 volume% of different brine samples. In this regard, the results of asphaltene precipitation in the emulsions of different salinities for the range of temperature change (20–120 °C) are shown in Fig. 3. As shown in Fig. 3, the extent of asphaltene precipitation, quantified by the reduction in NIR transmission, decreased consistently with increasing temperature across all brine salinities. Temperature would highly affect the CO2 dissolution in the brine samples as it almost decreases to 10% as the sample is heated from 20 °C – 120°C30.

The effects of CO2 concentration and interfacial tension investigation

In this section, 144 samples (categories 7–42 in Table 4) of oil-in-water EM samples were prepared. The results indicate that a higher amount of injected CO2 would cause less asphaltene precipitation (Table 5). This phenomenon is also critically affected by temperature changes as it was already described in the previous section. As for the amount of CO2 injection (based on mole%), the results presented in Figs. (4–9) indicated lower asphaltene precipitation at higher CO2 injection. This phenomenon is explained based on the limited CO2 dissolution in the aqueous phase at the test conditions and the low amount of crude oil in the EM phase (20 volume %). Furthermore, at high CO2 injection rates (above 35 mol%), the crude oil in the EM phase is likely subject to vaporization, resulting in fewer liquid crude oil droplets available to interact with the dissolved CO2 gas. These results are well described in Figs. (4–9) for the case of CO2 injection of 35 to 50 mol%, more CO2 available leads to less volume of crude oil accessible to the carbon dioxide dissolved in the EM phase. This theory is well supported by comparing the results for high CO2 mole% at elevated temperature, as they are described in Figs. (4–9). The other parameter that are presented here is the salinity of the brine samples used for the EM phase preparation. The results presented here indicate a lower amount of asphaltene precipitation for the case of 2DSW. This is well confirmed by the results presented by our experimental work shows that minimum interfacial tension is achieved for the 2DSW case (Fig. 10). However, there is confidence in the importance of this trend for two main reasons, one statistical and the other mechanical. Firstly, while the IFT values are in a relatively narrow range, the data presented in Fig. 10 is the result of highly reproducible measurements. The observed trend—where 2DSW consistently yields the lowest IFT, compared to standard SW was statistically significant across all experimental replicates. Although in several reports it is shown that the IFT of crude oil and 10DSW is marginally lower than 2DW, however in many cases it is preferred to use 2DW because of cost saving of desalination process. It is worth noting that the mechanisms have been critically reviewed in two published works by our research group55,78. On the other hand, this means a lower size for oil droplets that would facilitate more crude oil to be evaporated at a higher amount of CO2 available. This fact is almost visible in all cases described in this research work (Table 5). The previous studies indicated that a lower IFT corresponds to a more stable emulsion78. We suggest that these smaller droplets, created by the low IFT of 2DSW, are more susceptible to the phase-behavior change induced by high CO2 concentrations. The larger surface area facilitates faster and more extensive mass transfer, allowing the system to cross the thermodynamic threshold into a regime where the crude oil components are effectively vaporized or drastically altered, leaving fewer asphaltenes available to precipitate. In general, as temperature increases (based on experimental results), less asphaltene precipitation is observed. This is related to the amount of CO2 dissolving in both the water and oil phases at an elevated temperature, which hinders the lower chance for asphaltene precipitation. The general results of these tests would confirm lower asphaltene precipitation challenges for the cases of 2DSW aqueous phase, higher amount of CO2 injection rate and high-temperature conditions. In this regard, Fig. 11 describe the summary of the results for different temperatures and CO2 injection rates that support the explanation in this section. These results show that even very small amount of asphaltene precipitation is detected by the NIR device. Generally, for instance, at 30 °C and 35 mol% CO2, using 2DSW reduces asphaltene precipitation by 54% compared to FW. At 50 mol% CO2, the reduction is 73%. This demonstrates that 2DSW is the most effective single mitigation strategy. Compare high vs. medium injection rates. For example, increasing CO2 from 35 mol% to 50 mol% reduces precipitation by 39% for FW at 30 °C and by 63% for 2DSW at 30 °C, supporting the theory of a phase-change “vaporization regime.” The optimal condition (2DSW, 120 °C, 50 mol% CO2) results in a 97% reduction in precipitation compared to the worst-case (FW, 30 °C, 35 mol% CO2). This shows the powerful synergy of combining all optimal parameters. In this study, a complete quantitative data set of NIR measurements was available for all 168 scenarios. In this regard, the NIR system was calibrated to convert the reduction of light transmission (due to asphaltene scattering and absorption) into a relative measure of asphaltene precipitation. The core measurement was the Relative Change in NIR Transmission Intensity (ΔT/T₀), where any reduction indicates asphaltene precipitation. This metric is directly proportional to the amount of asphaltene particles obstructing the light path. For context, the baseline transmission (T₀) for a particle-free, stable emulsion was set at 100% for each test series. In this regard, Table 5 summarizes the quantitative data for the most significant conditions discussed in the manuscript, demonstrating the key trends. In this study, the main mechanisms are dissolution of CO2 in water and trapping in the large pore.

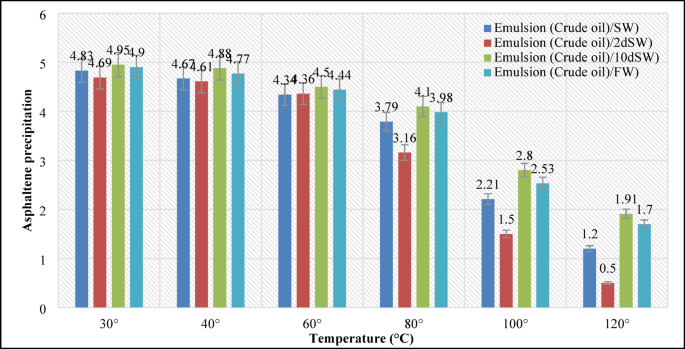

Fig. 3
figure 3

Asphaltene precipitation at different temperatures in the oil-water emulsion.

Full size image

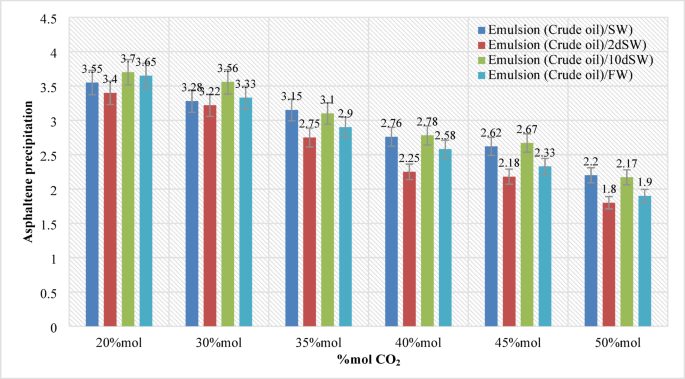

Fig. 4
figure 4

Asphaltene precipitation during different CO2 injection at pressure (20 bar) and temperature (30 °C).

Full size image

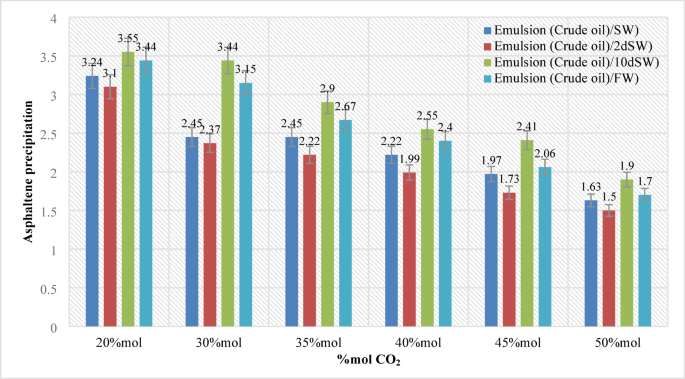

Fig. 5
figure 5

Asphaltene precipitation during different CO2 injection at pressure (20 bar) and temperature (40 °C).

Full size image

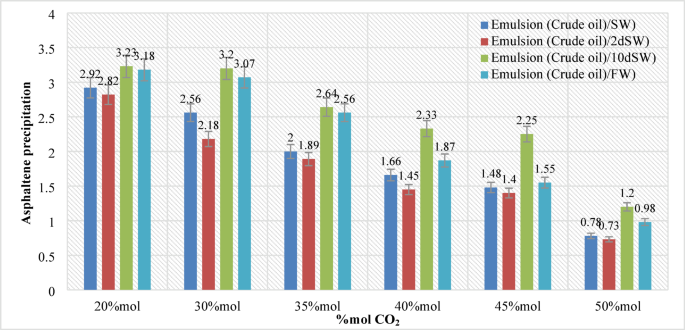

Fig. 6
figure 6

Asphaltene precipitation during different CO2 injection at pressure (20 bar) and temperature (60 °C).

Full size image

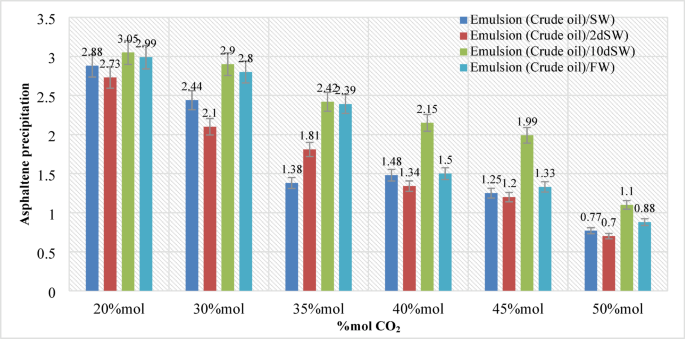

Fig. 7
figure 7

Asphaltene precipitation during different CO2 injection at pressure (20 bar) and temperature (80 °C).

Full size image
Fig. 8
figure 8

Asphaltene precipitation during different CO2 injection at pressure (20 bar) and temperature (100 °C).

Full size image
Fig. 9
figure 9

Asphaltene precipitation during CO2 injection at pressure (20 bar) and temperature (120 °C).

Full size image
Fig. 10
figure 10

Interfacial tension between brines and oil sample.

Full size image

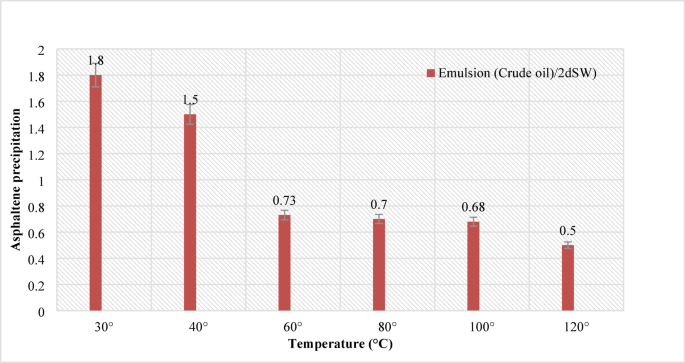

Fig. 11
figure 11

Asphaltene precipitation in CO2 injection (50 mol%), pressure (20 bar) and different temperatures for emulsion (Crude Oil/2DSW).

Full size image
Table 5 Quantitative summary of asphaltene precipitation (Reported as % Reduction in NIR Transmission).
Full size table

CO2 storage in water disposal wells and the balance between environmental benefits and asphaltene risks

As the world seeks scalable solutions to combat climate change, an emerging strategy combines carbon sequestration with produced water management by repurposing disposal wells—traditionally used for injecting waste fluids from oil and gas operations—into storage sites for captured CO2. This approach not only reduces greenhouse gas emissions by securely storing CO2 underground but also optimizes existing infrastructure, cutting costs associated with drilling new wells. When injected into water-filled disposal wells, CO2 either dissolves or forms a separate phase, depending on subsurface conditions, though careful pressure management is crucial to prevent leakage or reservoir damage. Beyond emissions reduction, this method addresses the environmental challenge of produced water disposal, as reinjecting CO2 can offset the volume of wastewater while stabilizing underground formations. However, key technical risks, such as asphaltene precipitation—where CO2 interacts with residual oil, potentially clogging pores and reducing permeability—must be mitigated through advanced monitoring and chemical treatments. Despite these challenges, the deep geological layers used for storage are typically isolated from freshwater aquifers by impermeable rock, minimizing contamination risks, while the injected CO2 can help maintain reservoir pressure, further protecting groundwater. By integrating CO2 storage with produced water management, this dual-purpose strategy enhances both economic and environmental efficiency, offering a circular solution that aligns industrial operations with climate goals. Ultimately, this innovative use of disposal wells exemplifies how repurposing existing infrastructure can drive sustainable progress, turning waste management into a climate solution and advancing the transition toward a low-carbon future.

Future directions

Generally, this study offer valuable insights for optimizing by modifying operational factors like waterflooding rates and pressure maintenance to reduce asphaltene deposition and precipitation. Moreover, recognizing the role of 2DSW as a stabilizing agent opens up novel possibilities for improving EM management. These results highlight the necessity of adapting techniques to particular reservoir states, such as temperature, pressure, oil-water composition, and water content, for CO2 storage in water disposal zones of oil reservoirs and monitoring asphaltene deposition. Future directions must concentrate on the long-term stability and behavior of EMs under a wider variety of reservoir states. It should also include simulation studies examining how ions in 2DSW interact with asphaltenes to better understand precipitation and EM stabilization processes.

Conclusions

While oil-water emulsions (EMs) have long been a characteristic feature of oil production, their role in carbon sequestration introduces new challenges. This study establishes an experimental protocol to detect asphaltene precipitation challenges during CO2 storage in water disposal zones. The key to engineering application lies in selecting the optimized conditions identified here: using a 2DSW emulsion at 120 °C, 20 bar, and a high CO2 injection concentration (50 mol%). Under these conditions, asphaltene precipitation—measured as the reduction in NIR transmission—was minimized to a mere 0.8% (± 0.2). This represents a substantial quantitative improvement compared to the baseline scenario using FW at 30 °C without CO2, which showed an 8.5% (± 0.7) reduction, or even the worst-case scenario of FW with 35 mol% CO2 at 30 °C, which peaked at a 25.1% (± 1.5) reduction. This quantitative data translates into direct engineering value. First, it provides a clear screening criterion: aqueous phase salinity is not merely an influential factor, but the use of 2DSW is a specific mitigation strategy that can reduce asphaltene precipitation by over 80% compared to high-salinity formation water under challenging conditions. Second, limiting CO2 injection to moderate levels minimizes asphaltene precipitation, as our results demonstrate that higher concentrations (> 35 mol%) can induce a phase-behavior crossover into a “vaporization” regime, which proactively prevents the associated formation damage. Furthermore, the conclusion emphasizes that our developed miniature PVT cell with integrated NIR spectroscopy is not just a novel apparatus but a practical tool for rapid, small-volume screening of parameters related to asphaltene precipitation challenges. The high reproducibility of the protocol ensures it can reliably generate site-specific data, enabling operators to tailor injection parameters—such as brine composition, temperature, and CO2 injection rate—to their specific reservoir fluids. Essentially, this work provides a quantitative framework and a specialized toolset for designing CO2 storage projects in water-disposal zones. These projects maximize injectivity and storage integrity by minimizing asphaltene-related formation damage to negligible levels, thereby directly reducing risks in project planning and execution. The practical significance of this research lies in providing a robust methodology to mitigate risks associated with CO2 injection into water-saturated zones, including disposal wells and water-flooded reservoirs. By enabling accurate prediction of asphaltene deposition within representative oil-in-water EMs, our results allow operators to proactively prevent wellbore impairment and formation damage.
