Two secure authentication protocols for mitigating vulnerabilities in IoD

Abstract

The Internet of Drones (IoD) is a network layer control system that manages the communication of Unmanned Aerial Vehicles (UAVs). Drones have emerged as a novel approach to addressing everyday human challenges and are now used in a variety of domains, such as personal activities (e.g., photography and videography), urban applications (e.g., traffic monitoring and structural inspection), commercial operations (e.g., power line and tower inspection), agriculture, and military operations. Given the rapid growth of UAVs and their expanding applications, interconnecting drones to form an IoD is a desirable trend for enhancing flight safety and quality. However, challenges related to security, privacy, and inter-drone communication remain significant obstacles. Numerous authentication protocols have been developed to address these concerns. Recently, Zhang et al. proposed a PUF-based authentication scheme that uses unique identifiers and hash functions to secure authentication in the IoD environment. However, in this paper, we demonstrate that Zhang et al.’s scheme is vulnerable to several attacks, including secret value disclosure, integrity violation, key extraction, traceability, and anonymity violation. The presented attacks are shown to have a success probability of one. We also introduce two enhanced protocols that, through both informal and formal security proofs using the Scyther tool, demonstrate that they do not suffer from the vulnerabilities found in the earlier protocol. The communication costs of the proposed protocols (a) and (b) have increased by $29\%$ and $59\%$, respectively, compared to the previous protocol. The computational costs for the proposed protocols (a) and (b) have also increased by $26\%$ and $56\%$, respectively, while the storage costs in both proposed protocols remain unchanged compared to the previous protocol. It is true that the costs in the proposed protocols have risen; however, the previous design was vulnerable to various attacks, whereas the proposed protocols have demonstrated better security and have successfully achieved all their security objectives.

Introduction

The rapid advancement of technology has accelerated the pace of work and problem-solving. Among these technologies, the integration of the Internet of Things (IoT) into human society is clearly evident, promising a more convenient and better life for humanity¹. IoT has permeated various sectors of industry and daily human needs.

The significance of security within the Internet of Things (IoT) is immense, as these devices are becoming increasingly embedded in vital infrastructure and daily use cases, such as smart homes, healthcare applications, and industrial settings². As the number of connected devices grows, the complexity and scope of security threats also expand. Smart homes, in particular, face notable security challenges due to their reliance on interconnected devices that facilitate automation and convenience³. Many of these devices have limited computational capabilities, leaving them susceptible to various attacks, including unauthorized access, secret data disclosure, and denial-of-service (DoS) attacks⁴. Additionally, the vast array of devices and their varying communication protocols broaden the potential points of vulnerability. Thus, ensuring the security of IoT systems is crucial for protecting personal data, preserving privacy, and ensuring the stability of critical infrastructures. With the rising frequency of cyberattacks targeting IoT devices, it is vital to continually evaluate security weaknesses and deploy effective countermeasures to reduce risks⁵.

A particular focus of this paper is the use of data fusion and exchange in remotely piloted aircraft, commonly known as drones, via communication networks. The Internet of Drones (IoD), also referred to as the Internet of Unmanned Aerial Vehicles (UAVs)⁶, is itself part of the IoT ecosystem and is an architecture designed to provide coordinated access to controlled airspace for UAVs. With the continuous miniaturization of sensors and processors, alongside ubiquitous wireless connectivity, the IoD has enabled new applications and public services for diverse human needs, ranging from on-demand package delivery, traffic and wildlife monitoring, and infrastructure inspection, to search and rescue, agriculture, cinematography, and specific military operations. All of these applications share a common requirement for navigation, airspace management, and secure information sharing.

Data exchange in IoD environments occurs via insecure communication channels due to the nature of wireless connections and the unique characteristics of their operational environments. Consequently, the IoD is susceptible to all threats associated with wireless communications. Furthermore, the risks inherent to the IoT are present in the IoD as well. Thus, while IoD technology offers significant advantages, it also introduces numerous security threats and privacy concerns. All IoD components, from hardware (e.g., drone sensors) to data-related elements (e.g., drone-collected information), must be systematically examined and protected from a security perspective^7,8.

The practicality of integrating tamper-resistant hardware in low-cost IoT devices is often limited due to budget constraints, size limitations, and power consumption requirements. Instead, manufacturers can adopt software-based security measures like secure boot and code obfuscation, implement lightweight cryptographic algorithms, and establish robust device authentication methods. Additionally, network-level security practices such as segmentation and the use of (Virtual Private Network) VPNs can protect data in transit. Fallback mechanisms, such as graceful degradation of functionality and user notifications about security states, can further enhance resilience. By combining these strategies, manufacturers can improve the security of commodity hardware without the need for specialized tamper-resistant components.

Maintaining data security and ensuring the authenticity of communicating parties are among the most significant challenges in implementing the Internet of Drones. These challenges are further complicated by the limited computational resources and restricted power supplies of drones. As a result, authentication schemes designed for the IoD environment must be both lightweight and reliable. In addition to securing communication, these schemes must minimize resource consumption and perform authentication computations as efficiently as possible, given the operational environment and critical needs of drones.

Implementing stronger security features in communication systems, especially in constrained environments like drones or IoT devices, involves navigating several trade-offs that can affect bandwidth, latency, and overall system performance. Key challenges include increased data overhead from encryption and authentication processes, frequent key exchanges that escalate communication costs, and added latency due to encryption/decryption times. Additionally, these security measures often demand more computational resources, which can be problematic in resource-limited settings.

To tackle communication cost trade-offs challenges, while ensuring strong security, several optimization strategies can be utilized. The use of lightweight security protocols, data aggregation at the source, and effective key management can lead to a significant reduction in communication costs. Furthermore, employing techniques such as data compression, selective encryption of sensitive data, and batch processing can help decrease overhead. Additionally, implementing adaptive security levels based on the sensitivity of the data and utilizing Trusted Execution Environments (TEEs) for secure computations can improve security without sacrificing communication efficiency. It is essential to find a balance among these elements for successful operation in constrained environments. Therefore, in this paper, two versions of the protocol, (a) and (b), are proposed, each with different communication and computational costs. For applications where user untraceability is not critical, protocol (a) can be used, as it has lower computational and communication costs compared to protocol (b). On the other hand, for applications that require a higher level of security, the proposed protocol (b) should be utilized.

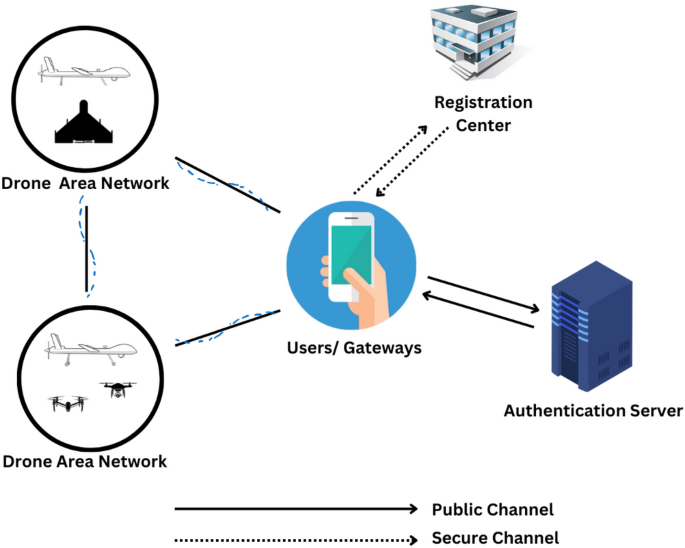

Fig. 1

The IoD network model.

Main contributions

The contributions of this paper can be summarized as follows:

• 1. In this research, we conducted a comprehensive analysis of the protocol proposed by Zhang et al.⁹ with the aim of identifying and highlighting its security vulnerabilities. Through a rigorous evaluation of the protocol, we have identified several significant security vulnerabilities. These include a violation of message integrity, indicating that the protocol lacks a suitable mechanism for verifying the integrity of certain messages. Additionally, the protocol fails to guarantee the secrecy of the session key. Furthermore, we found that the protocol is susceptible to traceability and anonymity violation attacks and does not adequately protect the confidentiality of user identities and passwords.

• 2. Building upon our findings, we have developed two novel PUF-based protocols (a) and (b) to mitigate the security weaknesses exposed in Zhang et al.’s⁹ protocol. These protocols are specifically designed to meet the requirements of various deployment scenarios.

• 3. Furthermore, we have employed both formal and informal security analysis to demonstrate the security efficacy of our proposed protocols. The results of our analysis, when compared to recent protocols, are presented. Notably, the Scyther security protocol analyzer was utilized for formal verification.

• 4. In this study, we conducted a comparative analysis of the newly proposed protocols (a) and (b) against similar recent protocols. The results of our calculations indicated that the communication costs for the proposed protocols (a) and (b) increased by 0.29$\%$ and 59$\%$, respectively, when compared to Zhang et al.’s protocol⁹. Additionally, the computational costs for proposed protocols (a) and (b) were found to be 26 $\%$ and 56 $\%$, respectively, compared to its predecessor while the storage costs remained unchanged across both new designs compared to their predecessor. Although it is acknowledged that the costs associated with the proposed protocols have risen, it is important to note that the previous design exhibited vulnerabilities to various attacks. In contrast, the proposed protocols have demonstrated enhanced security features and successfully met all specified security objectives, thereby providing a more robust solution despite the increase in costs. It is important to highlight that the proposed schemes, in comparison to other recent similar designs, offer a significant advantage in terms of computational, communication, and storage costs. Some existing schemes have higher costs than the ones presented in this paper.

Paper organization

The rest of the paper is organized as follows: In Sect. “Related work”, we examine the existing literature in this area. Section “PRLAP-IoD authentication scheme” provides a concise overview of Zhang et al.’s proposed scheme called PRLAP-IoD⁹. Section “Security analysis of the PRLAP-IoD” delves into the security vulnerabilities of Zhang et al.’s scheme⁹, analyzing potential attacks. Section “Proposed protocols” introduces enhancements to the original protocol. Informal and formal security analysis of proposed schemes are presented in Sect. “Proposed protocols security analysis”. The performance evaluations of proposed schemes are assessed against their counterparts in Sect. “Performance evaluation”. This paper ends in Sect. “Conclusion” with concluding remarks.

Related work

In recent years, many researchers have entered the field of IoD with multiple authentication schemes for the Internet of Drones mechanism, which aimed to provide security against various known security attacks. In¹⁰, Tanveer et al. proposed a scheme in 2024 that combined hash functions and symmetric encryption. However, their scheme was vulnerable to advanced attacks that compromised data security, such as forward secrecy. In¹¹, Irshad et al. proposed a scheme allowing registered users to access real-time data from the environment directly after gateway authentication. However, their scheme was vulnerable to the forward secrecy breach attack. The authors of¹² examined^10,11 schemes and addressed their security vulnerabilities and demonstrated that their proposed protocol achieved a 67.86% and 17.80% reduction in computational and communication costs, respectively, compared to related protocols. The authors in¹² performed a thorough analysis of the schemes¹⁰ and¹¹ and identified and fixed their security vulnerabilities. Their proposed protocol showed significant improvements in computational and communication efficiency and achieved a reduction of 67.86% and 17.80%, respectively, compared to existing protocols.

In¹³, Srinivas et al. proposed an authentication scheme in 2020 to enable secure real-time data access from Internet of Things (IoT) devices (e.g., vehicles, which can also be implemented in IoD environments) by a legitimate external party (user). Their proposed scheme used a three-factor authentication mechanism based on Elliptic Curve Cryptography (ECC). The authors claimed that their scheme offers improved security features while its computational cost equals other schemes. To substantiate their claims, they comprehensively analyzed and compared various schemes, including those proposed by Turkanovic et al.¹⁴ and Pourambij et al.¹⁵. Srinivas et al.¹³ identified security vulnerabilities in^14,15, including weaknesses against insider attacks, user impersonation, and stolen smart card attacks.

Alzahrani et al. in¹⁶ analyzed various schemes, including¹⁷ by Srinivas et al.,¹⁸ by Zhou et al., and¹⁹ by Wazid et al. and discovered that each scheme suffered from security vulnerabilities, such as the inability of¹⁷ to resist impersonation attacks,¹⁸’s vulnerability to IoT device spoofing attacks, and¹⁹’s susceptibility to drone/user/control center impersonation attacks. In¹⁶, also a scheme based on symmetric key cryptography and elliptic curve cryptography is proposed. By discussing security features, the authors demonstrated that the proposed scheme in¹⁶ offers higher reliability and resistance to attacks mentioned in^17,18,19.

In 2024, Tanveer et al. proposed a scheme²⁰ that uses Physical Unclonable Function (PUF) and the AEGIS authentication encryption scheme²¹ to ensure secure and reliable communication between users and unmanned aerial vehicles (UAVs) in smart cities. The authors of²⁰ analyzed various schemes, including^13,16, identifying vulnerabilities such as impersonation attacks, Man-In-The-Middle (MITM) attacks, lack of user anonymity, and mutual authentication failures in¹³, and identity disclosure and user ID guessing attacks in¹⁶. They claimed to have addressed these shortcomings through a rigorous informal analysis.

In²², Zhang et al. proposed a scheme to reduce communication costs by using XOR operations in conjunction with a one-way hash function for authentication. They claimed to have achieved perfect security and resistance to known attacks. Gupta et al. also proposed a scheme²³ to reduce hardware resource consumption and enhance authentication efficiency by employing simple XOR operations and a secure one-way hash function. Security analysis tools demonstrated that the Gupta et al.’s proposed protocol provides security and maintains a balance between performance and communication overhead.

In²⁴, Choi et al. examiined Sharma et al.’s Authentication and Key Agreement (AKA) scheme²⁵ and showed that their scheme is susceptible against user impersonation, stolen verifier, and Ephemeral Secret Leakage (ESL) attacks. Then, Choi et al proposed a lightweight and secure AKA scheme for the IoD to rectify the vulnerabilities of Sharma et al.’s scheme. In²⁶, Modarres and Sarbishaei introduced an authentication approach for IoD that leverages PUFs and multiple verification factors. In their proposed scheme, a ground station coordinates the identity checks between the user and the drone. Their analysis—both formal and informal—indicates that their proposed authentication scheme resists numerous attack scenarios. In²⁷, Nyangaresi et al. introduced a novel authentication protocol combining PUF, biometrics, and Elliptic Curve Cryptography (ECC) for the Internet of Drones. They demonstrated that their proposed scheme provides strong security protections against various types of attacks.

In⁹, Zhang et al. highlighted UAVs’ limited computational resources and memory constraints in 2024. They argued that ensuring strong security while minimizing computational and communication overhead is a significant challenge. To address this, they proposed a lightweight authentication scheme that uses XOR operations, a secure one-way hash function, and PUF. The authors also showed in⁹ that^22,23’s schemes are vulnerable to physical attacks, allowing adversaries to extract information using side-channel attacks after physically capturing the UAV.

Table 1 presents a comprehensive overview of various IoD authentication schemes. It summarizes the key contributions of each work, the methodologies employed, and the vulnerabilities identified in their approaches.

Table 1 Summary of authentication schemes, vulnerabilities and their improved scheme in IoD. In this table, the (–) symbol means no information reported in this regard.

As shown in the Table 1, the protocol proposed by Zhang et al.⁹ is still vulnerable to secret values disclosure, session key disclosure, traceability and integrity contradiction attacks, as will be demonstrated in this paper. We have modified the protocol to make it resilient against these attacks as well. Analyzing the presented protocols contributes significantly to ensuring their security and advances the science of protocol design and analysis.

PRLAP-IoD authentication scheme

PRLAP-IoD , a scheme presented by Zhang et al. in⁹, is designed to verify identity and increase security in data exchanges in the IoD environment. Figure 1 illustrates the network model and IoD environment as proposed by Zhang et al.⁹.

PRLAP-IoD assumptions

PRLAP-IoD scheme uses a noise-resistant and reliable PUF function capable of achieving 100 percent accuracy in complex environments (voltage fluctuations and temperature variations), as reported in²⁸. In PRLAP-IoD, secure one-way hash functions and XOR operations are also utilized to enhance security and resistance against high-level attacks. The PRLAP-IoD authentication scheme includes five phases: pre-deployment, registration, login, authentication, and password update, which will be discussed further.

The notations used in this paper are shown in Table 2.

Table 2 Notations.

Pre-deployment phase

Server Ser is entrusted with the responsibility of registering each user and drone at this point. Ser also produces the master secret key, symbolized by $X_{Ser}$, and sets up $GID_i$ (the gateway node’s unique identity) and h(.) (the one-way cryptographic hash function). The details are as follows:

• 1. Initially, Ser selects a 128-bit random number ($X_{Ser}$) as the master private key and subsequently stores $X_{Ser}$ securely.

• 2. For each gateway, Ser generates a 128-bit number ($GID_i$) as the identity of the $i^{th}$ gateway node ($GWN_i$) and stores it in the $i^{th}$ gateway node’s database.

• 3. Finally, Ser selects a secure one-way hash function ( $h(.)$) and publishes the values ($h(.),GID_i$).

Fig. 2

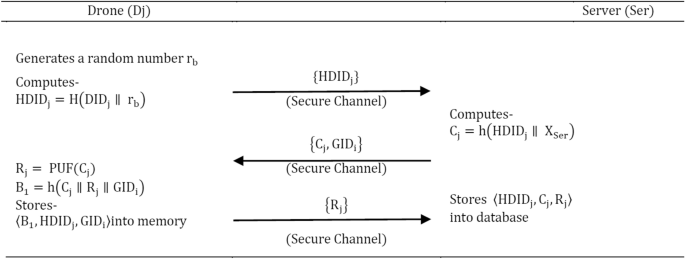

Drone registration phase of PRLAP-IoD⁹.

Registration phase

At this phase, the drone and user are registered. First, we describe the drone registration step. For the drone registration phase, the drone receives challenge-response pairs from Ser to serve as its long-term secret key. Figure 2 illustrates the PRLAP-IoD drone registration process in detail.

Drone registration

• 1. The drone randomly selects a number $r_b$ and calculates a pseudonym $HDID_j$ as $HDID_j=h(HDID_j\Vert r_b )$ . Subsequently, the drone sends its pseudonym to Ser with a registration request.

• 2. Upon receiving a message from the drone $D_j$, Ser computes a challenge as $C_j=h(HID_j\Vert X_{Ser} )$ and transmits ${C_j,GID_i }$ to $D_j$ over a secure and reliable channel.

• 3. Upon receiving the values ${C_j,GID_i }$ from Ser, the drone $D_j$ computes the response using its PUF function as $R_j= PUF(C_j)$ and also calculates $B_1=h(C_j\Vert R_j\Vert GID_i )$. Subsequently, the drone stores the values $\langle B_1,HDID_j,GID_i\rangle$ in its memory and transmits the response $R_j$ to Ser over a secure channel.

• 4. Finally, Ser receives the value $R_j$ and stores the values $\langle HDID_j,C_j,R_j\rangle$ in its database.

Initial registration in the system is mandatory to grant users access and control over their drones throughout missions. This process involves submitting a registration request to the server. Figure 3 provides a detailed overview of User registration phase.

Fig. 3

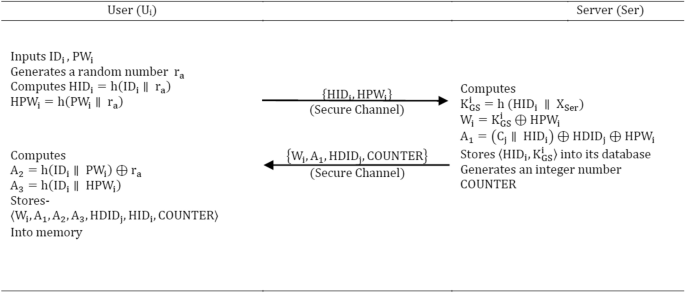

User registration phase of PRLAP-IoD⁹.

User registration

• 1. A new user $U_i$ must enter a unique identifier $ID_i$ and password $PW_i$ at the gateway node $GWN_i$. Subsequently, a random number $r_a$ is generated and used to calculate a pseudonymous identity as $HID_i=h(ID_i\Vert r_a )$. A pseudo-password is also calculated as $HPW_i=h(PW_i\Vert r_a )$. These values $\{HID_i,HPW_i \}$ are then securely transmitted to the Ser via a secure channel.

• 2. As soon as the message $\{HID_i,HPW_i\}$ is received, Ser performs a set of processes for the user. Ser selects the $HDID_j$ that belongs to the registered UAV and calculates the user’s long-term secret key denoted by $K_{GS}^i$ as $K_{GS}^i=h (HID_i\Vert X_{Ser})$. Then it obtains the $W_i=K_{GS}^i\oplus HPW_i$ and then calculates $A_1=(C_j\Vert HID_i )\oplus HDID_j\oplus HPW_i$. After that, Ser generates the COUNTER variable initialized to zero and uses it to record the number of failed user logins. Then, it sends the values $\{W_i,HDID_j,A_1,COUNTER\}$ to the user $U_i$ through a secure channel and also stores the $\langle HID_i,K_{GS}^i\rangle$ in its database.

• 3. After collecting credits $\{W_i,HDID_j,A_1,COUNTER\}$ from Ser, the user calculates $A_2$ and $A_3$ as $A_2=h(ID_i\Vert PW_i )\oplus r_a$ and $A_3=h(ID_i\Vert HPW_i)$ respectively. Next, the user stores the $<W_i,A_1,A_2,A_3,HDID_j,HID_i,COUNTER>$ in his/her database safely.

Login and authentication phase

In this section, we will explain more about the login and authentication process of PRLAP-IoD. In the PRLAP-IoD protocol, both the user and the drone can generate a session key (SK) consisting of a unique response $R_j$ and a random number $K_1$. The steps involved in this process will be explained below.

• 1. Initially, the $GWN_i$ prompts the user $U_i$ to input his unique user identifier and corresponding password. Upon the user’s input of these confidential values, the $GWN_i$ proceeds to compute $r_a^*=A_2\oplus h(ID_i\Vert PW_i )$, $HPW_i^*=h(PW_i\Vert r_a^* )$, and $A_3^*=h(ID_i\Vert HPW_i^* )$. If $A_3^*=A_3$ is not established, $GWN_i$ rejects the login request and the failed login attempt counter, denoted by COUNTER, is incremented. Otherwise, the user $U_i$ calculates the current timestamp $T_1$ as well as the new challenge $C_J^{new}$ for the drone $D_j$ and calculates the message $A_1^*=A_1\oplus HPW_i\oplus T_1$, then, the user sends $\langle A_1^*,C_j^{new},T_1\rangle$ for the drone $D_j$ through the public channel.

• 2. Drone $D_j$, upon receiving the connection request and message $\langle A_1^*,C_j^{new},T_1\rangle$ from the user $U_i$, initially calculates its current timestamp and assigns it the label $T_2$. Subsequently, it verifies whether the inequality $|T_2-T_1 |<\Delta T$ holds, where $\Delta T$ represents the maximum allowable time difference, if it is not, the drone will reject and ignore the $U_i$ request until it sends a new request. Otherwise, the drone retrieves $(C_j^*\Vert HID_i^* )$ as $A_1^*\oplus HDID_j\oplus T_1$, then computes $R_j^*=PUF(C_j^* )$, and $B_1^*=h(C_j^*\Vert R_j^*\Vert GID_i )$ and checks if $B_1^*=B_1$, then uses a Physically Unclonable Function PUF to generate a novel response as $R_j^{new}= PUF(C_J^{new})$. Subsequently, the drone computes new values $M_1=R_j^{new}\oplus h(R_j^*\Vert T_2 )$ and $M_2=h(HID_i^*\Vert R_j^*\Vert T_2 )$, then transmits $\langle M_1,M_2,T_2\rangle$ to the gateway node via a public channel.

• 3. As soon as messages $\langle M_1,M_2,T_2\rangle$ are received at the time $T_3$, the user $U_i$ calculates the time validity, upon successful timestamp verification, the gateway node generates a random number $R_1$ and calculates the values $K_{GS}^{i^*}=W_i\oplus HPW_i^*$, $M_3=R_1\oplus K_{GS}^{i^*}\oplus M_2$ and $M_4=h(HDID_j\Vert GID_i\Vert R_1\Vert T_3 )$ and sends it as $\langle M_3,M_4,HDID_j,T_2,T_3\rangle$ to Ser; otherwise, the user rejects the connection.

• 4. After receiving the $\langle M_3,M_4,HDID_j,T_2,T_3\rangle$ from the gateway at the time $T_4$, Ser checks the time stamp validity. During the $D_j$ and $U_i$ registration phase, Ser had stored $(HDID_j,C_j,R_j)$ and $(HID_i,K_{GS}^i)$ respectively. Therefore, Ser can retrieve the challenge-response pair $(R_j,C_j)$ from its database using the drone’s pseudonym $(HDID_j)$. However, it can not retrieve $(HID_i,K_{GS}^i)$, because in the messages sent from the gateway to the server there is no parameter that indicates which use/gateway it is connected to. We have fixed this issue in our proposed protocols. The rest of the protocol is explained assuming this problem does not exist. If $|T_4-T_3 |<\Delta T$ holds, Ser calculates the values $R_1^*=M_3\oplus K_{GS}^i\oplus h(HID_i\Vert R_j\Vert T_2)$ and $M_4^*=h(HDID_j\Vert GID_i\Vert R_1^*\Vert T_3)$, after that Ser compares $M_4$ and $M_4^*$ to confirm $D_j$ and $U_i$. If $M_4^*$ is not equal to $M_4$, the session will conclude. After successful authentication of $D_j$ and $U_i$, Ser calculates $M_5=h(R_j\Vert T_2)\oplus h(R_1^*\Vert T_4)$, $M_6=h(K_{GS}^i\Vert R_1^*\Vert T_4)$ and $M_7=h(R_j\Vert T_2\Vert T_4)$, then sends $\langle M_5,M_6,M_7,T_4\rangle$ to the gateway node.

• 5. When getting the messages $\langle M_5,M_6,M_7,T_4\rangle$ from Ser at $T_5$, $GWN_i$ first checks the validation of time by $|T_5-T_4 |<\Delta T$, if it holds, $GWN_i$ calculates $M_6^*=h(K_{GS}^{i^*}\Vert R_1\Vert T_4 )$ and checks whether $M_6^*{\mathop {=}\limits ^{?}}M_6$ is or not. The session is terminated if it does not hold. Otherwise, $GWN_i$ generates a new random number $K_1$ and calculates a new response $R_j^{new}=M_1\oplus M_5\oplus h(R_1\Vert T_4)$, $M_8=K_1\oplus h(R_j^{new}\Vert T_5)$ and $SK=h(K_1\Vert R_j^{new})$ and then sends $\langle M_7,M_8,T_4,T_5\rangle$ to the drone $D_j$.

• 6. Upon receiving the messages $\langle M_7,M_8,T_4,T_5\rangle$ from $GWN_i$, $D_j$ checks the validation of time by $|T_6-T_5 |<\Delta T$, if it is not, the drone will cancel its further operations. Otherwise it computes $M_7^*=h(R_j\Vert T_2\Vert T_4)$ and checks the equality of $M_7^*$ and $M_7$, after successfully authentication of $GWN_i$ and Ser, the drone $D_j$ calculates $K_1=M_8\oplus h(R_j^{new}\Vert T_5 )$ and $SK=h(K_1\Vert R_j^{new})$.

The PRLAP-IoD key agreement and authentication procedure is shown in Fig. 4.

Fig. 4

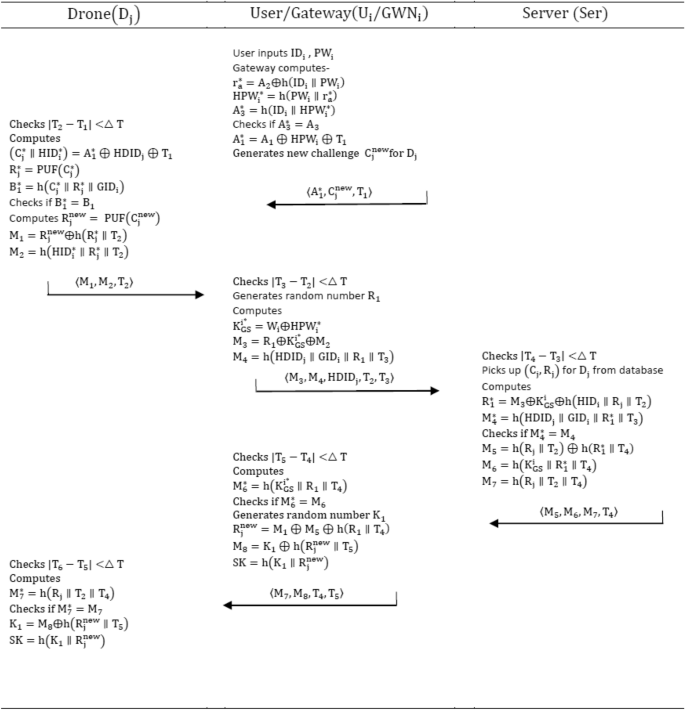

Login and authentication phase of PRLAP-IoD⁹.

Drone-drone authentication phase

This section briefly explains how a drone establishes a secure communication link with another drone in the PRLAP-IoD. This communication, which aims to authenticate and create a secure communication channel, is established by exchanging a session key. Figure 5 illustrates the steps of this process.

• 1. The drone $D_1$ sends a connection request encrypted by $SK_1$ as $\{Req,DID_2\}_{SK1}$ to gateway $GWN_i$.

• 2. Upon receiving $\{Req,DID_2\}_{SK1}$, $GWN_i$ checks the identity of $D_2$. Then, it sends the request to $D_2$ which is encrypted by the $SK_2$ established in drone $D_2$ login and authentication phase.

• 3. When the drone $D_2$ confirms the connection request, it returns permission to the $GWN_i$. After the $GWN_i$ receives the permission, it will generate a $SK_3$ for the next communication between drones $D_1$ and $D_2$ and sends $\{SK_3 \}_{SK_1}$ and $\{SK_3\}_{SK_2}$ to $D_1$ and $D_2$ respectively.

• 4. Finally, the new communication between $D_1$ and $D_2$ is established by a session key $SK_3$.

Fig. 5

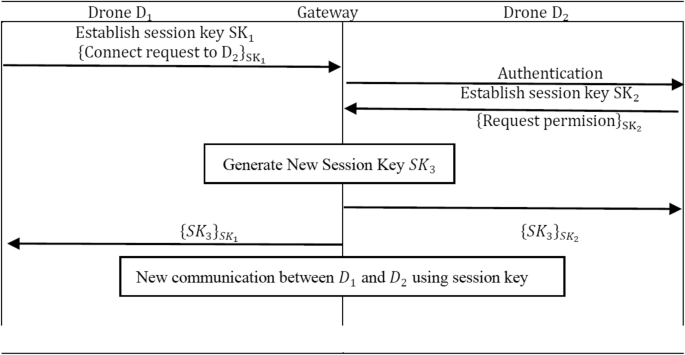

Drone-Drone authentication phase of PRLAP-IoD⁹.

Updating password phase

In this phase, the PRLAP-IoD provides an optional function to update the old password. Only $GWN_i$ can do this, not the Ser. The specific operation as follows:

• 1. The $GWN_i$ asks the $U_i$ to input the outdated login credentials $(ID_i,PW_i^{old} )$.

• 2. Upon receiving $(ID_i,PW_i^{old})$ from $U_i$, $GWN_i$ checks whether $A_3=A_3^{old}$ is or not. For this purpose, it computes the random number $r_a^*=A_2\oplus h(ID_i\Vert PW_i^{old})$, $HPW_i^{old}=h(PW_i^{old}\Vert r_a^*)$ and $A_3^{old}=h(ID_i\Vert HPW_i^{old})$. If $A_3=A_3^{old}$ is not valid, the gateway will reject the update request. Otherwise, $GWN_i$ believes the legitimacy of the user and requests a new password $PW_i^{new}$ from $U_i$.

• 3. After receiving $PW_i^{new}$ from user, $GWN_i$ computes $HPW_i^{new}=h(PW_i^{new}\Vert r_a^*)$, $K_{GS}^i=W_i\oplus HPW_i^{old}$, $W_i^{new}=K_{GS}^i\oplus HPW_i^{new}$, $A_2^{new}=r_a^*\oplus h(ID_i\Vert PW_i^{new})$ and $A_3^{new}= h(ID_i\Vert HPW_i^{new})$. Finally, $W_i^{new}$, $A_2^{new}$ and $A_3^{new}$ are stored to $GWN_i$ to replace the $W_i$, $A_2$ and $A_3$ respectively.

Security analysis of the PRLAP-IoD

In this section, we will perform a thorough informal security analysis of the PRLAP-IoD scheme and outline various attacks including secret value disclosure attack, integrity contradiction attack, session key disclosure attack, traceability attack and anonymity contradiction attack against it within the Dolev-Yao adversary model, as described below:

Dolev-Yao Adversary Model

The Dolev-Yao adversary model²⁹ serves as a theoretical framework in cryptography that defines the capabilities of an adversary aiming to breach the security of cryptographic protocols. Within this model, the adversary possesses several critical abilities: s/he can control communication channels, enabling his/her to intercept, alter, or inject messages between legitimate parties; s/he can impersonate legitimate users, allowing his/her for identity spoofing; s/he can execute replay attacks by capturing and reusing valid messages; s/he may collaborate with other malicious actors to strengthen attack strategies; s/he can access the internal state of protocols or participating entities to collect sensitive information; and finally, s/he can conduct adaptive attacks, modifying their tactics based on the reactions of legitimate parties. These capabilities highlight the importance of the Dolev-Yao model in the design and evaluation of secure cryptographic systems. In this paper, we apply this adversary model in our analysis and validation of the security of the examined protocols.

Integrity contradiction attack

Integrity is a property that ensures that if a message is altered during transmission, the recipient can detect the modification and determine that the message is no longer trustworthy. In this section, we will demonstrate that the protocol in question does not guarantee integrity for most messages. To execute this attack, an adversary can follow these steps:

• If the adversary changes the message $M_1$ sent by the drone $D_j$ to the user/gateway node to the desired value $M_1^\prime ={M_1\oplus \Delta }$, since $M_1$ is not checked by the user/gateway node, $GWN_i$ computes $R_j^{new^\prime }$ as $R_j^{new^\prime }=M_1^\prime \oplus M_5\oplus h(R_1\Vert T_4)$ that $M_1^\prime \ne M_1$ as a result, $R_j^{new^\prime }$ is not equal to $R_j^{new}$.

• The same issue applies to the message $M_8$. The drone does not verify the integrity of $M_8$, allowing an adversary to arbitrarily modify its value, such as changing it to $M_8^\prime =M_8\oplus \Delta ^\prime$. Since the integrity is not verified on the drone side, consequently, the drone calculates $K_1^\prime =M_8^\prime \oplus h(R_j^{new}\Vert T_5)$ which is different from the calculated value $K_1$ on the user side and as a result SK will be computed as $SK=h(K_1^\prime \Vert R_j^{new})$ on the drone side which is different from the value of $SK=h(K_1\Vert R_j^{new})$ on the user side. This can also eventually lead to desynchronization attack.

• During the Drone-Drone authentication phase, there is a potential integrity contradiction attack. As illustrated in Fig. 5, the secret key $SK_3$ is created for communication between two UAVs and is encrypted with each UAV’s secret key before being sent to them. If an attacker modifies $\{SK_3\}_{SK_1}$, the recipient will receive a tampered message. Upon decrypting it, the recipient will obtain a different key value, causing any messages encrypted with this incorrect key to remain undecryptable by the drones.

This attack is guaranteed to succeed with a single execution of the protocol, achieving a 100% success rate.

Session key disclosure attack

If the authorized user (who can be an insider attacker) wants to connect to the $D_j$ drone, as shown in Fig. 4, and sends his previous $C_j$ instead of $C_j^{new}$ (notice that the adversary has previous messages with $C_j$), in that case, $R_j^{new}=R_j$, that means, this user gets $R_j^{new}$.

Consider a scenario where the user $U_i$ (the insider attacker) aims to establish a connection with the drone by transmitting $C_j^{new}$, $A_1^*$, $T_1$. Given that the insider attacker has acquired $R_j$, s/he can compute the value of $R_j^{new}$ based on the drone’s response, which consists of $(M_1,M_2,T_2)$. This is calculated as $R_j^{new}=M_1\oplus h(R_j^*\Vert T_2)$. Subsequently, the attacker can derive the value of $K_1$ from $M_8$ using the formula $K_1=M_8\oplus h(R_j^{new}\Vert T_5)$. With both $R_j^{new}$ and $K_1$ in their possession, the adversary can compute the session key for another user with the drone using $SK=h(K_1\Vert R_j^{new})$. The success probability of this attack is 100%, and the protocol’s complexity involves executing the protocol twice.

Traceability attack and anonymity contradiction

In the Phan Traceability model³⁰, when analyzing the relayed messages associated with the drone $D_0$ , we can determine whether arbitrary relayed messages pertain to the same drone. This indicates that we have successfully traced $D_0$.

This section illustrates that the PRLAP-IoD is susceptible to traceability attacks. The primary vulnerability lies in the $HDID_j$, which is permanently assigned to the drone and cannot be changed. As a result, by analyzing the $HDID_j$ message transmitted over the insecure channel between the user and the server, it becomes possible to identify the specific drone involved.

Conversely, if the attacker captures and retains all the messages exchanged in Fig. 4, s/he can XOR the values of $A_1^*$, $HDID_j$, and $T_1$ transmitted through the insecure channel. Using the equation $(C_j^*\Vert HID_i^*)=A_1^*\oplus HDID_j\oplus T_1$, the attacker can derive $C_j^*\Vert HID_i^*$, which is a fixed value that can be utilized for traceability purposes. Furthermore, the $HID_i$ can be associated with the drone. As a result, in PRLAP-IoD, both the user/gateway node and the drone, as well as their combination, can be traced. By applying an XOR operation to certain exchanged messages, we can obtain a constant value linked to the identities of the drone and the user/gateway node. This attack only necessitates a single execution of the protocol and has a success rate of 100%.

Secret values disclosure attack

This section describes the secret values disclosure attack by an insider attacker. The insider attacker is an authorized user registered in the system with access to the secure channel and smart cards. The insider attacker observes the registration phase between the user and the server, obtains and stores the exchanged values, and has access to the values stored in the smart card.

Due to the fact that ID and PW always have a short length and the amount of guesses for them are respectively $2^{|ID|}$ and $2^{|PW|}$ where |ID| and |PW| show the bit length of ID and PW respectively:

• 1. Since the insider adversary obtained the $HPW_i$ from the channel during the user registration phase, s/he guesses a value for $ID_i$ and calculates the $A_3$ with $ID_i$ and $HPW_i$, if the calculated value of $A_3$ is the same as the value of $A_3$ obtained from the smart card, the guess is correct. Otherwise, s/he has to guess again.

• 2. After obtaining the correct $ID_i$, s/he guesses a value for $PW_i$ and obtains the $r_a$ from $A_2$ retrieved from the smart card as $r_a=A_2\oplus h(ID_i\Vert PW_i)$. Then, the adversary puts the obtained $r_a$ together with $ID_i$ in the relation $h(ID_i\Vert r_a)$, If the result was equal to $HID_i$, then the obtained $r_a$ is correct. Otherwise, s/he should guess another value for $PW_i$ and repeat this step to get the $r_a$. In that case, the correct value of $PW_i$ has been obtained at that stage. So $ID_i$ and $PW_i$ are obtained. The success probability of this attack equals to 1 and its complexity equals to $2^{|ID|} +2^{|PW|}$.

Proposed protocols

In this section, we improve the PRLAP-IoD protocol in two scenarios, (a) and (b), to ensure that it is adequately protected against known attacks. Scenario (a) is for conditions where resistance to user traceability attack is not required, such as personal and recreational uses, which have a lower computational load. Scenario (b) is for traceability-sensitive conditions, such as military use, which obviously has a higher computational load. Subsequently, we use the Scyther security analysis tool to demonstrate that the proposed protocols resist known active and passive attacks.

Scyther is a tool developed for the automated verification or falsification of security protocols and is presented in its updated versions assuming perfect cryptography. This tool assumes that all cryptographic functions are perfect and correct, and the adversary will learn nothing from an encrypted message unless s/he knows the decryption key. Therefore, the Scyther tool can be used to identify design security problems in a protocol.

Assumptions

Proposed schemes use a noise-resistant and reliable PUF function capable of achieving 100 percent accuracy in complex environments (voltage fluctuations and temperature variations), as reported in²⁸. In the proposed schemes, secure one-way hash functions and XOR operations are also utilized to enhance security and resistance against high-level attacks. The proposed authentication protocols same as their predecessor PRLAP-IoD include five phases: pre-deployment, registration, login, authentication, and password update.

The notations used in these protocols are also shown in Table 2. To address PRLAP-IoD protocol’s security vulnerabilities, we focus solely on enhancing the user registration phase, the drone-to-drone authentication phase, the login and authentication phase and password update phase. As a result, the other phases remain largely similar to the PRLAP-IoD protocol, and we have chosen not to repeat them in order to avoid redundancy.

Fixing the user recognition flaw

In the proposed protocols, $M_4$ is computed as $M_4=HDID_j\oplus h(HID_i\Vert K_{GS}^{i^*}\Vert T_3 )$ and instead of $HDID_j$, the gateway sends $HID_i$ to the server, which based on it, the server understands which gateway it is communicating with and, based on retrieving $HDID_j^*$ at the server side as $M_4\oplus h(HID_i\Vert K_{GS}^{i^*}\Vert T_3 )$, also understands which drone it is communicating with.

Fixing the secret value disclosure attack

To enhance PRLAP-IoD security and bolster resistance against secret disclosure attack presented in this paper, it is proposed that during the user registration phase, to calculate the pseudonymous identity and password and also $A_3$, wherever the user’s identity is used, the user’s password should also be concatenated to it. This increases the computational complexity and makes it more difficult for adversaries to guess the values. In fact, this modification prevents attackers from easily guessing the user’s identity and password individually, forcing them to attempt both simultaneously. Figure 6 illustrates the improved user registration process, which consequently alters the values of $HID_i$, $HPW_i$, and $A_3$ in the enhanced authentication phase. In the Fig. 6, the changes compared to the user registration phase of the PRLAP-IoD protocol are highlighted in blue.

Fig. 6

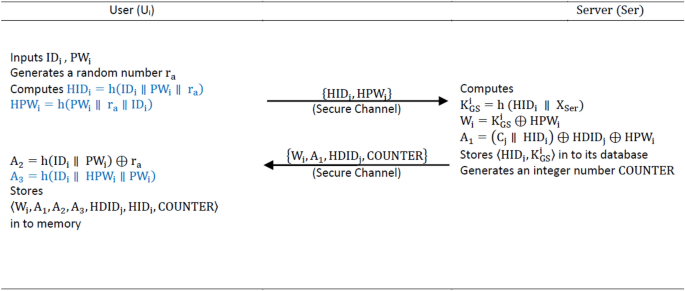

Improved user registration phase in the proposed protocols.

Fixing key disclosure attack

To strengthen the security of the enhanced protocols against key disclosure attacks, the drone receives a challenge $C_j$ during the registration phase and computes its response. In the authentication phase, the gateway calculates $A_1^*=A_1\oplus HPW_i^*\oplus h(C_j^{new}\Vert T_1\Vert HDID_j)$ and sends $(A_1^*,C_j^{new}, T_1)$ to the drone. The drone based on these values, retrieved $(C_j^*\Vert HID_i^* )$ as $A_1^*\oplus HDID_j\oplus h(C_j^{new}\Vert T_1\Vert HDID_j)$. To initiate a new session, the new challenge $C_j^{new}$ is compared with the previously stored $C_j^*$. If these two values differ, the authentication process can proceed. However, if they are the same, both the process and the session will be terminated. This calculation is illustrated in the authentication phase of the two improved protocols in Figs. 7 and 8, respectively while the changes compared to the login and authentication phase of the PRLAP-IoD protocol are highlighted in blue.

Fig. 7

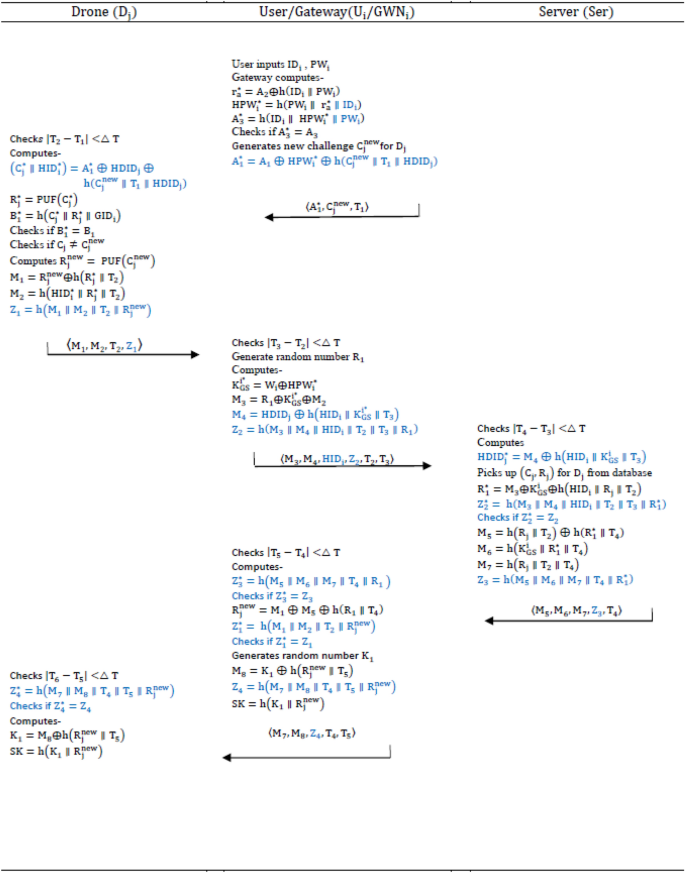

Improved login and authentication phase-protocol (a).

Fig. 8

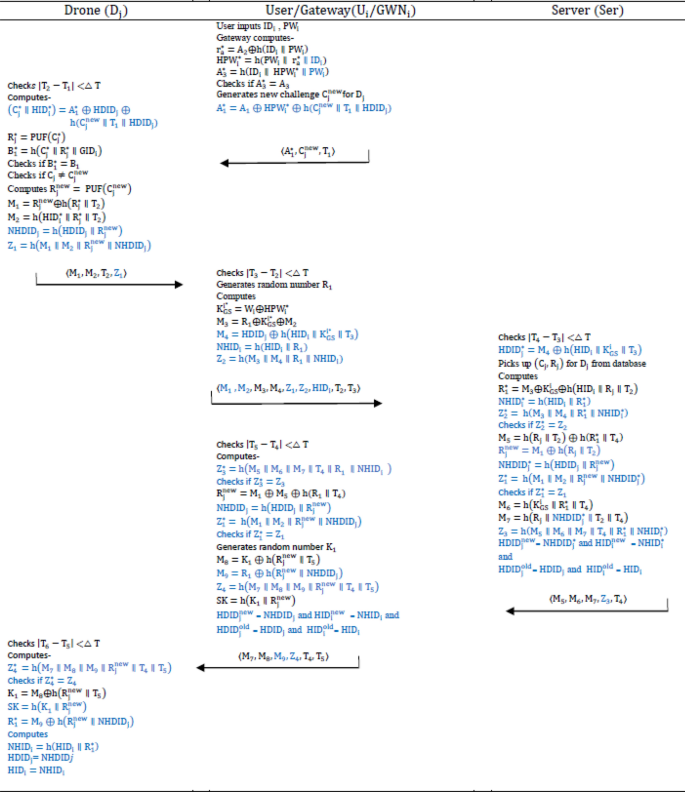

Improved login and authentication phase-protocol (b).

Fixing traceability attack and anonymity violation

To break the mentioned traceability attack in the subsect. “Traceability attack and anonymity contradiction”, in the proposed protocols, the message $A_{1}^*$ is changed to the value $A_{1}^*=A_1\oplus HPW_i^*\oplus h(C_j^{new}\Vert T_1\Vert HDID_j)$. Since in the proposed protocols, the $HDID_j$ is no longer sent in the channel, one can not retrieve $(C_j^*\Vert HID_i^* )$ by computing $A_1^*\oplus HDID_j\oplus h(C_j^{new}\Vert T_1\Vert HDID_j)$ and so can not retrieve constant information for traceability attack. Proposed protocols are secure against the traceability attack presented in subsect. “Traceability attack and anonymity contradiction”, but due to the fact that $HID_i$ is sent through public channel instead of $HDID_j$ and not updated in the proposed protocol (a), it does not provide resistance against user traceability attack whereas the proposed protocol (b) introduces improvements that secures it against user traceability attack also.

To implement this, we needed to refresh the pseudonymous identities of both the user and the drone for each session, which would be utilized in the subsequent session. The new pseudonymous identity for the drone, denoted as $NHDID_j=h(HDID_j\Vert R_j^{new})$, is generated by the drone, and the same value is computed on the server side as $NHDID_j^*=h(HDID_j\Vert R_j^{new})$. This required generating $R_j^{new}$ on the server, which has been accomplished. Additionally, since the user possesses $R_j^{new}$, he can easily compute $NHDID_j$. Both the old and new pseudonymous identities of the drones are stored on the server and in the gateway node, while the drone retains only the new identity due to memory constraints. The user’s identity is updated by calculating $NHID_i=h(HID_i\Vert R_1)$ on their device, with the server also computing this value as $NHID_i^*=h(HID_i\Vert R_1^*)$. The old and new pseudonymous identities of the user are kept in the server database and on the user’s device. The drone also needs to retain this value, to do so, the user first generates $M_9=R_1\oplus h(R_j^{new}\Vert NHDID_j)$ on their side and sends it to the drone. The drone then calculates $R_1^*$ using the received $M_9$ and derives the user’s new pseudonymous identity as $NHID_i=h(HID_i\Vert R_1^*)$, storing it in its memory. These processes are illustrated in Fig. 8.

Fixing integrity contradiction attack

Addressing the integrity contradiction attack in the proposed protocols for the login and authentication phases (protocol (a) and protocol (b)) involves slight differences, which are detailed separately below.

The integrity of the transmitted values is also ensured by using hash functions, and if the adversary changes the values, the correct information will not be received on the recipient side and the receiver will notice the change.

In the gateway side of the proposed protocols, the message $M_4$ is also changed to $M_4=HDID_j\oplus h(HID_i\Vert K_{GS}^{i*}\Vert T_3 )$. For protocol (a), other suggested improvements include a modification where the new value of $Z_1$ is calculated as $Z_1=h(M_1\Vert M_2\Vert T_2\Vert R_j^{new})$ for the messages $M_1$ and $M_2$. This method safeguards the integrity of messages $M_1$, $M_2$, and $T_2$ by transmitting $Z_1$ to the user, who then computes a new value $Z_1^*=h(M_1\Vert M_2\Vert T_2\Vert R_j^{new})$ and compares the two values. Since $R_j^{new}$ is known only to the two parties and is not transmitted over the public channel, any potential adversary remains unaware of it. If the $Z_1$ message is tampered with, the user will identify this discrepancy upon receiving it and performing the calculation and comparison with $Z_1^*$, thereby halting any further communication and the authentication process.

In the protocol (a), the user computes $Z_2=h(M_3\Vert M_4\Vert HID_i\Vert T_2\Vert T_3\Vert R_1)$ to verify the integrity of the $M_3$, $M_4$, $HID_i$, $T_2$ and $T_3$ messages. In $Z_2$, $R_1$ is a randomly generated number that is not sent over the public channel. The server derives $R_1^*$ based on the received message and other pertinent information. Therefore, if an attacker modifies $M_3$, $M_4$, $HID_i$, $T_2$ and $T_3$ messages, the server will notice them when it receives $Z_2$ and calculates $Z_2^*=h(M_3\Vert M_4\Vert HID_i\Vert T_2\Vert T_3\Vert R_1^*)$, as the two values will not align. Similarly, $Z_3$ is calculated to ensure the integrity of message $M_5$, $M_6$, $M_7$ and $T_4$ in the protocol (a), but in this case, the server is the sender and the user is the receiver. The critical value used to compute $Z_3$ is the same random number generated by the user. The server computes $Z_3=h(M_5\Vert M_6\Vert M_7\Vert T_4\Vert R_1^*)$ and sends it to the user, who then calculates $Z_3^*=h(M_5\Vert M_6\Vert M_7\Vert T_4\Vert R_1)$ and compares it with the received value. If they match, the user can confirm the integrity of the $M_5$, $M_6$, $M_7$ and $T_4$ messages.

The user also computes the value of $Z_4=h(M_7\Vert M_8\Vert T_4\Vert T_5\Vert R_j^{new})$ to verify the integrity of the $M_7$, $M_8$, $T_4$ and $T_5$ messages before sending it to the drone. In this case, the key value used, similar to the calculation of $Z_1$, is $R_j^{new}$. The drone then calculates $Z_4^*=h(M_7\Vert M_8\Vert T_4\Vert T_5\Vert R_j^{new})$ and checks if it matches the received $Z_4$ value. If they are equal, it confirms the correctness and integrity of the $M_7$, $M_8$, $T_4$ and $T_5$ messages. These calculations take place during the authentication step, as illustrated in the proposed protocol (a) in Fig. 7.

In the protocol (b), additional calculations are required to address traceability attacks and breaches of anonymity, leading to the computation of the user’s new identity, referred to as $NHDID_j$ as $h(HDID_j\Vert R_j^{new})$. To ensure the integrity of this identity, the $Z_1$ message is computed as $Z_1=h(M_1\Vert M_2\Vert R_j^{new}\Vert NHDID_j)$. Both the server and user verify the correctness of this message by checking it against $Z_1^*$ and confirming its equality with the received $Z_1$. The user’s device also generates the value $NHID_i=h(HID_i\Vert R_1)$, which is verified by calculating $Z_2$ as $Z_2=h(M_3\Vert M_4\Vert R_1\Vert NHID_i)$ and sending it to the server. The server computes $NHID_i^*=h(HID_i\Vert R_1^*)$ and then computes $Z_2^*=h(M_3\Vert M_4\Vert R_1^*\Vert NHID_i^*)$ for equality checking with $Z_2$, thereby ensuring message integrity. Additionally, the $M_7$ message on the server has been modified to $M_7=h(R_j\Vert NHDID_j^*\Vert T_2\Vert T_4)$ compared to the original protocol. $NHID_i^*$ is incorporated into the $Z_3$ message as $Z_3=h(M_5\Vert M_6\Vert M_7\Vert T_4\Vert R_1^*\Vert NHID_i^*)$, allowing the user to verify messages integrity by calculating $Z_3^*=h(M_5\Vert M_6\Vert M_7\Vert T_4\Vert R_1\Vert NHID_i^*)$ and checking its equality with $Z_3$. In the proposal (b), a new value, $M_9=R_1 \oplus h(R_j^{new}\Vert NHDID_j )$, is also calculated in the gateway side, to determine $R_1^*$ in the drone for obtaining the new user identity, $NHID_i$. In the proposed protocol (b), the value of $Z_4=h(M_7\Vert M_8\Vert M_9\Vert R_j^{new}\Vert T_4\Vert T_5)$ is also added to provide the transmitted messages integrity, while in the drone side, it computes $Z_4 ^*=h(M_7\Vert M_8\Vert M_9\Vert R_j^{new}\Vert T_4\Vert T_5 )$ and checks its equality with $Z_4$, thereby ensuring message integrity. Figure 8 illustrates the enhanced protocol (b).

Fixing integrity contradiction attack in the improved drone- drone authentication phase

To preserve integrity property, it is suggested that in the drone-drone authentication phase of proposed protocols the encryption of the secret key be accomplished as $\{SK_3\Vert h(SK_3)\}_{{SK_1}/ {SK_2}}$. This allows the recipient to verify the integrity and correctness of sent session key. Because the second part of the concatenated value is a hash of the first part. So, the receipt can verify the correctness of decrypted session key by computing its hash value and comparing with the retrieved second part. Figure 9 illustrates the improved drone- drone authentication phase while the changes compared to the drone-drone authentication phase of the PRLAP-IoD protocol are highlighted in blue.

Fig. 9

Improved Drone-Drone authentication phase.

Key management and revocation strategy

In our proposed protocols, a new session key is generated with each authentication, which increases security by limiting the impact of possible key disclosure. The password PW value can be updated as needed as described below, allowing for timely changes to the secret values at the gateway side. To effectively manage device and key revocation, we also implemented a Centralized Revocation List (CRL) that is updated at the gateway side whenever a device is compromised, preventing the drone from communicating with another drone or server.

Updating password phase

In this phase, the proposed protocols (a) and (b) have an optional function to update the old password. Only $GWN_i$ can do this, not the Ser as below:

• 1. The $GWN_i$ asks the $U_i$ to input the outdated login credentials $(ID_i,PW_i^{old} )$.

• 2. Upon receiving $(ID_i,PW_i^{old})$ from $U_i$, $GWN_i$ checks whether $A_3=A_3^{old}$ is or not. For this purpose, it computes the random number $r_a^*=A_2\oplus h(ID_i\Vert PW_i^{old})$, $HPW_i^{old}=h(PW_i^{old}\Vert r_a^*\Vert ID_i)$ and $A_3^{old}=h(ID_i\Vert HPW_i^{old}\Vert PW_i^{old})$, if it is not valid, the gateway will reject the update request. Otherwise, $GWN_i$ believes the legitimacy of the user and requests a new password $PW_i^{new}$ from $U_i$.

• 3. After receiving $PW_i^{new}$ from user, $GWN_i$ computes $HPW_i^{new}=h(PW_i^{new}\Vert r_a^*\Vert ID_i)$, $K_{GS}^i=W_i\oplus HPW_i^{old}$, $W_i^{new}= K_{GS}^i\oplus HPW_i^{new}$, $A_2^{new}=r_a^*\oplus h(ID_i\Vert PW_i^{new})$ and $A_3^{new}= h(ID_i\Vert HPW_i^{new}\Vert PW_i^{new})$. Finally, $W_i^{new}$, $A_2^{new}$ and $A_3^{new}$ are stored to $GWN_i$ to replace the $W_i$, $A_2$ and $A_3$ respectively.

Proposed protocols security analysis

In this section, we will formally and informally analyze the security of the improved schemes. We will also evaluate their resilience against common attacks. We will employ the Scyther tool as a security protocol verifier.

Informal security analysis

In this section, we will conduct a comprehensive informal security analysis of the improved authentication schemes and verify their resilience against common attacks in the Dolev-Yao adversary model which explained as below:

Dolev-Yao adversary model:

The Dolev-Yao adversary model²⁹ is a theoretical framework in cryptography that outlines the capabilities of an adversary attempting to compromise the security of cryptographic protocols. In this model, the adversary has several key capabilities:

• can control communication channels, allowing intercept, modify, or inject messages between legitimate parties;

• has the ability to impersonate legitimate users, facilitating identity spoofing;

• can perform replay attacks by capturing and reusing valid messages;

• may collaborate with other malicious entities to enhance their attack strategies;

• can access the internal state of protocols or participating entities, which helps gather sensitive information; and finally, can execute adaptive attacks, adjusting their tactics based on the responses from legitimate parties.

These capabilities make the Dolev-Yao model a critical consideration in the design and analysis of secure cryptographic systems. In this paper, we use this adversary model in the analysis and proof of the security of the proposed protocols.

Mutual authentication

The server is tasked with confirming the legitimacy of the messages exchanged between the drone and the user. In particular, the drone transmits $M_2$, to which the server replies with $M_7$ for mutual authentication. Likewise, the user sends $M_4$ to the server, who then responds with $M_6$ to verify their identities to one another. Ultimately, the drone and the user authenticate each other by exchanging $M_1$ and $M_8$ respectively. This process of mutual authentication guarantees that all participants are indeed who they assert they are.

Session key agreement

Following a successful protocol execution, a session key SK is established for future communication between the drone and the user. This key $SK=h(K_1\Vert R_j^{new})$ incorporates the drone’s response $R_j^{new}$ to a challenge $C_j^{new}$ generated by the user, along with a random number $K_1$ generated by the user. This shared creation of the session key, involving both the user, drone, and server, ensures mutual authentication and data confidentiality.

Effective interception for illegal login

The proposed schemes utilize $A_3=h(ID_i\Vert HPW_i\Vert PW_i)$, which is generated during the user registration phase. Upon receiving the $ID_i$ and $PW_i$ from the user, the $GWN_i$ computes $r_a^*=A_2\oplus h(ID_i\Vert PW_i)$ and $HPWi^*=h(PW_i\Vert r_a^*\Vert ID_i)$ to derive $A_3^*=h(ID_i\Vert HPW_i^*\Vert PW_i)$. Then $A_3^*$ and $A_3$ are compared, and if they do not match, the login request is denied. This approach effectively reduces unnecessary communication and computational burden.

Resistance to user device loss attack

Many studies have shown that sensitive data stored in memory can be vulnerable to side-channel attacks³¹, including power analysis³² and electromagnetic analysis³³. As a result, it is essential to take into account the potential risks associated with a compromised user device when designing authentication protocols. In the proposed schemes, the drone holds the messages $B_1$, $HDID_j$, and $GID_i$ while the user’s device contains the messages $W_i$, $A_1$, $A_2$, $A_3$, $HDID_j$, $HID_i$, and COUNTER. Even if an attacker manages to obtain these values, s/he would still be unable to retrieve the actual identity $ID_i$, password $PW_i$, and response $R_j$ without access to the random nonce $r_a$, the challenge $C_j$, and the server’s secret key $X_{Ser}$. Thus, the proposed schemes effectively defend against physical attacks, such as the loss of a user device.

Resistance to physical attack

In a physical capture attack on a drone, an adversary attempts to extract the values stored in the drone’s memory. However, this is thwarted by a PUF within the drone. The PUF’s challenge-response pairs are highly dependent on the device’s physical characteristics and environmental conditions, making any attempt at tampering or replication futile. A compromised drone would produce verification values that are unrecognizable by the server. Even if the PUF is not tampered with but simulated, the lack of messages, such as $C_j$ and $A_1$ prevents the adversary from calculating the desired information. Since the PUF is integrated into the physical circuitry during the drone’s manufacturing process, its behavior cannot be replicated. Consequently, physical capture attacks on drones equipped with PUFs are rendered ineffective.

Resistance to impersonation attack

The proposed schemes are resistant to both user and drone impersonation attacks. To impersonate a user, an adversary would require access to the user’s unique identifier $ID_i$ and password $PW_i$, which is highly impractical. Similarly, to impersonate a drone, an attacker would need to replicate the unique response $R_j$ generated by the PUF, and it must be provided to the server. However, due to the inherent unpredictability and physical nature of the PUF, it is virtually impossible to generate a matching response. Therefore, the system is robust against all kinds of impersonation attacks.

Resistance to privileged insider attack

A legitimate user submits a registration request to the authority with a message containing $HID_i$, $HPW_i$. If an insider attacker attempts to obtain the user’s password $PW_i$, it is impossible due to the presence of $r_a$, $ID_i$ and the hash function. Therefore, the proposed schemes are highly resistant to privileged insider attacks.

Resistance to de-synchronization attack

In the enhanced protocol (a), there is a requirement to retain the same secret data for each session, and the information does not need to be updated by the entity following successful authentication. Conversely, in the enhanced protocol (b), both the drone’s pseudonymous identity and the user’s pseudonymous identity are updated across all active entities in the session after a successful session. To mitigate the risk of a de-synchronization attack, we store both the new and old pseudonymous identity values. This means that in the improved protocol (b), if one party updates its information but the message fails to reach the other party for any reason, the other party will not update its values, leading to a state of de-synchronization. In this scenario, the previous pseudonymous identities can still provide protection against this issue, allowing communication within the protocol to proceed using those identities.

Forward /backward secrecy

Forward secrecy (also known as perfect forward secrecy) ensures that even if a long-term private key is compromised in the future, previously established session keys remain secure. This means that past communications cannot be decrypted, as each session uses a unique ephemeral key that is not derived from the long-term key only.

Backward secrecy, on the other hand, refers to the ability to ensure that if a long-term private key is compromised, it does not affect the security of future sessions. In other words, even if an attacker gains access to a long-term private key, they cannot use it to decrypt or compromise any future communications.

The established session key SK is composed of the response $R_j^{new}$ and the random number $K_1$ of the user not long-term secret values. $R_j^{new}$ and random number $K_1$ are different for each session. Therefore, even if a malicious adversary obtains long-term secret keys, the authenticity of the previous and future session keys will not be affected. Hence, proposed schemes have forward/backward secrecy features.

Scheme validation using the Scyther tool

The Scyther tool is a robust and commonly utilized resource for analyzing and validating security protocols. It has been developed to operate on MAC, Linux, and Windows platforms. In this study, the Scyther Compromise-0.9.2 is employed to simulate the proposed protocols on Ubuntu 16.04.6 running on VMware®Workstation 17 Pro.

In this section, we have utilized the Scyther tool to implement and evaluate the proposed protocols. The Scyther tool uses Security Protocol Description Language (SPDL) as its format for accepting security protocols. Within SPDL, each entity in the protocol is assigned a specific role. In the SPDL representation of our proposed protocols, G denotes the User/Gateway role, D signifies the Drone role, and S indicates the Server role. A key aspect of the security analysis involves assessing the protocol’s behavior against known attacks as outlined in the Scyther tool claims.The notations and security claims of the Scyther tool are described in Table  3.

Table 3 The Scyther tool security claims and the notations used in SPDL representation of protocol.

Figure 10 showcases the Security Protocol Description Language (SPDL) source code for the proposed protocol (a). This code is a formal representation that meticulously outlines the interactions and behaviors of the entities involved in the protocol, thereby providing a clear framework for understanding its operational mechanics. The SPDL format not only specifies the messages exchanged between participants but also encapsulates the underlying logic governing these exchanges. Following this, the security verification results for proposed protocol (a) are illustrated in Fig. 11, which details the outcomes of an extensive analysis conducted using the Scyther tool. This analysis assesses the protocol’s resilience against various security threats, such as replay attacks and man-in-the-middle attacks, ensuring that the protocol adheres to established security standards.

In addition to the proposed protocol (a), Fig. 12 presents the SPDL source code for the proposed protocol (b), which similarly delineates the key components and interactions essential for its functionality. Accompanying this source code, the corresponding security verification results for proposed protocol (b) are also provided as depicted in the Fig. 13, offering insights into its security efficacy. These results stem from a thorough evaluation process aimed at identifying potential vulnerabilities and ensuring that the proposed protocol (b) maintains a robust defense against various attack vectors, thus validating its reliability for practical applications.

Fig. 10

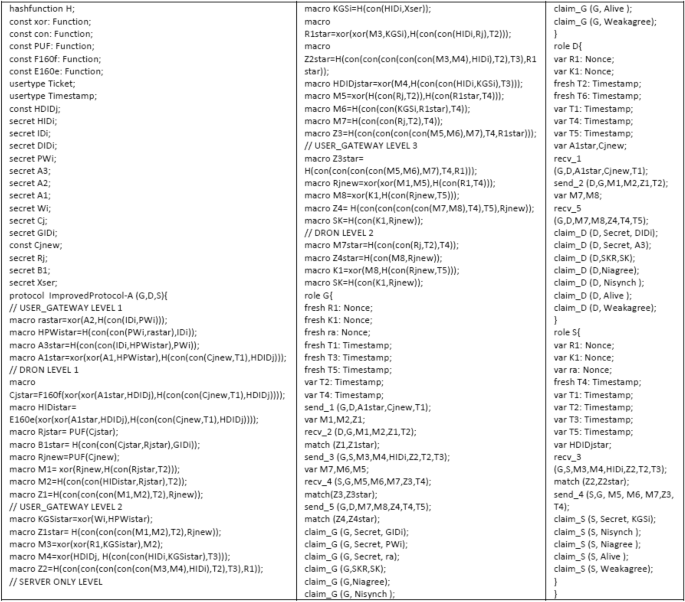

The Scyther SPDL source code of the proposed protocol (a).

Fig. 11

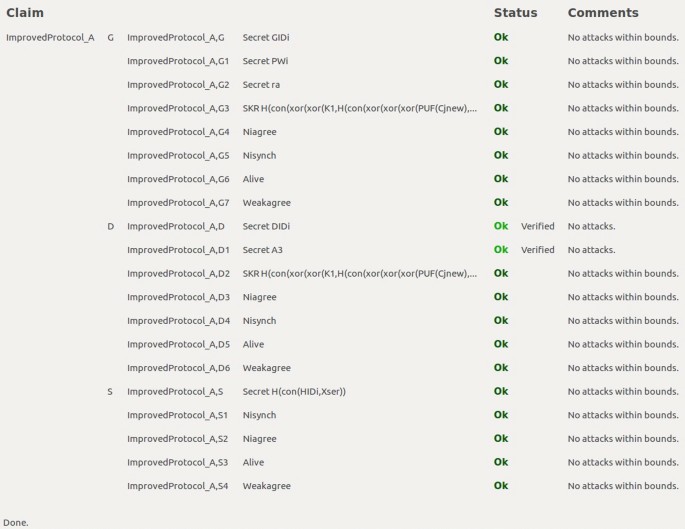

The security verification result of the proposed protocol (a) through the Scyther Compromise-0.9.2 tool.

Fig. 12

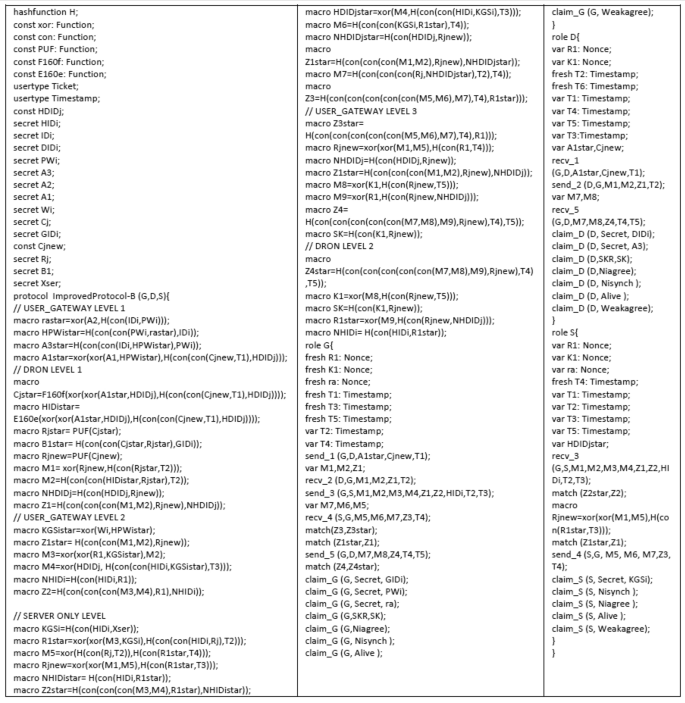

The Scyther SPDL source code of the proposed protocol (b).

Fig. 13

The security verification result of the proposed protocol (b) through the Scyther Compromise-0.9.2 tool.

Security comparison of the proposed protocols with recent protocols

In this section, we evaluate the proposed protocols (a) and (b) against recent protocols^{9,10,11,22,23,24,26,27}, with the findings summarized in Table 4. Protocols¹⁰ and¹¹ exhibit flaws related to forward secrecy and are vulnerable to attacks that can disclose secret values. Precisely, in protocol²², a privileged insider attacker who gains access to the pseudonymous identity of a registered drone can establish session keys with other drones. Meanwhile, in²³, if a malicious registered user retains the $F_i$ value from a previous authentication, they can utilize this value to compute the session key without needing to send authentication requests to the authentic server during the next authentication step. This undermines the necessity for the server’s involvement in generating a new session key, exposing a security weakness in the session key agreement of²³. Additionally, both protocols²² and²³ are susceptible to physical capture attacks on the device, as they store long-term key values in the device’s memory for subsequent authentication. To the best of our knowledge, there have been no reported attacks or vulnerabilities for IoD authentication schemes of^24,26 and²⁷.

Detailed explanations of the security issues in the⁹’s protocol can be found in Sect. “Security analysis of the PRLAP-IoD”. Consequently, the proposed protocols in this study offer enhanced security features compared to the other recent schemes analyzed.

Table 4 Security properties comparison of the proposed schemes with recent similar schemes.

Performance evaluation

When developing authentication protocols for the Internet of Drones (IoD) environment, it is essential to take into account the efficient utilization of resources. In this section, we will first compare the computational costs of the proposed protocols with those of protocols^{9,10,11,22,23,24,26,27}, followed by a comparison of their communication costs and storage costs.

Computational cost comparison

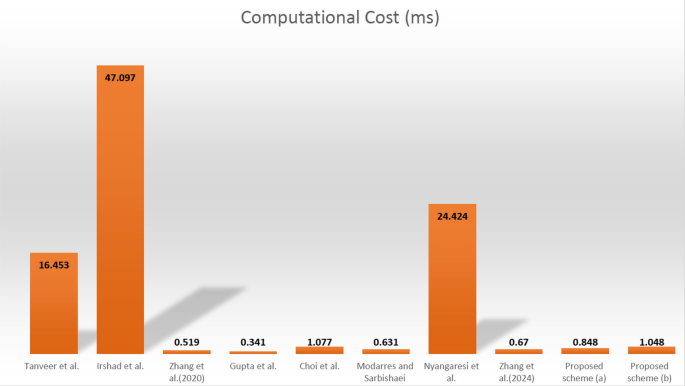

Table 5 shows the execution time of each operation based on the execution time used in³⁴. Smart metering in³⁴ can be used as a reference to help us compare the computational cost of the proposed schemes with other schemes. The calculations were performed on a device equipped with a 798MHz processor and 256MB of RAM, and the server was simulated on an Ubuntu 12.04 virtual machine with a 2.6GHz i5-4300 processor. To consider PUF performance evaluation,³⁴ uses a 128-bit arbiter PUF circuit on an MSP430 micro controller device with a 798 MHz processor. The timing of cryptographic operations can vary significantly due to several factors related to the hardware and software environments. Key influences include hardware specifications, such as processing power and memory speed, which directly affect execution times; software implementation efficiency, where optimized or hardware-accelerated algorithms can enhance performance; environmental factors like network latency and bandwidth, impacting operations that rely on server communication; concurrent processes that may cause resource contention; and configuration settings, including buffer sizes and algorithm parameters. Understanding these factors helps clarify the variability in operation times across different environments, facilitating a better interpretation of results.

Table 5 Execution time of different operations used in this paper (in ms)³⁴.

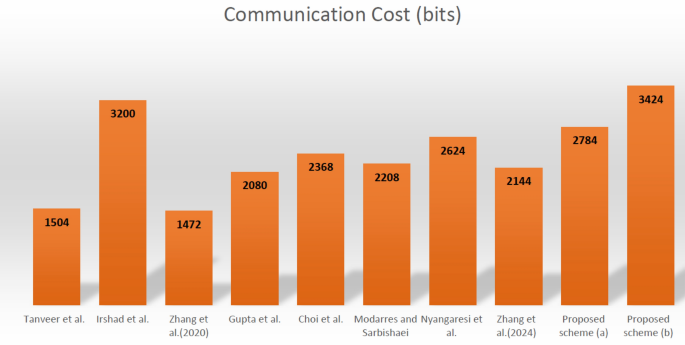

In²⁴, the communication cost at the drone is $2T_{PUF} + 13T_h$ and at the user side is $12T_h$, and at the server side, is $17T_h$. The total execution time for the authentication phase in this scheme approximately is 1.077 milliseconds.

In²⁶, the communication cost at the drone $T_{PUF} + 7T_h$ and at the user side is $8T_h$ , and at the server side, is $2T_{PUF} +11T_h$. The total execution time for the authentication phase in this scheme approximately is 0.631 milliseconds.

In²⁷, the communication cost at the drone is $T_{PUF} +4T_{mp}+4T_h+2T_{pa}$ and and at the server side, they amount to $5T_{mp}+5T_h+T_{pa}$. The total execution time for the authentication phase in this scheme approximately is 24.424 milliseconds.

In the scheme⁹, the drone executes six hash operations and two PUF operations. Therefore, the execution time on the drone is $2T_{PUF}+6T_h \approx 0.396 ~ms$. The user executes eight hash operations. Therefore, the execution time on the user side is $8T_h \approx 0.208$ ms. Similarly, the server performs six hash operations, with a time of $6T_h \approx 0.066$ms. Thus, the total execution time of the scheme⁹ approximately is 0.67 ms.

In the proposed protocol (a), the drone executes eight hash operations and two PUF operations. Therefore, the execution time on the drone is $2T_{PUF}+8T_h \approx 0.448$ ms. The user also executes 12 hash operations, resulting in an execution time of $12T_h \approx 0.312$ ms on the user side. Similarly, the server performs eight hash operations, with a time of $8T_h \approx 0.088$ ms. Thus, the total execution time required for the computations in the proposed protocol (a) approximately is 0.848 ms.

In the proposed protocol (b), the drone executes eleven hash operations and two PUF operations. Therefore, the execution time on the drone is $2T_{PUF}+11T_h \approx 0.526$ ms. The user also executes 15 hash operations, resulting in an execution time of $15T_h \approx 0.39$ ms on the user side. Similarly, the server performs twelve hash operations in a time of $12T_h \approx 0.132$ ms. Thus, the total execution time required for the computations in the proposed scheme (b) approximately is 1.048 ms.

The execution time for the schemes^{9,10,11,22,23} is calculated in a similar way, with the results presented in Table 6.

Table 6 Comparison of computation cost (in ms) of proposed schemes with similar recent schemes.

Figure 14 shows the computational cost comparison of the proposed schemes with recent similar schemes.

Fig. 14

Graphical computational cost comparison of proposed schemes with similar recent schemes.

Communication cost comparison

First, we give the basic definition of communication cost, which is equal to the number of bits sent on the communication channels by entities present in each session. The lower the number of these bits, the lower the network traffic and the higher the transfer speed.

A comprehensive evaluation of communication costs of proposed protocols is conducted based on key metrics, namely the quantity and size of exchanged messages.

The number of exchanged messages for the proposed scheme and schemes^{9,10,11,22,23,24,26,27} was counted as described below. In the Tahavor et al. protocol³⁵, we assumed $32-\text {bit}$ timestamp $B_t$, $128-\text {bit}$ Pseudonymous identity $B_{id}$, $128-\text {bit}$ random numbers $B_r$, $160-\text {bit}$ SHA-1 hash function $B_h$, $160-\text {bit}$ PUF challenge-response pair $B_p$, and $128-\text {bit}$ fuzzy extractor output $B_f$, and $320 ~\text {bits}$ for the elliptic curve point $B_e$. We also used conventional values for further calculations, including $256-\text {bit}$ chaotic map $B_{cmap}$, $160-\text {bit}$ private key $B_{pr}$, and $320-\text {bit}$ public key $B_{pu}$. Additionally, based on calculations in¹⁰, two values were uniquely used: $128-\text {bit}$ ciphertext $B_{ct}$ and a variable-length $T_{R_a} (SP_{11})$ that could be either $288 ~\text {bits}$ or $416 ~\text {bits}$, depending on its content. The bit lengths of the parameters used in the communication cost comparison are shown in the Table  7.

Table 7 The bit lengths of the parameters used in the communication cost comparison.

Tanveer et al.¹⁰’s scheme involves three message exchanges for authentication and access to the drone. These messages have sizes of $576~ \text {bits}$, $608 ~\text {bits}$, and $320~ \text {bits}$, resulting in a total message size of $1504 ~\text {bits}$. Irshad et al.¹¹’s scheme involves three message exchanges as $\langle W_{u_i},Cert_{u_i}^+,R_1^ \prime ,SID_{u_i}^*,Q_{u_i},TS_1\rangle$, $\langle W_{u_i}^*,X_i,Cert_{CN_j}^ \prime ,R_1^\prime ,D_{u_i}, TS_1,TS_2\rangle$ and $\langle Cert_{SD_k}^+,N_{SD_k},R_2^ \prime ,SKV,W_{u_i}^*,TS_2,TS_3\rangle$. The first message, comprising a $128-\text {bit}$ ciphertext $(W_{u_i })$, $Cert_{u_i}^+$ comprises various components: a private key, two elliptic curve multiplications contributing 1120 bits in total, $R_1^ \prime$ is an elliptic curve multiplication which occupying $320 ~\text {bits}$, $SID_{u_i}^*$ is a pseudonymous identity with $160 ~\text {bits}$, $Q_{u_i}$ is the output of a hash function and is equivalent to $160 ~\text {bits}$ and finally $TS_1$ is a $32-\text {bit}$ timestamp, resulting in a total message size of $992~ \text {bits}$. The second and third messages, respectively, require $1024~ \text {bits}$ and $1184 ~\text {bits}$. Thus, the overall size of all messages in¹¹’s scheme is $3200 ~\text {bits}$. In²⁴, the transmitted messages are $Msg1 = \{{PID}_i, M_1, M_2, V_1, T_1\}$, $Msg2 = \{M_3, M_4, V_2, T_2\}$, $Msg3 = \{M_5, M_6, V_3, T_3\}$, and $Msg4 = \{M7, V4, T4\}$. Therefore, the communication cost for this scheme equal with ${Msg1} =$$160 + 160 + 160 + 160 + 32$$= 672~\text {bits}$, ${Msg2} =$$(160 + 160) + 160 + 160 + 32$$= 672 ~\text {bits}$, ${Msg3} =$$(160 + 160) + 160 + 160 + 32 = 672$ bits, and ${Msg4} = 160 + 160 + 32 = 352$ bits. Thus, the total communication overhead during authentication is $672 + 672 + 672 + 352 = 2368$ bits as shown in Table 8.

In²⁶, the transmitted messages are ${M_1} =$$\{\text {PID}_u, C_g, X_1,$$X_2, T_1, I_1\}$, ${M_2} =$$\{\text {PID}_d, \text {PID}_u,$$C_d, X_3, X_4, T_2, I_2\}$, and ${M_3} =$$\{\text {PID}_d, X_5, T_3, I_3\}$. Therefore, the communication cost for this scheme equal with ${M_1} =$$160 + 160 + 160$$+ 160 + 32 + 160$$= 832$ bits, ${M_2} =$$160 + 160 + 160 + 160$$+ 160 + 32 + 160 = 992$ bits, and ${M_3} =$$160 + 32 + 32 + 160$$= 384$ bits. Thus, the total communication overhead during authentication is $832 + 992 + 384$$= 2208$ bits, as shown in Table 8.

In²⁷, the transmitted messages are ${D_{req}} =$$\{{PID}_i, D_1, D_2, D_3\}$, $G_{Res} =$$\{G_2, G_4,$$G_5, G_6, T_1\}$, and ${D_{Auth1}} =$$\{{PID}_j, D_5, D_6, T_3\}$. So, the communication cost for this scheme is ${D_{req}} =$$160 + 320 + 320 + 320$$= 1120~\text {bits}$, ${G_{Res}} =$$160 + 320 + 160 + 160 + 32$$= 832~\text {bits}$, and ${D_{Auth1}}$$= 160 + 320 + 160 + 32 = 672 ~\text {bits}$. Thus, the total communication overhead during authentication is $1120 + 832 + 672 = 2624~\text {bits}$.

In⁹’s scheme, the drone sends one message and receives two messages, the user sends three messages and receives two messages, and the server sends one message and receives one message. These five messages are $\langle A_1^*,C_j^{new},T_1\rangle$, $\langle M_1,M_2,T_2\rangle$, $\langle M_3,M_4,HDID_j,T_2,T_3\rangle$, $\langle M_5,M_6,M_7,T_4\rangle$, and $\langle M_7,M_8,T_4,T_5\rangle$, which include ten hash functions, an identity, seven time stamps, and a PUF function challenge. Therefore, the total size of these messages is $(10\times 160)+(1\times 160)+(7\times 32)+(1\times 160)=2144 ~\text {bits}$.

In the proposed scheme (a), the messages are $\langle A_1^*,C_j^{new},T_1\rangle$, $\langle M_1,M_2,Z_1,T_2\rangle$, $\langle M_3,M_4,HID_i,Z_2,T_2,T_3\rangle$, $\langle M_5,M_6,M_7,Z_3,T_4\rangle$, and $\langle M_7,M_8,Z_4,T_4,T_5\rangle$. Notably, by including the values of $Z_1, Z_2, Z_3$ and $Z_4$, four additional hash functions have been incorporated into the transmitted items. The remaining values consist of an identity, seven timestamps, and a challenge for the PUF function. In total, the size of all messages exchanged in the proposed scheme (a) equals to $(14 \times 160) + (1 \times 160) + (7 \times 32) + (1 \times 160) = 2784 ~\text {bits}$.

In scheme (b), the messages exchanged include $\langle A_1^*,$$C_j^{new},T_1\rangle$, $\langle M_1,$$M_2,Z_1,T_2\rangle$, $\langle M_1,M_2,M_3,M_4,$$Z_1,Z_2, HID_i,T_2,T_3\rangle$, $\langle M_5,M_6,$$M_7,Z_3,T_4\rangle$ and $\langle M_7,M_8,M_9,$$Z_4,T_4,T_5\rangle$. The total communication cost is calculated based on the transmission of 18 hash functions, one identity, seven timestamps, and one challenge for the PUF function. This results in a total of $(18\times 160)+(1\times 160)+(7\times 32)+(1\times 160)=3424~ \text {bits}$. The communication cost for schemes^22,23 is similarly computed, and the findings are presented in Table 8.

Table 8 Communication cost comparison (in bits) of proposed schemes with similar recent schemes.

Figure 15 shows communication cost comparison (in bits) of proposed schemes with recent similar schemes.

Fig. 15

Graphical communication cost comparison (in bits) of proposed schemes with recent similar schemes.

After conducting security evaluations and comparing the proposed schemes with similar ones, we found that the schemes (a) and (b) incur higher communication and computational costs. Nevertheless, considering their robustness against various known attacks and the partial vulnerability of the other schemes to these threats, the rise in costs can be regarded as minimal.

Storage cost comparison

This section compares the memory requirements for storing essential parameters in the devices (for the schemes^{9,10,22,24,26,27} drone and IoT devices for schemes^11,23) and the drone for our proposed schemes. Table 9 summarizes the results.

In¹⁰’s scheme, the data elements $\langle SID_j,DSK_j,GID_k\rangle$ are stored in the drone’s memory where $SID_j$ is a pseudonymous identity of $160~\text {bits}$, $DSK_j$ is a private key of $160~\text {bits}$, and $GID_k$ is another identity of $160~ \text {bits}$. Consequently, the total storage requirement for¹⁰’s scheme is also $480~\text {bits}$.

Irshad et al.¹¹’s scheme stores the following values in IoT device memory: $SID_{SD_k}$ and $ID_{CN_j}$ are two $160-\text {bit}$ pseudonyms for identification and authentication, $N_{CN_j}$ is a $320-\text {bit}$ elliptic curve point multiplication result, $Pr_{SD_k}$ is a $160-\text {bit}$ private key and $Pub_{SD_k}$is a $320-\text {bit}$ public key, $N_{SD_k}$ is another $320-\text {bit}$ elliptic curve point multiplication result, $Cert_{SD_k}$ is a $160-\text {bit}$ and $K_{{SD_k},CN_j}$ is a $160-\text {bit}$ hash function output respectively. Based on these values, the total required storage is $1760~\text {bits}$.

In²²’s scheme, the $\langle \alpha _j,PID_j\rangle$ are stored in the drone’s memory, which $\alpha _j$ is a $160-\text {bit}$ hash function output and $PID_j$ is a pseudonymous identity of a drone that is equal to $160~\text {bits}$. Based on the specified values, the total required storage is $(2 \times 160)=320~\text {bits}$.

Gupta et al.²³’s scheme stores the values in the wearable device as $\langle e_j,x_j,f_j,MI_u,MGID_i\rangle$ where $e_j$, $x_j$ and $f_j$ are three $160-\text {bit}$ hash function outputs. $160-\text {bit}$ pseudonymous identities of user and gateway are denoted as $MI_u$ and $MGID_i$, respectively. So, based on the specified values, the total required storage is $(5 \times 160)=800~\text {bits}$.

In²⁴, the drone stores only $\{PDID_j, b_j\}$, which is equal to $\{160 + 160 = 320~\text {bits}\}$. The drone in²⁶, stores $ID_g$, $ID_d$, and MK, along with an emergency list of essential secrets, which is equal to: $\{2 \times (160 + 160 + 160) = 960~\text {bits}\}$. In²⁷, the drone stores the values $\{PUF(.), ID_i, Ch_i, D_1, D_2, D_3, D_4\}$ in its memory, which is equal to $\{160 + 160 + 320 + 320 + 320 + 160 = 1440 ~\text {bits}\}$.

In the scheme presented in⁹, the data $\langle B_1,HDID_j,GID_i\rangle$ are kept in the drone’s memory, where $B_1$ is a hash function output of $160~\text {bits}$, $HDID_j$ represents the drone’s pseudonymous identity of $160~\text {bits}$, and $GID_i$ denotes a gateway node identity of $160~\text {bits}$. This results in a total memory requirement of $(3 \times 160)=480~\text {bits}$. Even with the enhanced security features of the improved protocol (a), the storage requirement for the drone remains the same as in⁹’s scheme. Likewise, the proposed protocol (b) also necessitates an equivalent amount of memory as both⁹’s scheme and improved protocol (a).

Table 9 The total storage cost comparison of proposed schemes with other similar schemes.

Figure 16 depicts the storage cost of the proposed schemes compared to other recent similar schemes.

Fig. 16

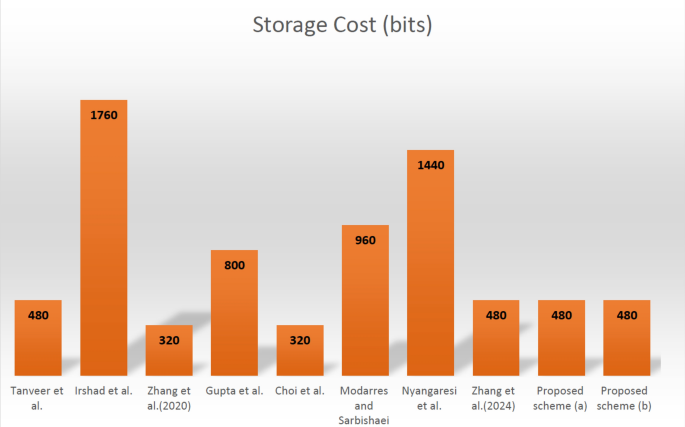

Graphical total storage cost comparison of proposed schemes with other similar schemes.

Conclusion

In recent years, the Internet of Drones (IoD) has seen significant expansion and is increasingly utilized in both civilian and military sectors. Many researchers have developed authentication protocols tailored for IoD environments; however, numerous protocols have been found inadequate in defending against various attacks and have not managed to maintain low communication and computational costs.

Recently, Zhang et al. introduced an authentication method leveraging Physical Unclonable Functions (PUFs), incorporating unique identifiers and hash functions to enhance security in Internet of Devices (IoD) communications. However, our study revealed that this method is susceptible to multiple attacks, such as secret value exposure, integrity breaches, key extraction, traceability issues, and loss of anonymity. The attacks discussed were shown to have a success probability of one.

In this paper, we also presented two PUF-based authentication protocols specifically designed for IoD communications, focusing on drone-to-user and drone-to-drone interactions, to tackle these pressing challenges. The proposed protocols, both in terms of communication and computational costs, are higher than the previous scheme by Zheng et al. However, they have similar storage costs to that scheme. An important point to note is that these proposed protocols offer enhanced security against a wider range of attacks compared to their predecessor. Specifically, proposed protocol (a) is not secure against anonymity violation and user traceability attacks, making it suitable for applications where these properties are not critical. On the other hand, if anonymity and resistance to user traceability are essential, protocol (b) should be utilized, as it provides these features, albeit at a higher computational and communication cost compared to protocol (a). The suggested protocols (a) and (b) are also scalable since the data from the drones is kept on the server, which has no constraints. Each drone retains only its own data. In drone-drone communication, the default gateway generates the communication key, which is then encrypted using the long-term key that is shared between the drones and the gateway before being sent to the drones. As a result, each drone only needs to keep its own key with the default gateway and does not have to store separate communication keys for interactions with other drones.

Security evaluations and performance analyses indicated that the proposed protocols encompass all necessary security features essential for unmanned aerial vehicle networks, thereby ensuring the reliability of the systems.
