Fig. 1
From: Evaluating the efficiency of formaldehyde degradation from aqueous environment by sonozone technique

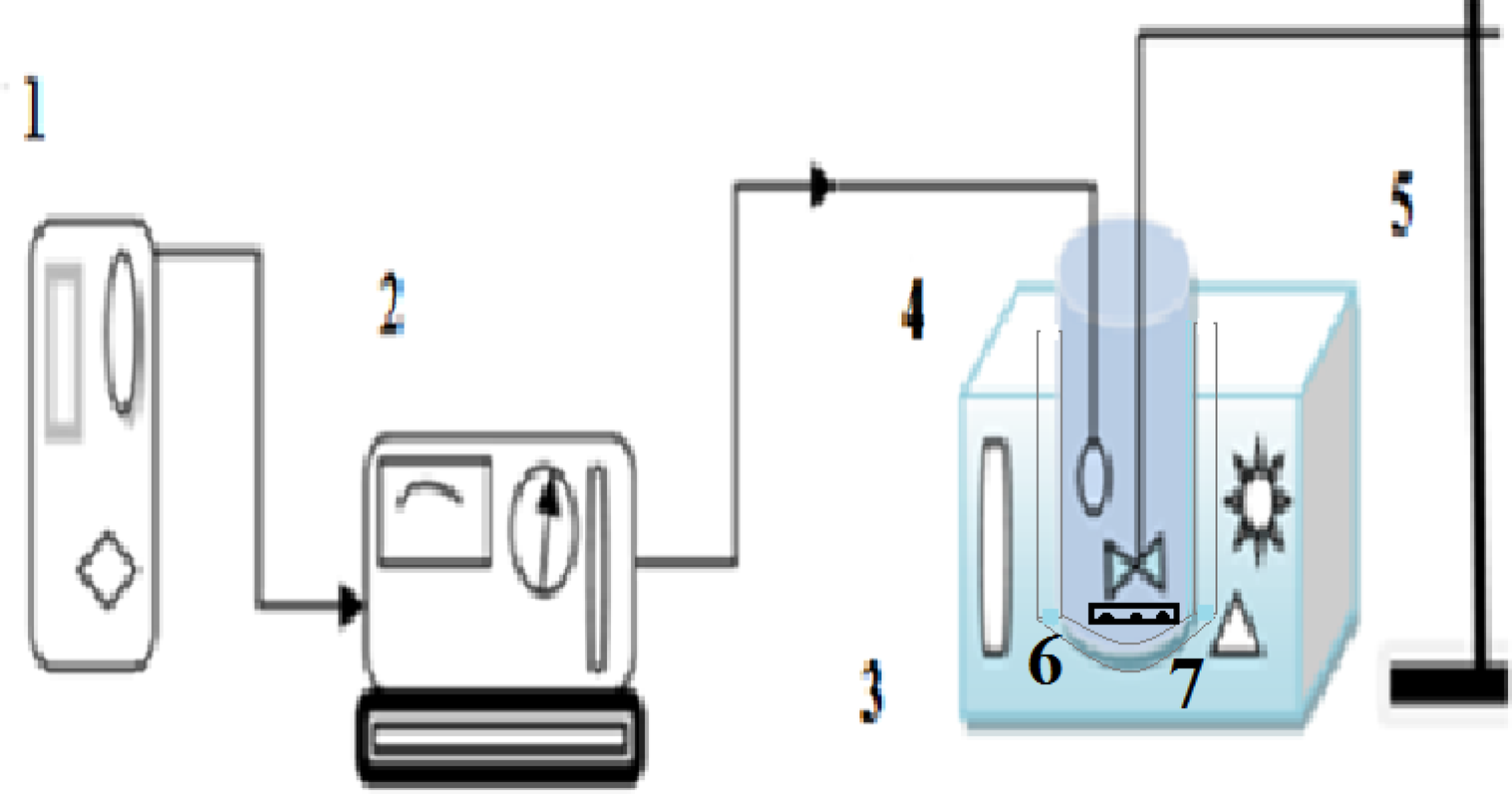

Pilot schematic design of the reactor used in the research (1. Oxygenator, 2. Ozone generator, 3. US chamber, 4. Reaction chamber, 5. Agitator 100 rpm, 6. Water bath, 7. Ozone diffuser).
