From: Anti-inflammatory effects of Lonicera macranthoides Hand.-Mazz based on Spectrum-effect relationship, network pharmacology and molecular docking technology

Fig. 5

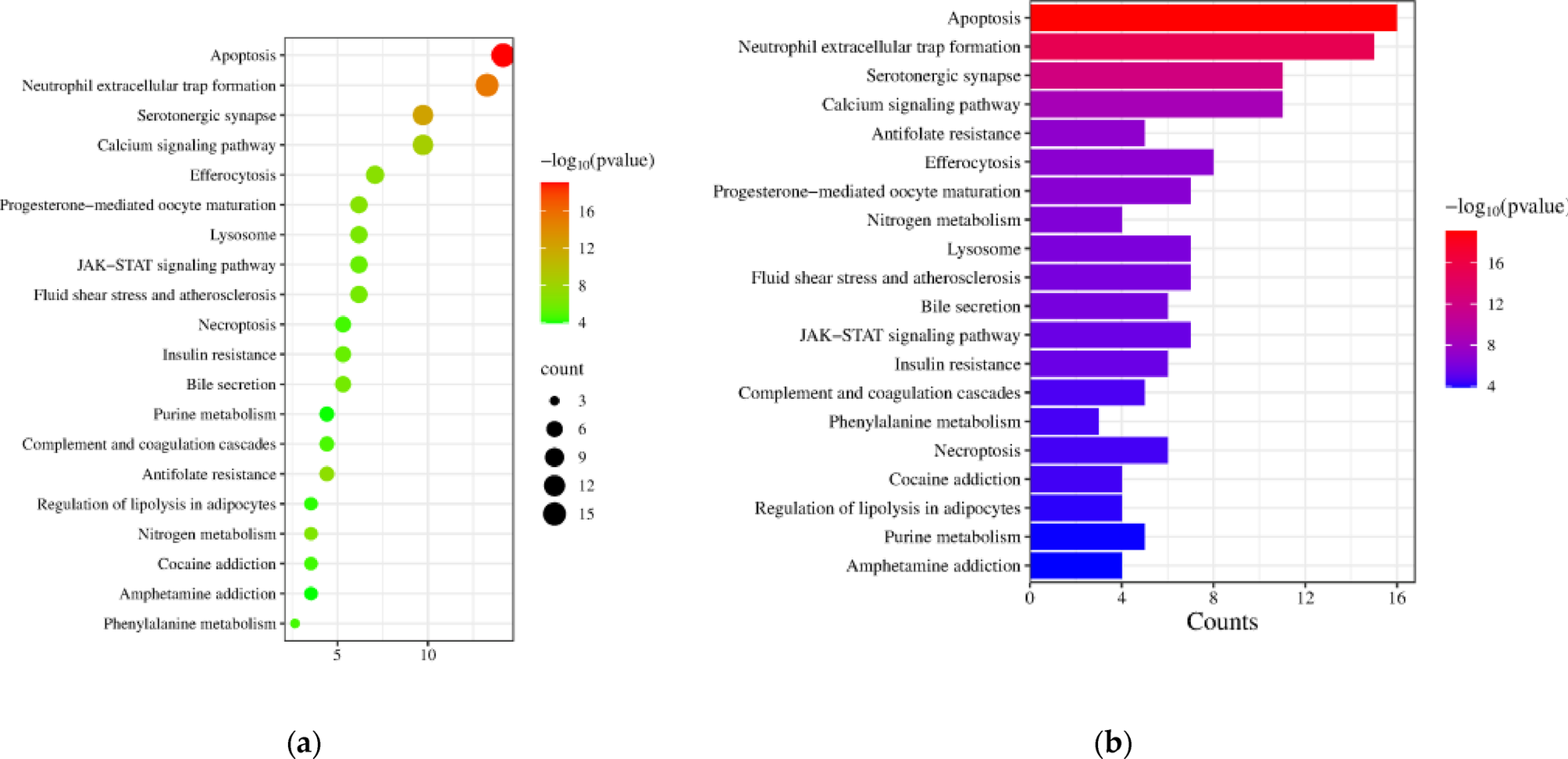

KEGG analysis of potential targets. (a) The bubble diagram illustrates the top 20 enriched KEGG pathways. In this representation, the size of each bubble corresponds to the quantity of enriched genes, while the intensity of the color reflects the level of enrichment significance. (b) The histogram depicts the frequency and importance of enrichment for each pathway, where the length of each bar represents gene counts and levels of enrichment.
