Fig. 3

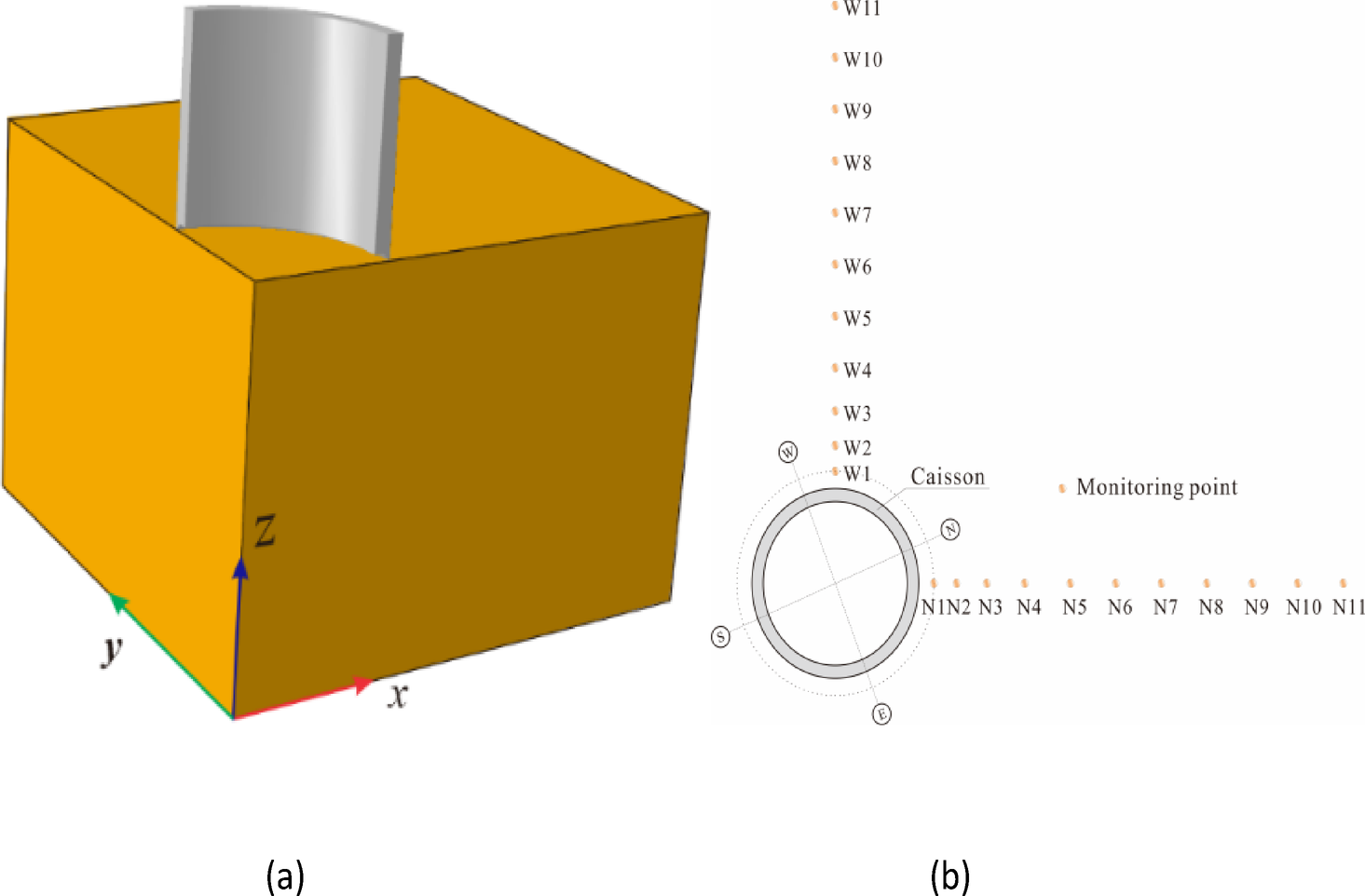

Three-Dimensional numerical model of quarter of the caisson and monitoring points of ground subsidence ((a) One-quarter numerical model, (b) The diagram of monitoring points of ground subsidence around the caisson).
