Fig. 10

From: Recipe optimization and SRF test of Cu-compatible Nb\({}_{3}\)Sn films by DC magnetron sputtering from a stoichiometric target

Fig. 10

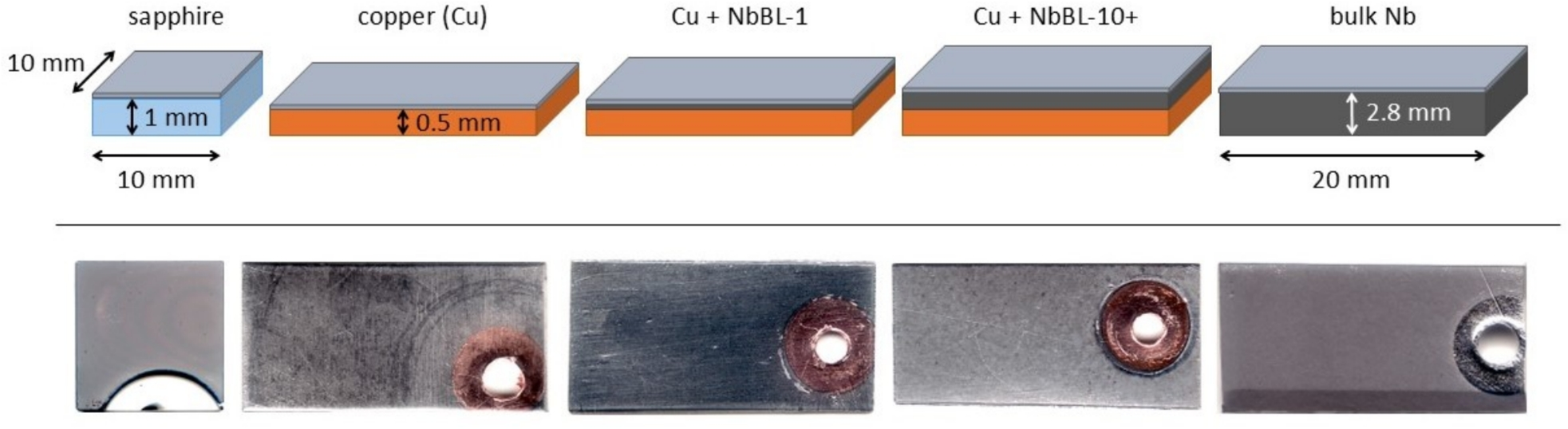

Schematic representation of the different substrate types employed for the deposition of the \(\textrm{Nb}{}_{3}\textrm{Sn}\) films. The size of the substrates is also given. The thicknesses are not to scale. The bright gray layer on top represents the \(\textrm{Nb}{}_{3}\textrm{Sn}\) film. A real-life picture of the \(\textrm{Nb}{}_{3}\textrm{Sn}\) film side of each substrate after the deposition process is shown in the line below, with the NbBL-10+ being in this case a 30 \(\upmu\)m thick NbBL.
