Figure 8
From: Pan-cancer and multi-omics analyses reveal the diagnostic and prognostic value of BAZ2B in cancer

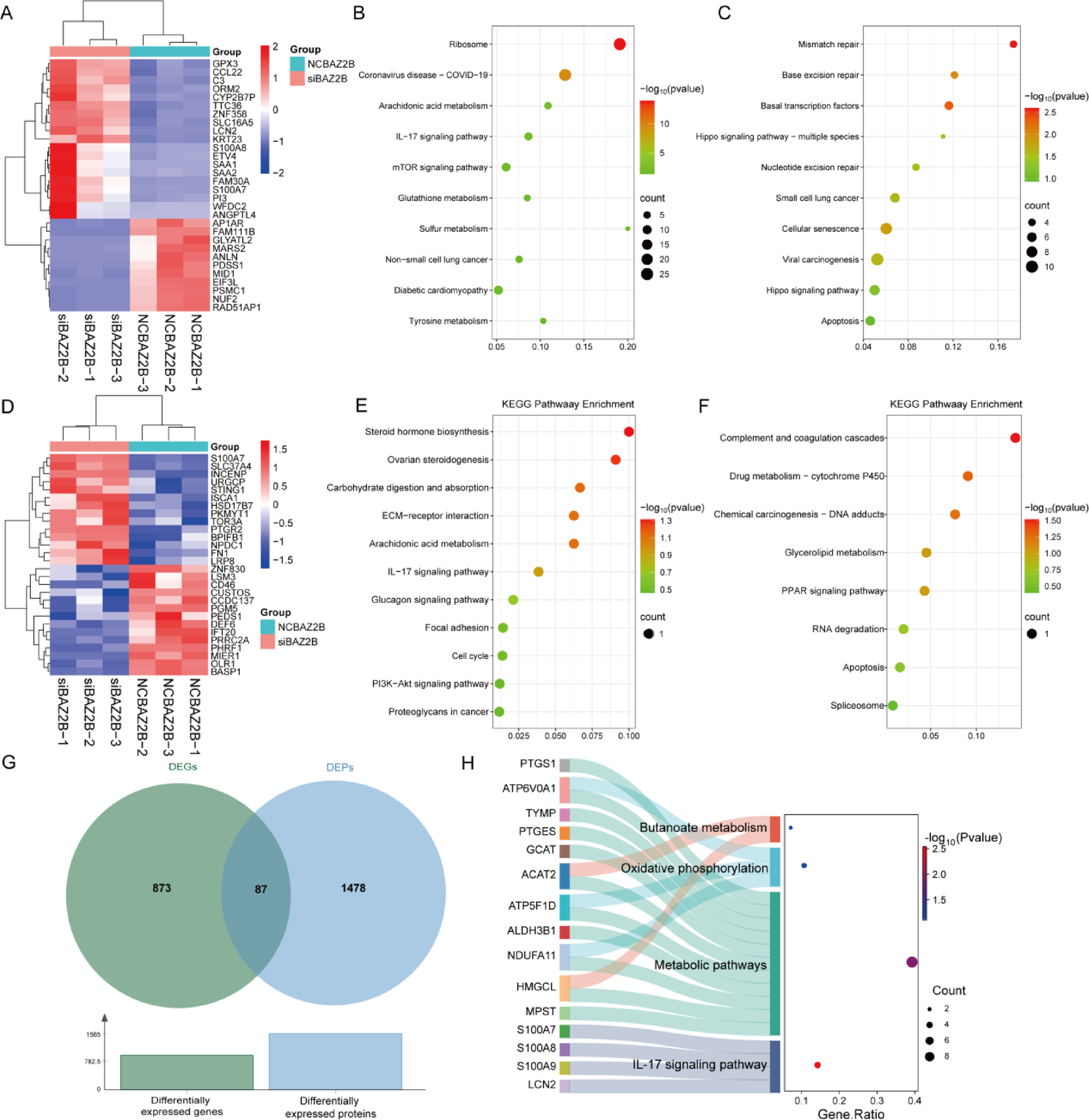

Kanehisa Laboratories. (D–F) Proteomic analysis: Heatmap of differentially expressed proteins (D), KEGG pathway dynamics (E,F). (G) Venn diagram illustrating 68 overlapping DEGs between transcriptomic and proteomic datasets. (H) Sankey diagram visualizing regulatory associations between multi-omics data in key pathways (e.g., PI3K-AKT signaling, RNA transport), constructing a multi-dimensional framework of BAZ2B’s transcriptional-translational coupling in cellular functions.
Multi-omics analysis of BAZ2B. (A) Heatmap of differentially expressed genes (DEGs) showing transcriptomic profiles. (B,C) Significantly enriched upregulated and downregulated KEGG pathways (reproduced from the KEGG pathway database, including but not limited to: https://www.kegg.jp/entry/map04657, https://www.kegg.jp/entry/map04150, https://www.kegg.jp/entry/map04210, https://www.kegg.jp/entry/map04110, https://www.kegg.jp/entry/map04151, https://www.kegg.jp/entry/map03410). (C)
