Fig. 3
From: Parametric study of piercing force and surface quality in elastomer-assisted tube piercing

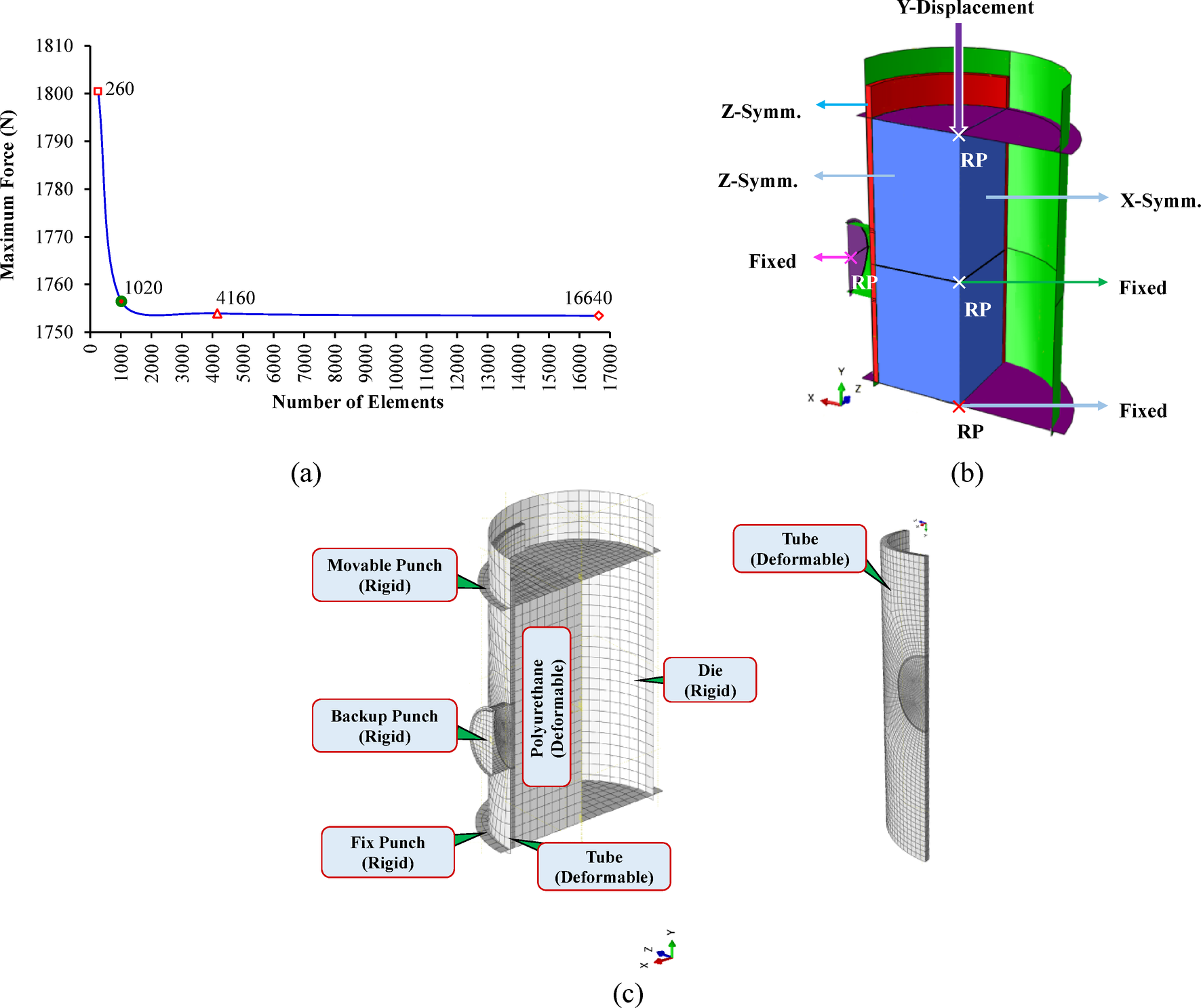

(a) Mesh independence analysis, (b) Geometric model of the process components along with the applied boundary conditions in the simulation, (c) Three-dimensional view of the meshed die components and tube.
