From: Parametric study of piercing force and surface quality in elastomer-assisted tube piercing

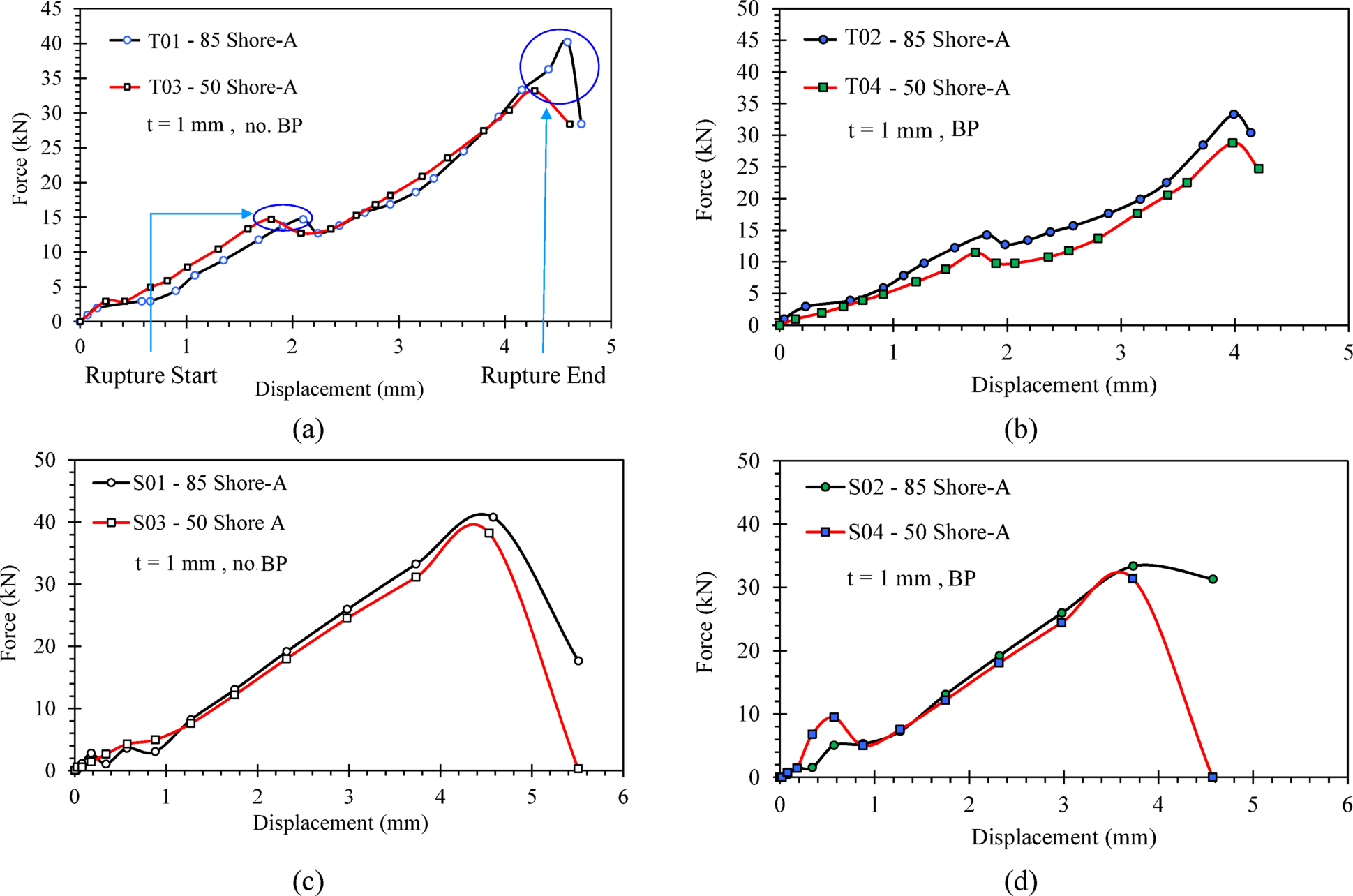

Effect of elastomeric tool hardness on the force-displacement curve for a 1 mm-thick tube, (a) Experimental tests (without counter punch), (b) Experimental tests (with counter punch), (c) Simulation tests (without counter punch), and (d) Simulation tests (with counter punch).
