Fig. 7
From: Parametric study of piercing force and surface quality in elastomer-assisted tube piercing

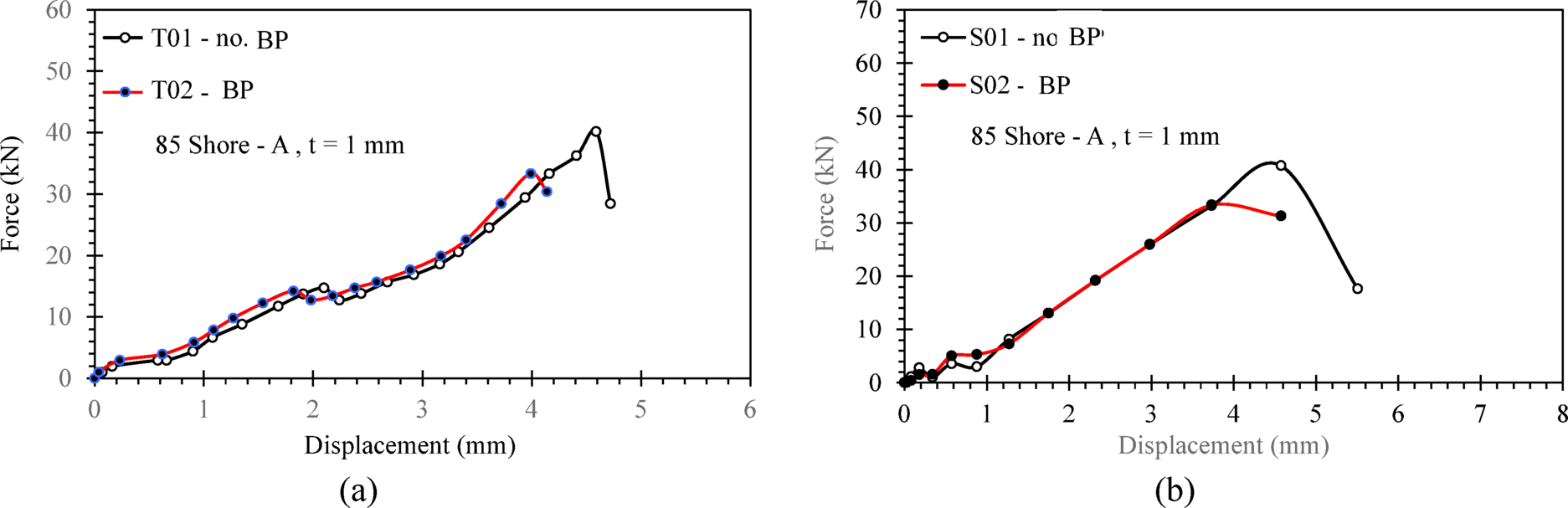

(a) Effect of the counter punch on the experimental force-displacement curve, comparing tests T01 and T02, (b) Effect of the counter punch on the simulated force-displacement curve, comparing tests S01 and S02.
