Fig. 20
From: Rebar free high performance ductile concrete beams powered by CFRP and post-tensioning

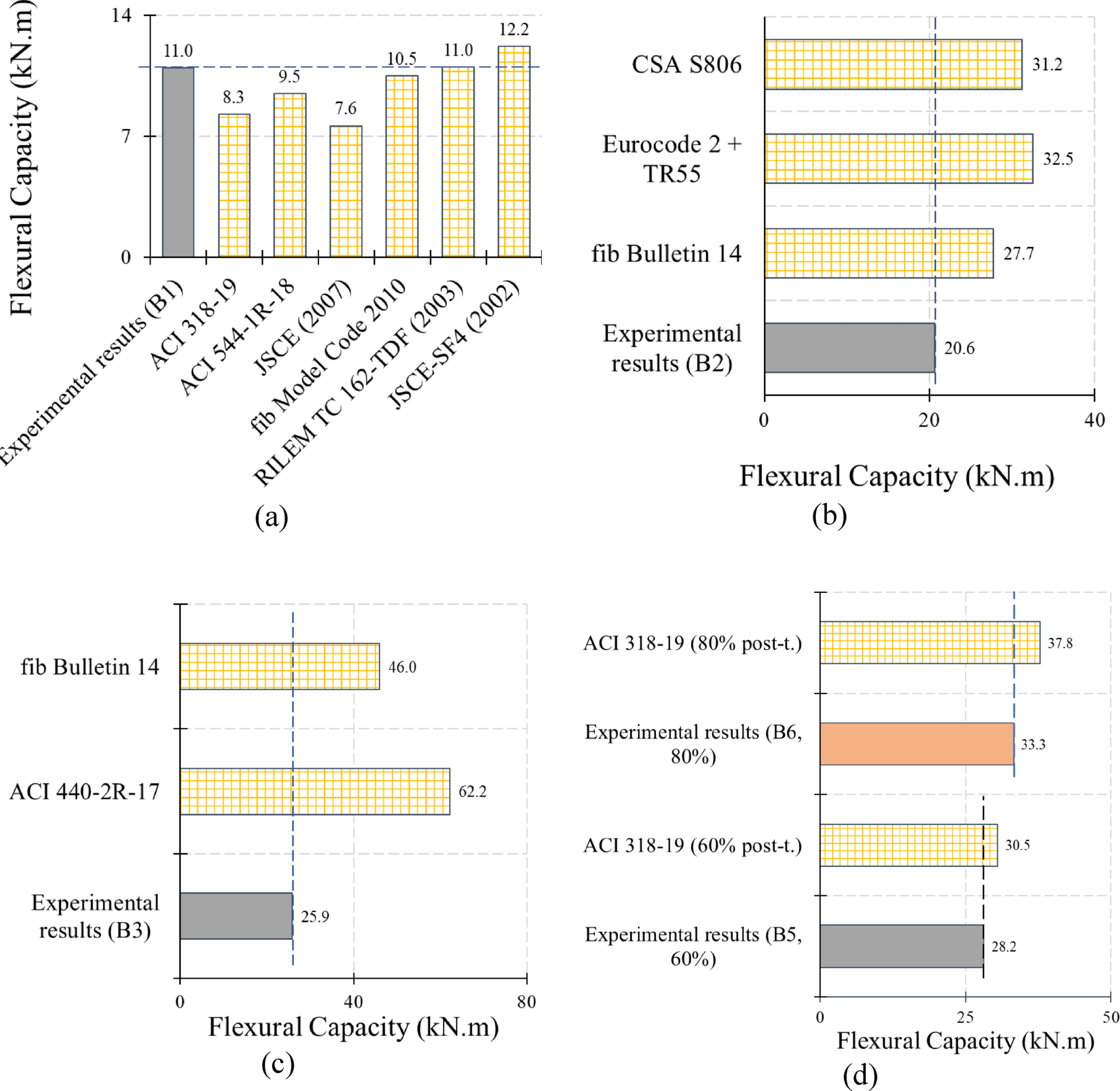

Performance of predicting equations to determine flexural capacity: (a) reference HPDC beam; (b) single-layer CFRP-strengthening; (c) two-layer CFRP-strengthening; (d) post-tensioning methods.
