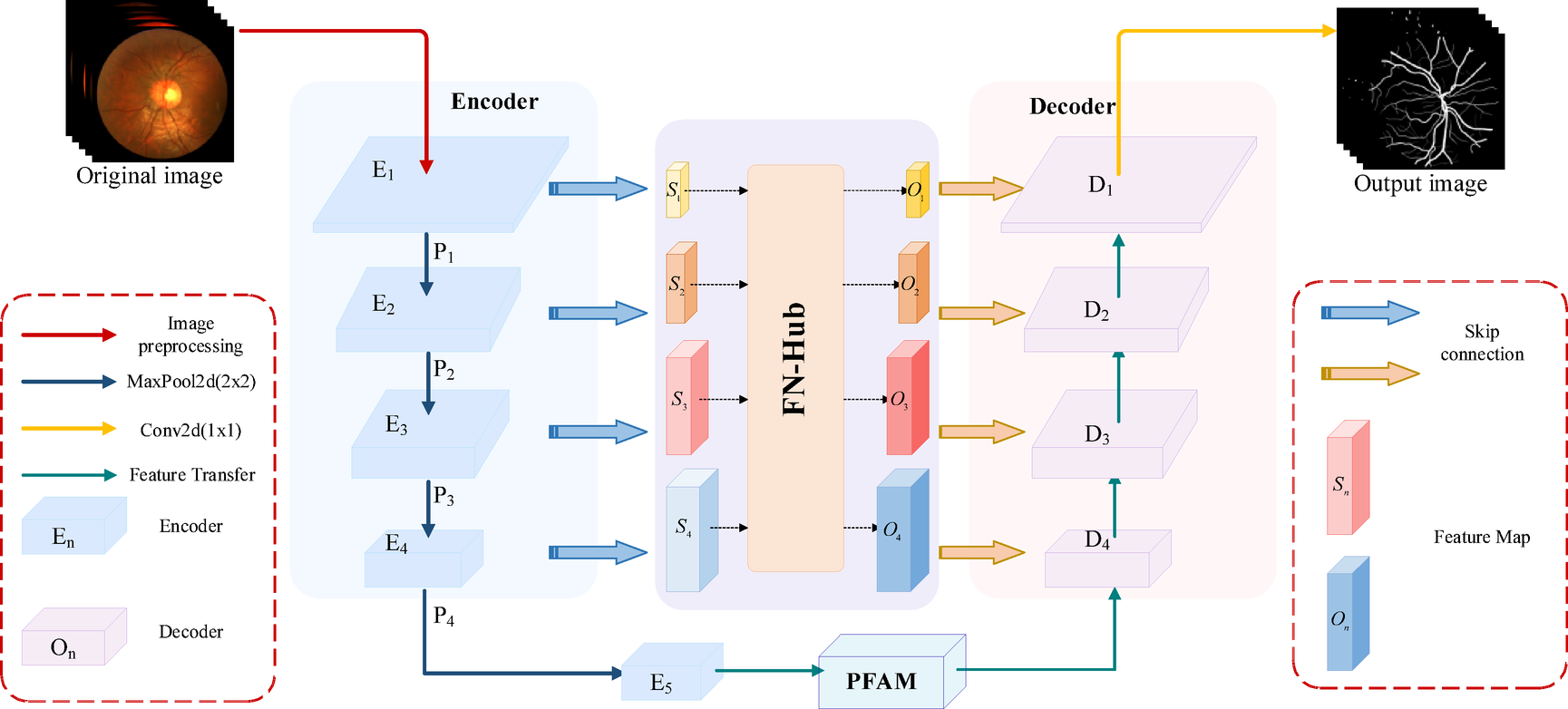

Fig. 2
From: Enhanced feature dynamic fusion gated UNet for robust retinal vessel segmentation
Overview of the EFDG-UNet Architecture.the network is designed for medical image processing, specifically for extracting vascular structures from retinal images. The Encoder compresses the input image into feature representations, the FM-Hub manages and distributes these features, and the Decoder reconstructs the vascular tree from these features.
